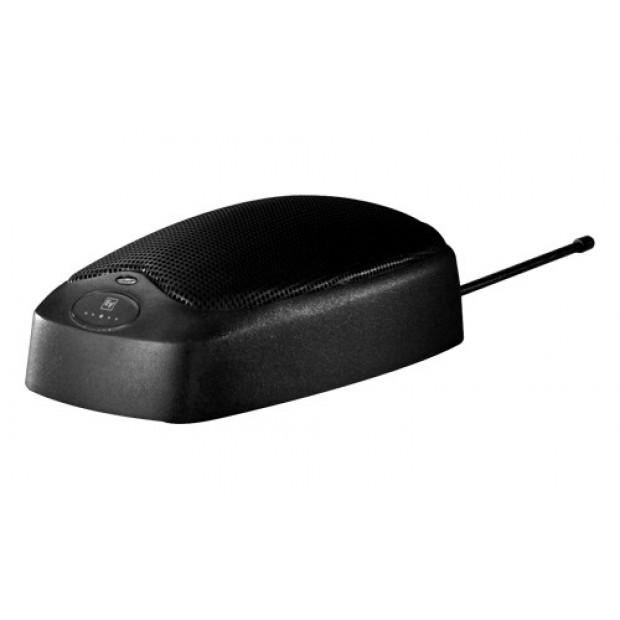

The PC Boundary Satellite is a low profile multi-pattern microphone. This low-profile foundation hides PC Boundary Satellite’s most powerful feature space for a wireless transmitter. Turn the microphone over to reveal the specially designed compartment for housing an Electro-Voice or Telex bodypack transmitter. Connect the microphone to the bodypack, set-up the wireless channel, and place the PC Boundary Satellite anywhere an easy-to-use microphone is required. No longer do you have to cut holes in tables, run long cables, or compromise the architectural integrity of an installation. With the PC Boundary Satellite, anything is possible.
The PC Boundary Satellite features an EV PolarChoice multi-pattern microphone. The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver". With one non-directional and three directional polar patterns available, the PolarChoice microphone is ideal for virtually any installation. Of particular interest is the figure 8 pattern that allows miking people on opposite sides of a table with only one microphone, while providing a dramatic reduction of ambient room noise.
The PC Boundary Satellite is designed to take acoustic advantage of placing a microphone close to a "boundary" such as a conference table. Advantages include reduced phase cancellation and up to 3dB reduction in ambient noise. It also includes a switchable high pass filter and high-performance vibration damping pads on the bottom to greatly reduce any vibration-induced noise pick-up.
| Generation Element | Dual condenser, back electret |
|---|---|
| Frequency Response | 50 Hz to 20,000 Hz |
| Polar Patterns | Omnidirectional, Cardioid, Supercardioid, Figure 8 |
| Switches and Controls | Top mounted momentary membrane switch Push on/off, or push-to-mute selector |
| Sensitivity, Open Circuit Voltage, 1 kHz | 17.8mV/Pascal |
| Clipping Level (1% THD) | >130 dB SPL |
| Equivalent Noise | 98 dB |
| Output Impedance, 1 kHz | 1000 ohms |
| Power Requirements | 5 VDC, supplied by optional bodypack |
| Current Consumption | |
| Polarity | Pin 2 positive, referenced to pin 1, with positive pressure on the diaphragm |
| Dimensions without Bodypack (H x W x D) | 2" (50.3 mm) x 5.5" (140.8 mm) x 3.2" (81.2 mm) |
| Net Weight without Bodypack | 0.28 lbs (128 g) |
