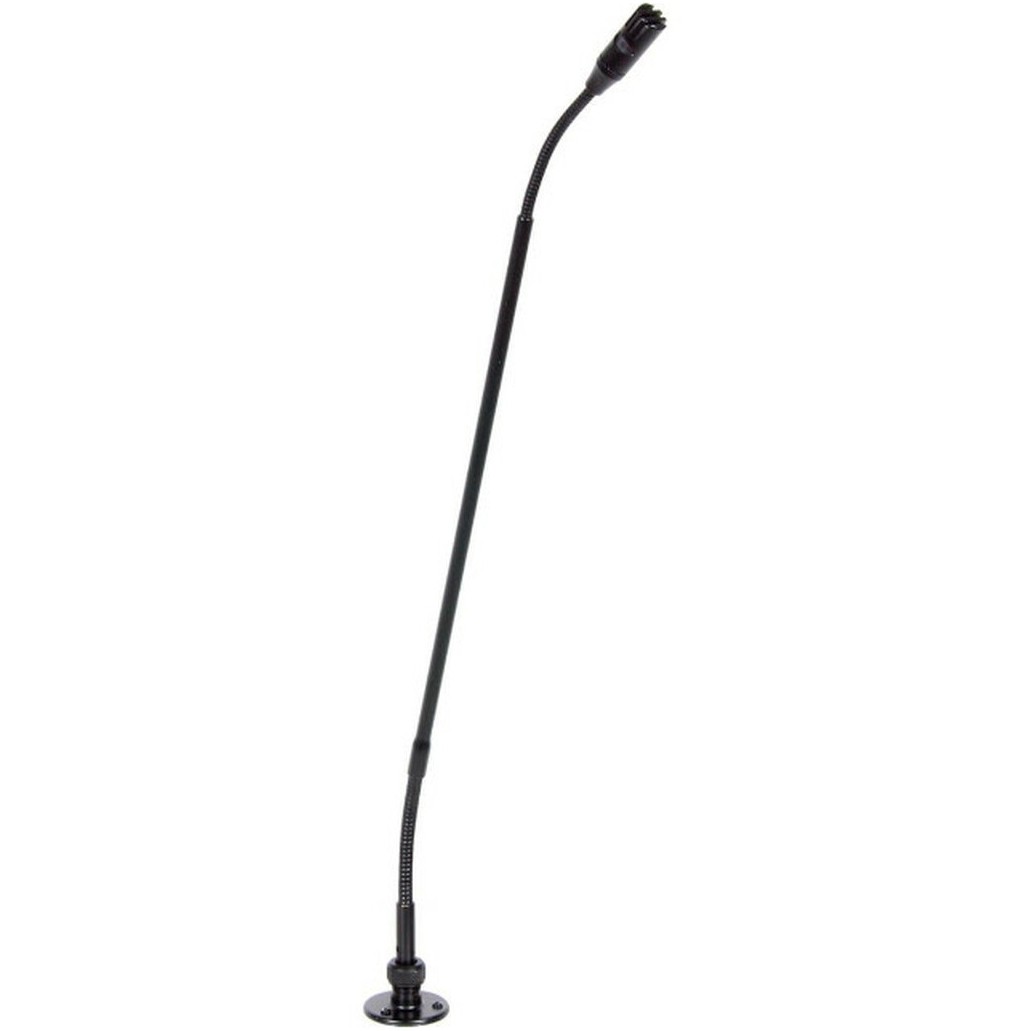

The PC-12/FL and PC-18/FL are multi-pattern miniature gooseneck podium microphones designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”. With three directional and one nondirectional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the front mounted rotary control on the external electronics module. The PC- 12/FL and PC-18/FL are acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use.
The PC-12/FL and PC-18/FL microphones can be mounted in several different ways. They can be mounted on any fixture that has a standard 5/8" x 27 microphone thread (such as a microphone stand), or they can be mounted to any flat surface using the included threaded flange. Additionally, they can be mounted using the included shock mount and adapter. The cable can be easily changed to exit from either the side, or through the bottom of the microphone.
The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics module is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The electronics module can also be surface mounted using the included mounting clips.
| Generation Element | Dual condenser, back electret |
|---|---|
| Connector Type | 3-pin XLR |
| Frequency Response | 50 Hz to 20,000 Hz |
| Polar Patterns | Omnidirectional, Cardioid, Supercardioid, Hypercardioid |
| Sensitivity, Open Circuit Voltage, 1 kHz | 5.6 mV/Pascal |
| Clipping Level (1% THD) | >135 dB SPL |
| Equivalent Noise | |
| Dynamic Range | >109 dB |
| Output Impedance, 1 kHz | 200 ohms |
| Power Requirements | Phantom, 12 – 52 VDC |
| Current Consumption | < 8 mA with P12 supply |
| Polarity | Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm |
| Color | Nonreflecting black |
| Head Diameter | 0.58" (14.6 mm) |
| Electronics Module Diameter | 0.79" (20 mm) |
| Connector Diameter | 0.75" (19 mm) |
| Lower Section | 0.13" (7.9 mm) |
| Upper section | 0.25" (6.4 mm) |
| Gooseneck Length | 12.3" (313.2 mm) |
| PC-12/FL | 12.3" (313.2 mm) |
| PC-18/FL | 18" (495.1 mm) |
| PC-12/FL | 3.9 oz (111 g) |
| PC-18/FL | 4.2 oz (119 g) |
