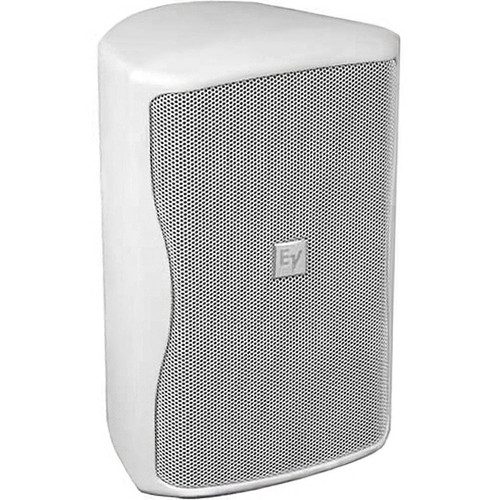

The Electro-Voice ZX1I-100TW is a high-performance 8" 2-way 800W loudspeaker in white with a 70V/100V transformer. It offers wide 100° x 100° coverage, a weatherized composite enclosure, and a QuickSAM Strong-Arm Mount for secure indoor or outdoor installation.

Description

Electro-Voice ZX1I-100TW 8-Inch 2-Way 70V/100V Indoor Outdoor Composite Loudspeaker

The ZX1I-100TW is a premium 8" 2-way full-range composite loudspeaker engineered for superior performance in 70V/100V distributed audio systems. Delivering up to 800W peak power, this versatile system combines high-output clarity with long-term durability, making it ideal for both indoor and outdoor installations in venues such as hospitality spaces, retail areas, houses of worship, and public facilities.

Featuring a weatherized EV8L 8" woofer and a DH2005 1" titanium compression driver, the ZX1I-100TW provides smooth, balanced audio with full-bandwidth protection for reliable long-term operation. Its 100° x 100° rotatable horn ensures wide, even coverage, while the velocity-compensated port design enhances low-frequency performance without distortion or port noise.

The sleek white ABS composite enclosure with a multilayer grille and hydrophobic cloth offers excellent weather resistance, ensuring dependable performance in challenging conditions. The included QuickSAM heavy-duty Strong-Arm Mount allows fast, secure installation and precise aiming, while the integrated transformer with Automatic Saturation Compensation (ASC) prevents low-frequency distortion and maintains consistent sound quality across multiple loudspeakers.

Features

  • 8" 2-way full-range composite loudspeaker in white
  • 800W peak/200W continuous power handling
  • Built-in 100W transformer for 70V/100V distributed systems
  • 100° x 100° rotatable Constant-Directivity horn for wide coverage
  • EV8L weatherized cone woofer and DH2005 1" titanium HF driver
  • Automatic Saturation Compensation (ASC) for distortion-free operation
  • Velocity-compensated port design enhances low-frequency response
  • Weather-resistant ABS enclosure with multilayer grille and hydrophobic cloth
  • QuickSAM heavy-duty Strong-Arm Mount included for secure, flexible installation
  • Ideal for indoor/outdoor venues, houses of worship, and commercial spaces

Specifications

Frequency Range (-10 dB) 48 Hz - 20 kHz
Frequency Response (-3 dB) 60 Hz - 20 kHz
Axial Sensitivity 92 dB (1W/1m)
Max Calculated SPL 121 dB
Rec. Hipass Frequency 40 Hz
Horizontal x Vertical Coverage 100° x 100°
Rated System Power 200W Cont 400W Prog. 800W Peak
LF Transducer EV8L, 8" (203 mm) Driver
HF Transducer DH2005, 1" (25.4 mm) Exit Compression Driver
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ohms
Minimum Impedance 6 Ohms
Transformer Taps 70V: 100W, 50W, 25W, 12.5W, 6.5W
100V: 100W, 50W, 25W, 12.5W
Connectors 4-Pin Phoenix Connector
Enclosure Material ABS resin
Suspension Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
Color White
Grille Polyester Powder Coated, 18GA Galvanized Steel
Dimensions (H x W x D) 18" (451 mm) x 11" (282 mm) x 10" (263 mm)
Net Weight 23 lbs (10.4 kg)
Shipping Weight 27 lbs (12.3 kg)
