Elmo HS-G3 Huddle Space 8 HDMI Input Collaboration Hub (Discontinued)

Part #:
2702
Model #:
HS-G3
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The ELMO Huddle Space Collaboration Hub with mic input, USB and audio output, remote control operation, mass storage capability and HDBaseT output is a perfect solution for 1:1 and BYOD classrooms. It’s a simple 8 HDMI input connection source equipped with video and audio recording allowing you to connect any HDMI compatible device.

Description

Why Create a Collaborative Classroom?

Today’s college and career readiness standards reflect the importance of collaboration skills, and both colleges and employers are looking for individuals with these skills. Therefore, having students work in teams to research a topic or solve a problem and then present their findings within their group or to the class as a whole is becoming part of what we do inside the classroom to prepare students for the world. Collaborative learning doesn’t just benefit students. Teachers benefit as well. For instance, collaborative learning makes classroom management easier. When teachers assign tasks to students in groups, they can monitor progress by checking in on five or six different groups instead of 25 individual students. A collaborative classroom also allows teachers to cover more ground in the curriculum because each group can be assigned a different portion of a topic. Key Challenges to Digital Collaboration

The ELMO Huddle Space Collaboration Hub with mic input, USB and audio output, remote control operation, mass storage capability and HDBaseT output is a perfect solution for 1:1 and BYOD classrooms. It’s a simple 8 HDMI input connection source equipped with video and audio recording allowing you to connect any HDMI compatible device. HDBaseT supports the 100 Mbit/s version of Ethernet over twisted pair. This can provide Internet access, or enable televisions, stereos, computers and other CE devices to communicate with each other and access multimedia content, including video, pictures, and music stored on the local network.

Compatible With Any HDMI Device

The Huddle Space can accommodate any HDMI equipped device; iPad, Chromebook, Windows, Mac, Android, or even your favorite ELMO Doc Cam.

Seamlessly Switch Devices

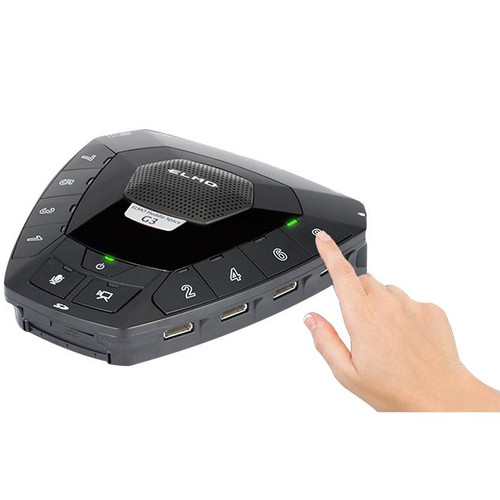

Switching from one device to another is as simple as pressing a button. Each input has a corresponding button and when a button is pressed, that user's screen is broadcast to the shared display.

Built-in Mic

A conferencing microphone on top of the unit captures the conversation happening as students are presenting and collaborating. This gives teachers additional insight into how the students are working together and the ability to review the work process later.

Optional Battery Pack

Make it Wireless Pair your Huddle Space with a battery attachment for extra portability. Also compatible with third party HDMI wireless transmitters to make your Huddle Space completely portable.

Features

Compatible with any device

The Huddle Space can accommodate any type of device; iPad, Chromebook, Windows, Mac, Android etc.

Seamless switching from one device to another

Switching from one presentation to another is as simple as pressing a button; each input has a corresponding button, and when a button is pressed, that student’s screen is broadcast to a shared display.

No drain on network resources

The Huddle Space doesn’t require any additional hardware on a school’s network, and broadcasting content from a student’s device happens over an HDMI cable instead of using Wi-Fi bandwidth.

Cost-effective

The Huddle Space is cost-effective compared to the competition, it also requires no updates, subscriptions or recurring fees.

Built-in assessment

A conferencing microphone array on the top of the unit captures the conversation happening as students are presenting and collaborating, giving teacher’s additional insight into how students are working together.

Specifications

Power Source DC12V (AC adapter AC100 ~ 240V)
Power Consumption 7.0W
Compatible Input Devices AV devices with HDMI output port such as a computer
Compatible Output Devices AV devices with various input ports such as a monitor, TV and computer
Input Terminal Mic In terminal 3.5 mm jack x 1 Monaural electret Condenser microphone
HDMI input terminal Type Ax 8
DC jack x 1

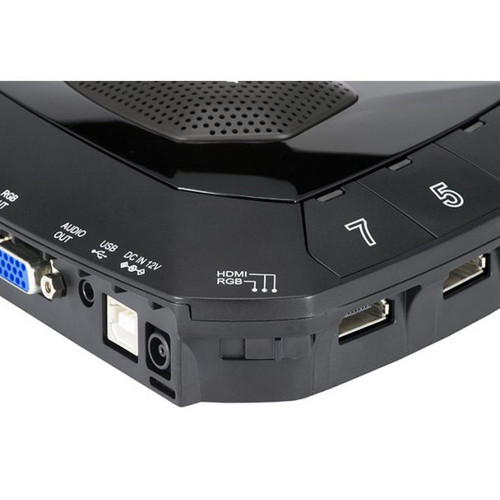

Output Terminal RGB output Mini Dsub 15P connector, female x 1
Power terminal for WHDI module Type A x 1
HDMI output terminal Type A x 1
Line Out terminal 3.5 mm stereo minijack x 1
HDBaseT output terminal (RJ45) x 1
External Control USB device (2.0 compliant) Type B receptacle x 1
Memory Interface SD card slot x 1
USB USB 2.0 compliant
High Speed (480 Mbps) / Full Speed (12 Mbps)
Self-power: No power supply from the USB bus
Remote Control (IR) pulse-position modulation method
Video Recording Format H.264/mp4
Still Image Recording Format JPEG
Operating Temperature 0~40℃
Humidity 30~85% (No condensation)
Dimensions (H x W x D) 1.71" (43.5 mm) x 6.52" (165.6 mm) x 6.77" (171.93 mm)
Weight 2.20 lbs (1 kg)

DOCUMENTS

In The Box

  • (1) Huddle Space
  • (1) AC Adapter
  • (1) AC Power Cable
  • (1) USB Cable
  • (2) HDMI Cable (TYPE A-TYPE A)
  • (2) HDMI Cable (TYPE A-micro)
  • (1) IR Wireless Remote Control
  • (1) Battery CR2025 (for Remote Control)
  • Warranty Card
  • Quick Start Guide
