Enersound TSB-10 10-Person Language Interpretation System

Part #:
TSB-10
Model #:
TSB-10
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Complete 10-person wireless language interpretation system for one foreign language. Ideal for small meetings, schools, houses of worship, courtrooms, training sessions, auditoriums, and more.

Description

The Enersound TSB-10 wireless language interpretation system can handle 1 foreign language and 10 participants. It is Ideal for small meetings, schools, houses of worship, courtrooms, training sessions, auditoriums, and more. This professional, high-quality FM system works in the 72-76 MHz frequency band and has a coverage area of up to 1,000 ft. It is reliable, easy to use, simple to set up, portable and lightweight.

By connecting the interpreter’s microphone to the transmitter in the system, it broadcasts the interpreter’s voice. The foreign-speaking audience uses the wireless receivers to listen to the message in their own language through the voice of the interpreter. It can also broadcast music or any audio signal.

The system has a unique integrated interpreter console function. This feature allows the interpreter to utilize the headset to listen to the source language without the need of an interpreter console or external headphone amplifier. The interpreter can also set the desired incoming audio level and momentarily silence their microphone for coughing or sneezing with the mute button. For more advanced interpreting functions, it can also be utilized with the Enersound IC-12 multi-channel interpreter console (sold separately) or with any other interpretation platform with analog audio outputs.

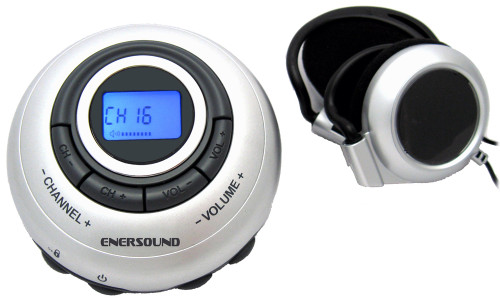

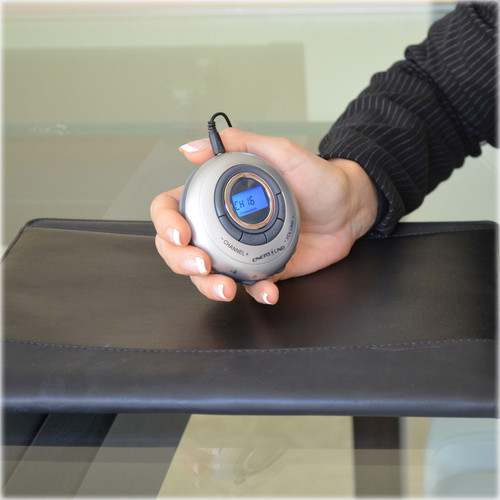

The included R-120 multichannel FM receivers for the audience are specifically designed for wireless multi-language simultaneous interpretation (also called simultaneous translation) and multi-channel assistive listening applications. Its attractive design, innovative technical specifications, and unique versatility make it the leading product in its field. The R-120 receiver has a digital LCD display with channel, low battery and volume level indicators. It also features a channel lock function. It is compatible with stereo earphones. There is nothing like the simplicity of the Enersound R-120 receiver! By pressing a single button you can switch frequencies that are strategically allocated.

Features

  • Multi-channel transmitter and receivers
  • 72-76 Mhz Frequency Band
  • 100% digitally tuned
  • Up to 1,000 ft coverage area
  • Expandable for up to 6 languages
  • Easy set-up and operation
  • Portable and lightweight
  • Superb sound quality
  • Innovative and attractive design
  • Robust engineering for maximum reliability and durability
  • Channel lock feature
  • LCD display on transmitter and receivers
  • Receiver with multiple carrying options:
    • Belt clip
    • Neck strap
    • Velcro arm-band
  • Direct access to channel selectors
  • Headphones included with receivers
  • Multiple inputs and connector types for speech, music or any other audio signals
  • Microprocessor controlled
  • Adjustable power output
  • Lifetime Exchange Warranty. See warranty information for more details

Specifications

R-120 Receiver
Number of Channels 20 programmable
Frequency Range FM 72.0 to 76.0 MHz
FM Deviation +/- 75 KHz
De-Emphasis 75 uS
Sensitivity 1.413 uV at 12 db SINAD
Signal to Noise Ratio 55 db at 100 uV
Audio Frequency Response 70 Hz to 15 khz
Audio Output Power 16 mW +16mW at 16 ohm
Audio Connector 3.5 mm stereo phone jack
Distortion THD 0.5%
Current Consumption 27 mA nominal
Battery 2 x AAA (1.5V x 2)
Accessories Included Stereo headphones, arm band, neck strap, belt clip
Dimensions (Dia x H) 3" (76 mm) x 1.22" (31 mm)
Weight without Batteries 65 g (2.3 oz)
Weight with Batteries 88 g (3.1 oz)
T-500 Transmitter
Power 100-240 VAC, 50-60 Hz, 3W
Operating Frequencies 72-76 MHz
RF Field Strength Does not exceed 80mV/m @ 3m
Nominal Range Up to 1000 feet (305 m)
Modulation FM, Selectable 75 kHz deviation max. or 25 kHz deviation max
Stability ± .005% over 0-50˚C
Pre-Emphasis 75 µS
Frequency Response 100Hz – 15kHz ±3dB
Distortion 1% Max. THD
Signal to Noise Ratio 69 dB
Dimensions Without Top Antenna Connector: 1.77" (45 mm) x 5.5" (140 mm) x 5" (127 mm)
With Top Antenna Connector: 2.36" (60 mm) x 5.5" (140 mm) x 5" (127 mm)
Weight Transmitter Only: 531 g (18.7 oz)
Boxed with Antenna and Power Supply: 990 g (35 oz)
System Weight 6.50 lbs (2.95 kg)

System Includes

  • (10) Enersound R-120 FM 20-Channel Receivers
  • (11) Enersound Double-ear Headphones
  • (1) Enersound T-500 Multi-Channel Transmitter
  • (1) ANT-500 Antenna
  • (1) PS-500 Power Supply
  • (1) Enersound MIC-300 Pro. Headband Microphone
