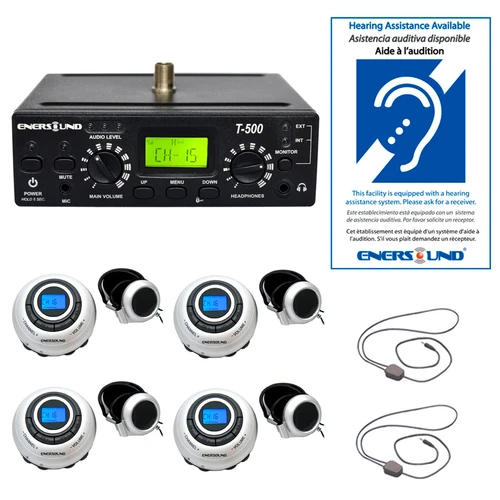

The Enersound ALS-4TP system is a multichannel solution (in the 72-76 MHz band) to meet the needs of the Americans with Disabilities Act (ADA) standards for accessible design. In addition to ensuring that public facilities are compliant; the system can also be used to improve comprehension by people who have difficulty hearing or understanding speech in various settings including meeting rooms, houses of worship, movie theatres, schools, public hearing rooms, and more. The audio is sent wirelessly straight to their ears, avoiding the degrading effects of noise and distance on speech intelligibility.
| R-120 Receiver | |
|---|---|
| Number of Channels | 20 programmable |
| Frequency Range | FM 72.0 to 76.0 MHz |
| FM Deviation | +/- 75 KHz |
| De-Emphasis | 75 uS |
| Sensitivity | 1.413 uV at 12 db SINAD |
| Signal to Noise Ratio | 55 db at 100 uV |
| Audio Frequency Response | 70 Hz to 15 khz |
| Audio Output Power | 16 mW +16mW at 16 ohm |
| Audio Connector | 3.5 mm stereo phone jack |
| Distortion | THD 0.5% |
| Current Consumption | 27 mA nominal |
| Battery | 2 x AAA (1.5V x 2) |
| Accessories Included | Stereo headphones, arm band, neck strap, belt clip |
| Dimensions (Dia x H) | 3" (76 mm) x 1.22" (31 mm) |
| Weight without Batteries | 65 g (2.3 oz) |
| Weight with Batteries | 88 g (3.1 oz) |
| T-500 Transmitter | |
| Power | 100-240 VAC, 50-60 Hz, 3W |
| Operating Frequencies | 72-76 MHz |
| RF Field Strength | Does not exceed 80mV/m @ 3m |
| Nominal Range | Up to 1000 feet (305 m) |
| Modulation | FM, Selectable 75 kHz deviation max. or 25 kHz deviation max |
| Stability | ± .005% over 0-50˚C |
| Pre-Emphasis | 75 µS |
| Frequency Response | 100Hz – 15kHz ±3dB |
| Distortion | 1% Max. THD |
| Signal to Noise Ratio | 69 dB |
| Dimensions | Without Top Antenna Connector: 1.77" (45 mm) x 5.5" (140 mm) x 5" (127 mm) With Top Antenna Connector: 2.36" (60 mm) x 5.5" (140 mm) x 5" (127 mm) |
| Weight | Transmitter Only: 531 g (18.7 oz) Boxed with Antenna and Power Supply: 990 g (35 oz) |
