Properly protect the financial information of customers and comply with HIPAA privacy rules and prevent identity theft
Financial institutions have a responsibility to protect their customers' personal and financial information under the Gramm-Leach-Bliley Act (GLBA). This cost-effective speech privacy sound masking system accomplishes both speech confidentiality and customer security by adding a low-level unobtrusive background sound that is specifically engineered to reduce the intelligibility of speech. Mask conversations from being overheard in bank lobbies and open floor offices, financial advisor offices, CPA offices, conference rooms, call centers and other financial environments reducing the risk of negligent disclosure. If the space is too quiet, there's a high possibility that the clients' personal information can be overheard.
Financial call centers also have privacy and productivity issues due to their environment with distracting and unwanted noise levels. Reduce the intelligibility of speech and increase customer privacy while improving worker performance by reducing conversational distractions and creating a pleasant and comfortable environment.
Keep Private Meetings Private
The Qt Conference Room Edition from Cambridge Sound Management is a cost-effective solution specifically designed to protect the speech privacy of conversations in conference and boardrooms.
All-in-One Solution for Conference Room Privacy

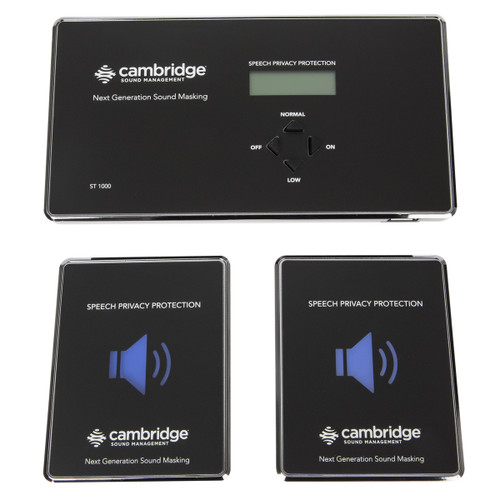

The Qt Conference Room Edition consists of a control module, two lighted privacy signs, and 12 direct-field sound masking emitters. When a room occupant turns on the control module inside of the room, it powers the sound masking emitters placed in the ceiling. The emitters add a low level of background sound making human speech less intelligible. Lighted privacy signs indicate the system is running, and let room occupants know their conversations are being protected. The entire system is GreenSpec listed, consuming less than 7 watts of power. The Qt Conference Room system can be turned on and off as needed - or left running at all times.
Easy to Retrofit into Existing Spaces

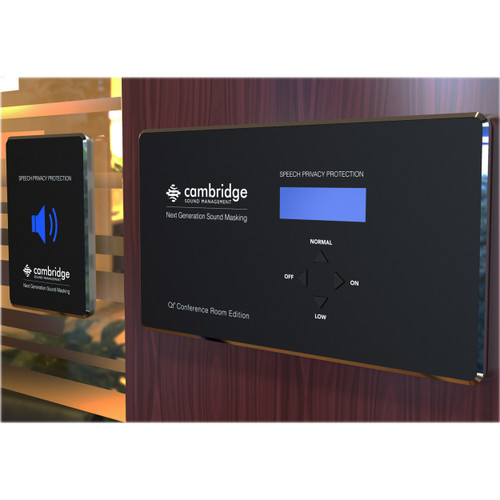

Often overlooked in conference room design and construction is the potential for private conversations to travel easily under, over, or even through walls and doors. In fact, according to a recent study, fifty-three percent of support staff workers have overheard confidential conversations at work. Install the Qt Conference Room Edition today to ensure your private meetings remain private. Privacy signs can be surface mounted, glass mounted, or mounted into a gang box, easily blending in with modern office decor.
| Control Processor/Privacy Signage | |
|---|---|
| Sound Masking Frequency Response | 200 Hz -6,300 Hz |
| Music / Paging Frequency Response | 200 Hz to 10,000 Hz |
| Masking Min - Max SPL | 30 dBA to 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| User Adjustable Equalization | None - Internally Fixed Masking Spectrum |
| Non Correlated Masking Sources | 4 Masking Sources |
| Number of Masking Zones | 1 Zone - (2 Cable Runs per Zone) |
| Number of Audio Inputs | 1 Audio Input - (Stereo or Mono) |
| Audio Input Level | +4 dBu (2 Volts RMS Max) |
| Audio Input Impedance | 5000 Ω |
| Audio Input Connector | Captive Screw Terminal (Balanced / Unbalanced) |
| Remote Control Function | Quantity 1 - Contact Closure Input (Normally Open) / Qty 1 - 5Vdc Logic Status Output |
| Remote Control Connector | Captive Screw Terminals |
| Minimum Output Impedance | 7Ω per channel |
| Power Input | Captive Screw Terminal & Coax Power Plug (center pin positive) |
| Privacy Sign Connections Controller | Qty 2 - Captive Screw Terminals - 5Vdc Output @75ma (confirm sign power draw) |
| Privacy Sign Connections Sign | Qty 1 - Spring Loaded Push Terminals - 5 Vdc input @ 75ma current draw |
| Output Connections | RJ45 x Quantity 2 (8 Conductor) |
| Masking Level Adjustment | Four Front Panel Buttons w/ LCD Display - 0.5 dB steps |
| Masking Ramp Times | 0 to 120 Seconds - up and down ramp times are independent (Front Panel / Remote Control) |
| Audio Input Level Adjustment | Four Front Panel Buttons w/ LCD Display - 1 dB steps |
| Setup Menu Access | Four Front Panel Buttons w/ LCD Display |
| Emitter / Device Capacity | 60 Qt Emitters per Run - 120 Qt Emitters Total |
| Maximum Emitter Cabling Distance | 1000ft (300 meters) per cable run |
| Maximum Power Consumption | 7 Watts @ 24 VDC |
| Power Supply Operating Voltage | Input: 100 - 240 VAC @ .6 Amp Output: 24 VDC @ 1.0 Amp |
| Included Control Processor Accessories | Power Supply / ACT Hole Saw / Box Adapter Plate (4-Gang US - 3- Gang UK/EU) / ST-1000 Back Box |
| Included Privacy Sign Accessories | Qty 2 - Single Gang Electrical Enclosure Backing Plate / Qty 2 - Glass Finishing Plate with Adhesive Strips |
| Firmware Update | Yes - Integrated USB Connector |
| Controller Mounting | Wall Mount - (Back plate included) / Electrical Box (US/UK/EU Adapter Included) / Supplied Backbox |
| Privacy Sign Mounting | Single Gang Electrical Enclosure (North American Nema or EU/UK types) / Self Adhesive Strips |
| Control Processor Color | Black |
| Privacy Sign Color | Black w/ Blue LED |
| Operating Temperature Range | 40°F to 90°F (4°C to 32°C) |
| Certifications | FCC Part 15 RoHS Compliant CE US STD 60065 CAN/CSA STC C22 2 60065 ETL Listed Green Spec Listed |
| Privacy Sign Dimensions (H x W x D) | 0.19" (4.826 mm) x 3.5" (88.9 mm) x 4.5" (114 mm) |
| Control Processor Dimensions (H x W x D) | 0.875.0" (22.2 mm) x 7.0" (177.8 mm) x 3.5" (88.9 mm) |
| Weight | Control Module: 0.7 lbs (300 g) Privacy Signs: 0.1 lbs (50 g) |

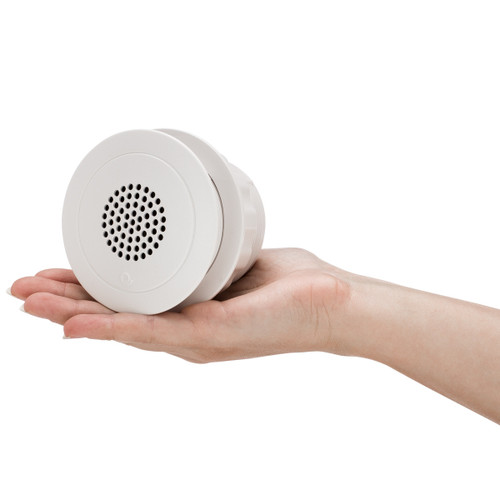

| Qt-Emitter | |
| Sound Masking Frequency Response | 200 Hz - 10,000 Hz |
| Music / Paging Frequency Response | 200 Hz - 10,000 Hz (-10 dB) |
| Masking Min - Max SPL | 30 dBA - 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| Nominal Impedance | 3600 Ω |
| Nominal Dispersion | 170 degrees conical / half space |
| Connections | Input / Output - RJ45 Modular Jack |
| Channel Selection | Four Channel Auto Sequencing and Repeating |
| Selectable Attenuation | 0 dB, -3 dB, -6 dB, -9 dB |
| Cabling | Category UTP Cabling (8 conductor) |
| Included Accessories | Acoustic Ceiling Tile Mounting Ring - UTP Cable (16ft/30ft) |
| Loudspeaker Type | Passive w/ Transformer |
| Maximum Power Consumption | .110 Watts |
| Privacy Sign Cabling Type | CMP (Plenum) 20AWG 2 Conductor Cable |
| Enclosure | Sealed |
| Color | White (Optional Black Caps and Accessories) |
| Certifications | UL 2043 |
| Cabling | Qty 1 - 50ft Emitter Cable / Qty 7 -16ft Emitter Cables / Qty 2 - 50ft Privacy Sign Cables - Included in Kit |
| Emitter Cabling Type | CMP (Plenum) UTP Twisted Category 3 Cable |
| Driver Dimensions (Dia) | 1.25" (32 mm) |
| Emitter Dimensions (H x Dia) | 2.5" (64 mm) x 3.25" (83 mm) |
| Weight | 0.35 lbs (0.159 kg) |
