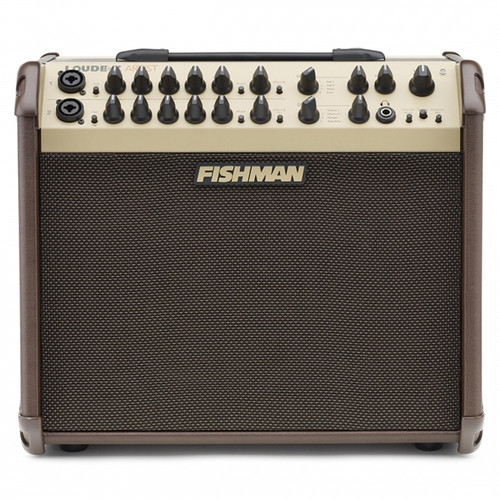

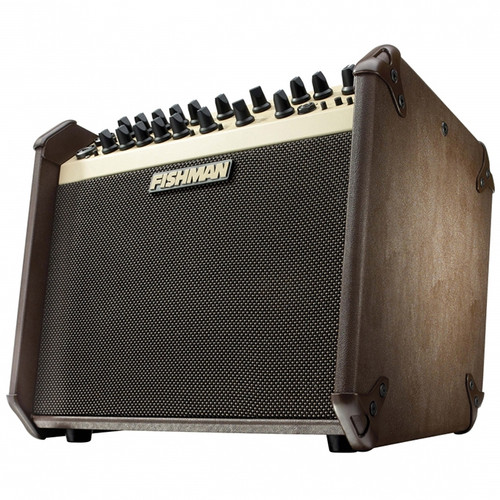

The Loudbox Artist packs 120 watts of ultra-clean, bi-amplified acoustic power, and enhanced features into an incredibly lightweight and portable package. It features two versatile channels that can each accept an instrument or mic input. Fishman's legendary tone and feedback-fighting controls, plus a dual-effects section, make the Loudbox Artist a great choice for the seriously active musician.
| Input Impedance | 1/4" Input: 5MOhm XLR Input: 2.4kOhm Balanced Aux Input (stereo): 10kOhm |
|---|---|
| Phantom Power | XLR Input: 24VDC / 1.2kOhm DC source impedance per pin |
| Tone Controls and Anti-Feedback | Low: ±12.5dB @ 50Hz (resonant) Mid: ±10.5dB @ 750Hz (resonant) High: ±12.5dB @ 15kHz (shelving) Anti Feedback Range: -14dB @ 15Hz – 330Hz (Hi-Q resonant notch) |
| Channel 1 & 2 D.I. Output | Output Impedance: 440Ohm balanced Phantom power tolerant, ground isolated |
| Channel 1 & 2 Effects Sends | Output Impedance: 2.2kOhm Operating Level -10dBV Nominal |
| Channel 1 & 2 Effects Returns | Input Impedance: 28k Ohm Input Voltage -10dBV Nominal |
| Mix D.I. Output | Output Impedance: 600Ohm balanced Phantom power tolerant, ground isolated |
| Speaker System | |
| Woofer | 8" paper cone, acoustic suspension |
| Tweeter | 1" cloth dome, neodymium magnet |
| Tweeter Level | Up to 6dB cut |
| Crossover | 3.5kHz (Bi-amplified with active crossover) |
| Baffle Angle | 10 Degrees |
| Rated Power | |
| Cumulative | 120Wrms |
| Woofer Amp | 100Wrms continuous |
| Tweeter Amp | 20Wrms continuous |
| SPL @ 1 Meter | 113dB SPL |
| Frequency Response | 80Hz – 20kHz (-4dB) |
| Power Consumption | 150W max |
| Dimensions (H x W x D) | 13.5" (343 mm) x 15.5" (394 mm) x 11.5" (292 mm) |
| Weight | 25.5 lbs (11.6 kg) |
