The Loudbox Performer is Fishman's most powerful acoustic amplifier, allowing you to be heard in any situation — solo or ensemble. The Loudbox Performer features 180 watts of transparent bi-amplified acoustic sound and two versatile input channels that accept both 1/4" and XLR sources for instruments and microphones. Each channel includes Fishman’s renowned 3-band EQ, feedback-fighting controls, and a new effects section for more tonal options than ever before.

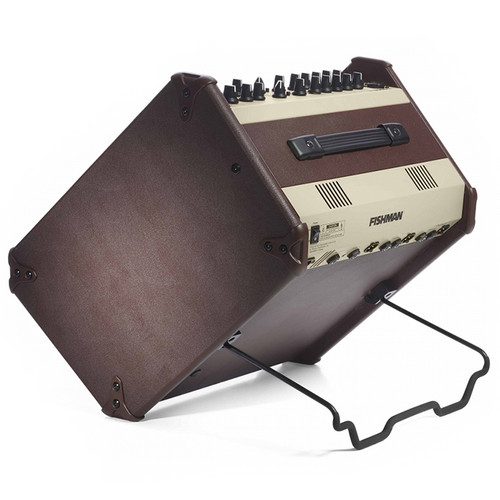

The dedicated midrange control provides enhanced detail and note definition over conventional 2-way designs. An improved, integrated kickstand design allows the Loudbox Performer to be tilted back 50º for better sound projection at short range.
| Input Impedance | 1/4" Input: 5MOhm XLR Input: 2.4kOhm Balanced Aux Input (stereo): 10kOhm |
|---|---|
| Phantom Power | XLR Input: 24VDC / 1.2kOhm DC source impedance per pin |
| Tone Controls and Anti-Feedback | Low: ±12.5dB @ 50Hz (resonant) Mid: ±10.5dB @ 750Hz (resonant) High: ±12.5dB @ 10kHz (shelving) Anti Feedback range: -14dB @ 15Hz – 330Hz (Hi-Q resonant notch) |
| Channel 1 & 2 D.I. Output | Output Impedance: 440Ohm balanced Phantom power tolerant, ground isolated |
| Channel 1 & 2 Effects Sends | Output Impedance: 2.2kOhm Operating Level: -10dBV Nominal |
| Channel 1 & 2 Effects Returns | Input Impedance: 28k Ohm Input Voltage: -10dBV Nominal |
| Mix D.I. Output | Output Impedance: 440Ohm balanced Phantom power tolerant, ground isolated |
| Speaker System | |
| Woofer | 8" paper cone, acoustic suspension |
| Midrange | 5" poly cone, acoustic suspension |
| Tweeter | 1" cloth dome,neodymium magnet |
| Tweeter Level | Up to 6dB cut @ 10kHz |
| Crossover | Bi-amplified with active/passive hybrid crossover500Hz, active; 3.5kHz, passive |
| Baffle Angle | 10 Degrees |
| Rated Power | |
| Cumulative | 180Wrms |
| Woofer Amp | 120Wrms continuous |
| Mid/Tweeter Amp | 60Wrms continuous |
| SPL @ 1 Meter | 114dB SPL |
| Frequency Response | 80Hz – 20kHz (-4dB) |
| Power Consumption | 200W max |
| Dimensions (H x W x D) | 18.2" (462 mm) x 15.8" (401 mm) x 11.5" (292 mm) |
| Weight | 29.4 lbs (13.3 kg) |
