The Prefix Plus-T features ultra-quiet electronics and Volume, Bass, Treble and semi-parametric Contour controls. It also offers a Brilliance control, Phase switch and Notch filter to help fight feedback. In addition, the built-in chromatic tuner can be used without plugging in the guitar.

Description

The Prefix Plus-T features ultra-quiet electronics and Volume, Bass, Treble and semi-parametric Contour controls. It also offers a Brilliance control, Phase switch and Notch filter to help fight feedback. In addition, the built-in chromatic tuner can be used without plugging in the guitar.

Features
  • Fishman quality, reliability and performance
  • Volume control as well as bass, treble, brilliance control, and a wide-range semi-parametric EQ to isolate certain frequencies and boost or cut them as needed
  • Feedback-fighting notch filter and phase switch
  • Onboard chromatic tuner can be used without plugging in the guitar
  • Brilliance slider
  • Low battery indicator
  • Unique pivot design for instant 9-Volt battery access
  • System includes an Acoustic Matrix Undersaddle Pickup and Switchjack Stereo Endpin Jack
  • Pickup available in wide, narrow or split formats
  • Professional installation is recommended

Specifications
Nominal Input Level -20dBV
Input Impedance 20M Ohm
Output Impedance Less than 3.5k Ohm
Nominal Output Level -12dBV
THD Less than .04 %, -20dBV input
Noise Floor -97dBV
Dynamic range 104dB
Battery Life 150hrs. (tuner off)
Notch Filter Range 30Hz – 300Hz (-15dB)
Bass control frequency 60Hz
Treble control frequency 10kHz
Contour control frequency 250Hz – 3kHz; Q = 0.5
Brilliance control frequency 10kHz; Q = 0.5
Dimensions 2.46" (62.5 mm) W x 4.02" (102.25 mm) H

Related Products

Fishman Prefix Pro Blend Onboard Preamp

Fishman Prefix Pro Blend Onboard Preamp

The Fishman PREFIX PRO BLEND is an Onboard Preamp, it features similar to the Prefix Plus series, on a smaller bezel that occupies 1/3 less space on the guitar. An excellent fit on slim-bodied...
MSRP: $493.99
$369.95

Usually arrives in 5-9 business days.

MSRP: $493.99
$369.95
Choose Options
Fishman PRO-PLT-201 Platinum Pro EQ/DI Analog Preamp Fishman PRO-PLT-201 Platinum Pro EQ/DI Analog Preamp

Fishman PRO-PLT-201 Platinum Pro EQ/DI Analog Preamp

Completely redesigned from the ground up, the all-analog Platinum Pro EQ universal instrument preamp delivers incredibly accurate sonic detail for any acoustic instrument. A discrete, high-headroom...
MSRP: $439.99
$329.95

Usually arrives in 5-9 business days.

MSRP: $439.99
$329.95
Add to Cart The item has been added
ART USB Phono Plus ART USB Phono Plus Project Series Phono Preamp and Audio Interface

ART USB Phono Plus Project Series Phono Preamp and Audio Interface

ART USB Phono Plus Phono Preamp and Audio Interface The USB Phono Plus is the ideal solution for transferring any highly prized vinyl collection to your computer or laptop. It is also the ideal high...
MSRP: $143.00
$99.99

Usually arrives in 5-9 business days.

MSRP: $143.00
$99.99
Add to Cart The item has been added
Sold Out
Rolls VP29 Phono Preamp (Discontinued) Rolls VP29 Phono Preamp (Discontinued)

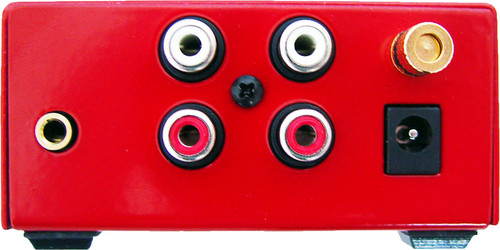

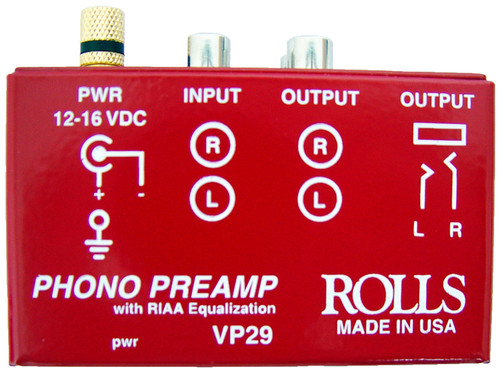

Rolls VP29 Phono Preamp (Discontinued)
