Fitness Audio System with 4 P115 15" Passive PA Speakers, MX9 9-Channel Mixer and LA21000 1000W Power Amplifier

Inside the Design

This fitness audio system includes four Pure Resonance Audio P115 15-inch 350W passive loudspeakers, an MX9 9-channel mixer with Bluetooth and effects, an LA21000 2-channel stereo power amplifier, and all necessary cables and connectors. The P115 loudspeakers deliver powerful, high-energy sound, ideal for large weight rooms, open gyms, and other fitness venues. The MX9 mixer allows for easy wireless streaming with built-in Bluetooth, providing music to drive intense workouts. The LA21000 amplifier powers the system with high-efficiency Class D technology, ensuring consistent, clear audio throughout your space. This fitness PA system delivers reliable, dynamic sound for a wide range of fitness environments.

Sound System Features:

• P115s deliver 350 watts of continuous power at 8 ohms with 97 dB sensitivity and a full-range frequency response of 53Hz to 20kHz
• 90° x 60° coverage pattern enhances sound range and clarity, and the versatile mounting angles optimize audience coverage
• Sit on a flat surface, use the pole socket for speaker stand mounting, or use the rigging points for flying
• Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects
• 9 channels consisting of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs and an additional set of front panel Tape In inputs
• Class D low-impedance digital amplification with switched mode power supply in the LA21000 delivers 95% ultra-high efficiency and low distortion



About the System Components

P115 15" 2-Way 350W Passive Loudspeaker

The Pure Resonance Audio P115 is a versatile 15" 2-way passive loudspeaker with 350 watts of continuous power. This professional PA speaker features a robust 15" woofer with a 2.5" voice coil for robust low and mid frequencies and a 1" compression driver with a 1.35" voice coil for crisp high frequencies. Designed for applications such as large weight rooms, open gyms, fitness centers, and functional fitness gyms, the P115 offers excellent vocal intelligibility and wide 90° x 60° coverage. Its lightweight, durable enclosure ensures long-term reliability, while integrated handles, pole mounting, rigging points, and floor monitor capability provide flexible installation options.

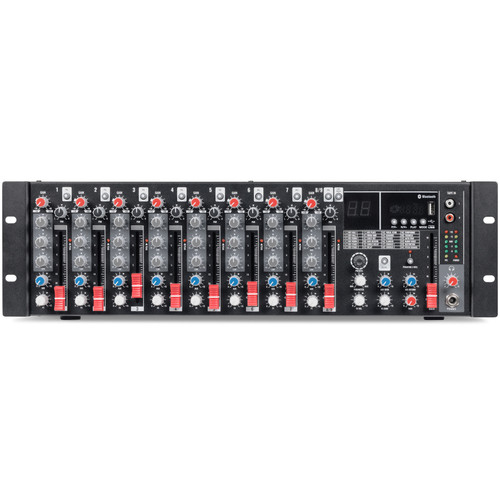

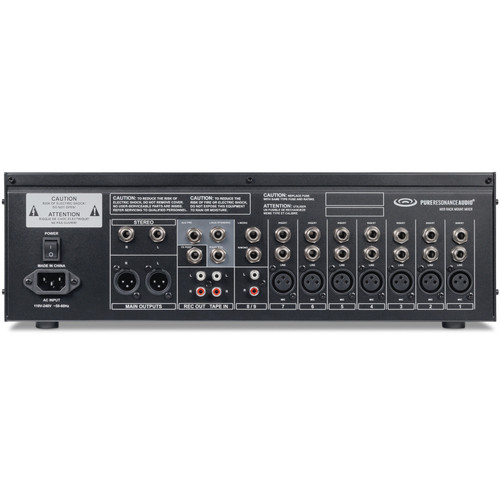

MX9 9-CHANNEL MIXER with Bluetooth & Effects

The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

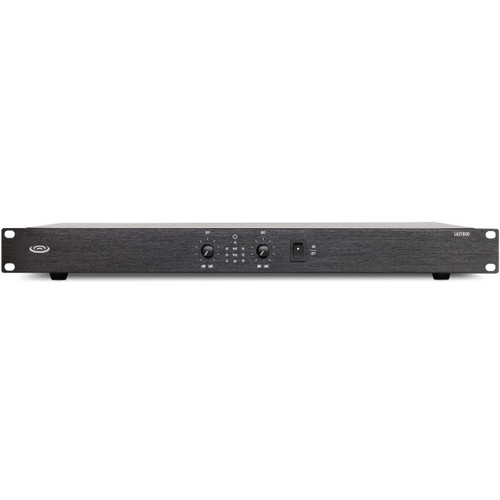

LA21000 LOW-IMPEDANCE POWER AMPLIFIER

The Pure Resonance Audio LA21000 is a powerful and efficient 2-channel rack mount amplifier that operates at low impedance. This compact and lightweight stereo power amplifier is housed in a rugged 1U 19" rack-mounted chassis. Combining a robust 1000 watts of Class D power with a switched-mode power supply allows for a lighter-weight unit, enhanced efficiency, and ensures stable and continuous operation. With XLR inputs, LINK, and SpeakON NL4 outputs, the LA21000 accommodates 4 or 8 ohms in mono or stereo mode, as well as 8 or 16 ohms bridged, catering to various live and installed applications. The LA21000 is an economical and reliable professional power amplifier that provides exceptional performance, durability, and sound quality.

Pure Resonance Audio P115 15" 350W 2-Way Passive Loudspeaker

• Robust Construction - Lightweight, durable molded polypropylene plastic enclosure ensures long-term reliability and structural integrity
• Wide Coverage - 90° x 60° coverage pattern enhances sound range and clarity, and the versatile mounting angles optimize audience coverage
• Quality Components - Equipped with a robust 15" woofer with a 2.5" voice coil and a 1" compression driver with a 1.35" voice coil for full-range audio
• High-Output Sound - Delivers 350 watts of continuous power at 8 ohms with 97 dB sensitivity and a full-range frequency response of 53Hz to 20kHz
• Multi-Functional - Features three built-in suspension points, a pole mounting socket, and floor monitor capability for various installation options
• Easy Transport - Solid, durable handles are intelligently engineered for balance and comfort, making carrying, mounting, and positioning easy



Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects

• Convenient Design - Powerful and professional quality analog mixer in a compact 3U rack mount design featuring high-quality components with maximum flexibility
• Multiple Inputs - 9 channels consisting of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs and an additional set of front panel Tape In inputs
• Versatile Outputs - 2 sets of stereo main outputs, 2 groups of auxiliary outputs, and a separate headphone output on the front panel
• DSP Effects - Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects, including gate reverb, delay, vocal echo, phaser, chorus, symphonic, distortion, pitch change, and more, or use the prefader option
• Bluetooth - Media player with display screen features Bluetooth audio streaming, MP3, USB with sound card function, and USB computer recording
• Channel Control - Each channel offers 3-band EQ, individual gain control, pre-fader monitor send, a peak indicator light, volume fader adjustment, and pan control, allowing users to direct the signal using a stereo setup



Pure Resonance Audio LA21000 2-Channel Stereo Power Amplifier

• Highly Efficient - Class D low-impedance digital amplification with switched mode power supply technology for 95% ultra-high efficiency with low distortion
• Flexible Connections - Designed with standard XLR inputs and XLR LINK outputs, as well as locking SpeakON NL4 outputs
• Powerful - 2 Channels support mono, stereo, or bridge modes, providing 2x700W at 8 ohms and 2x1000W at 4 ohms in stereo mode or 1400W at 16 ohms and 2000W at 8 ohms bridged
• Compact Design - Compact, lightweight, yet durable space-saving construction in a 1U 19-inch industrial-grade chassis
• Works Long Hours - Smart forced cooling fans with low fan noise and effective high heat dissipation ensure reliable operation even with use over extended periods
• Extensive Protection - Soft starter and smart peak clipper, DC, overload, short circuit, overheat protection, and power, protection, peak, and signal indicators ensure the unit operates safely



• (4) Pure Resonance Audio P115 15" 350W 2-Way Passive Loudspeakers
• (12) M8 Eye Bolts
• (1) Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects
• (1) Power Cord
• (1) Pure Resonance Audio LA21000 2-Channel Stereo Power Amplifier 2 x 1000W at 4 Ohms
• (1) Power Cord
• (2) NL4FX Adapters

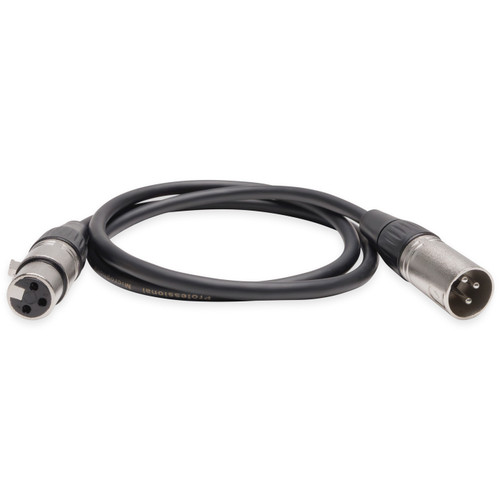

• (2) Pure Resonance Audio XLR-3 Female XLR to Male XLR Cables - 3ft
• (6) Hosa NL4FXX-W-L 4 Pole Neutrik SpeakON Cable Adapters
• (1000') West Penn 12/2 Gauge Speaker Wire
