Weight Room Sound System with 2 P115 15-inch Passive PA Speakers, MX9 9-Channel Mixer and DA2500 Dual-Impedance 500W Power Amplifier

Home /
Complete Sound Systems /
Fitness Sound Systems /
Installed Fitness Sound Systems /
Weight Room Sound System with 2 P115 15" Passive PA Speakers, MX9 9-Channel Mixer and DA2500 Dual-Impedance 500W Power Amplifier

Description

Details

Inside the Design

This weight room sound system delivers high-quality audio for intense workout environments like school weight rooms, boxing gyms, and wrestling rooms. It features two P115 15" passive speakers for powerful, immersive sound throughout your space, ensuring clear audio during every session. The MX9 9-channel rack mount mixer with built-in effects allows seamless integration of various audio sources, while the DA2500 dual-impedance 500W rack mount power amplifier provides robust and reliable sound reproduction for an energetic atmosphere. With wireless Bluetooth streaming, you can easily connect your devices and play music wirelessly, making this the ideal sound system for weight rooms and other settings where powerful audio is essential.

Sound System Features:

Delivers 350 watts of continuous power at 8 ohms with 97 dB sensitivity and a full-range frequency response of 53Hz to 20kHz
90° x 60° coverage pattern enhances sound range and clarity, and the versatile mounting angles optimize audience coverage
Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects
The 9-channel mixer consists of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs
Two 500-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals

About the System Components

P115 15" 2-Way 350W Passive Loudspeaker

The Pure Resonance Audio P115 is a versatile 15" 2-way passive loudspeaker delivering 350 watts of continuous power. This professional PA speaker features a powerful 15-inch woofer with a 2.5-inch voice coil for robust low and mid frequencies, and a 1-inch compression driver with a 1.35-inch voice coil for crisp high frequencies. Designed for high school weight rooms, fitness centers, boxing gyms, and martial arts studios, the P115 offers excellent vocal intelligibility and wide 90° x 60° coverage. Its lightweight, durable enclosure ensures long-term reliability, while integrated handles, pole mounting, rigging points, and floor monitor capability provide flexible installation options.

MX9 9-CHANNEL MIXER with Bluetooth & Effects

The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

DA2500 DUAL-IMPEDANCE 500W POWER AMPLIFIER

The Pure Resonance Audio DA2500 is a dual-impedance 2-channel Class-D power amplifier. It offers flexibility with independent 70V/4-16Ω switches for each 500-watt channel, making it suitable for various commercial applications. This cost-effective rack mount amplifier features short-circuit, overload, and overheating protection with cooling fans, ensuring safe operation even in environments with long working hours.

Features

Features

Pure Resonance Audio P115 15" 350W 2-Way Passive Loudspeaker

Robust Construction - Lightweight, durable molded polypropylene plastic enclosure ensures long-term reliability and structural integrity
Wide Coverage - 90° x 60° coverage pattern enhances sound range and clarity, and the versatile mounting angles optimize audience coverage
Quality Components - Equipped with a robust 15" woofer with a 2.5" voice coil and a 1" compression driver with a 1.35" voice coil for full-range audio
High-Output Sound - Delivers 350 watts of continuous power at 8 ohms with 97 dB sensitivity and a full-range frequency response of 53Hz to 20kHz
Multi-Functional - Features three built-in suspension points, a pole mounting socket, and floor monitor capability for various installation options
Easy Transport - Solid, durable handles are intelligently engineered for balance and comfort, making carrying, mounting, and positioning easy

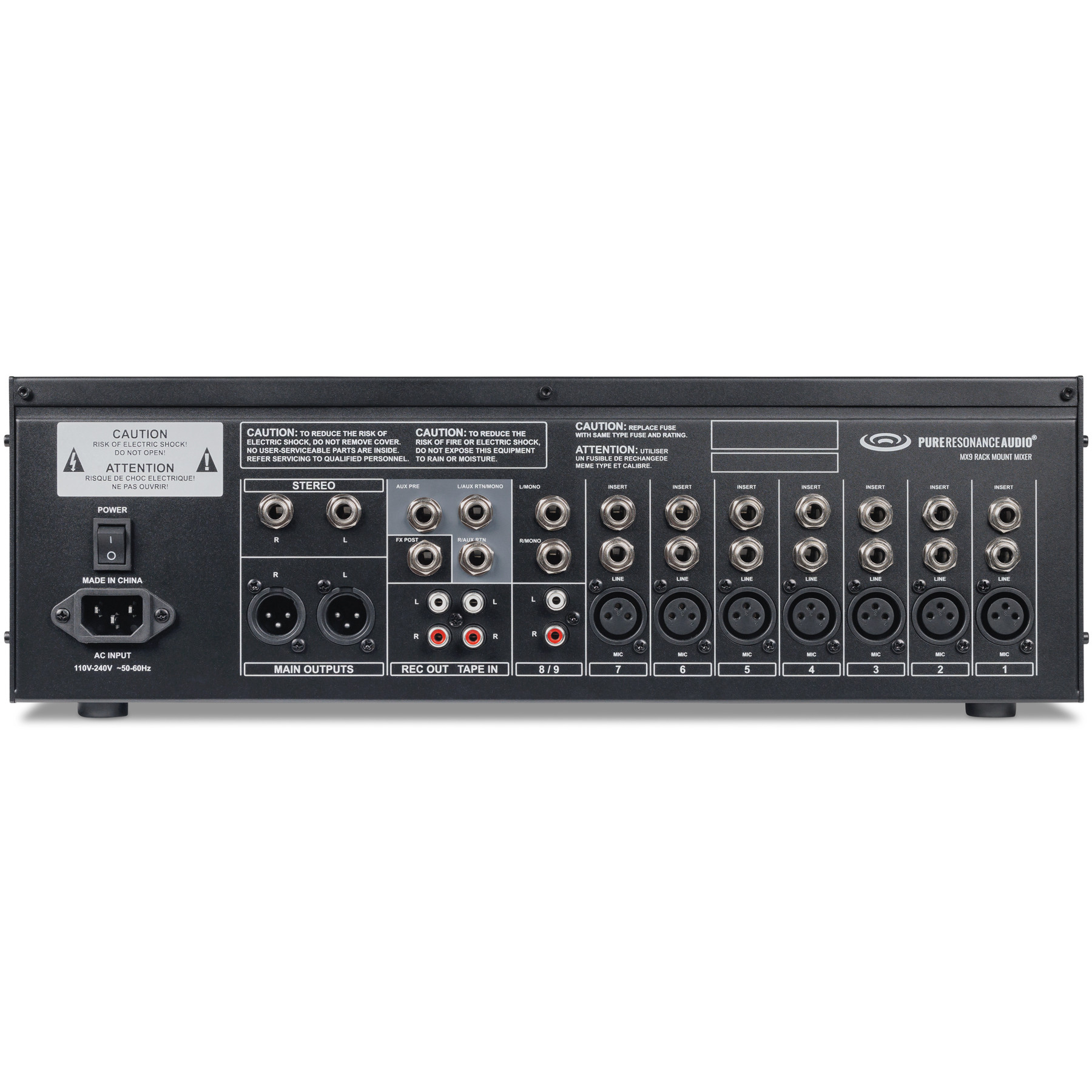

Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects

Convenient Design - Powerful and professional quality analog mixer in a compact 3U rack mount design featuring high-quality components with maximum flexibility
Multiple Inputs - 9 channels consisting of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs and an additional set of front panel Tape In inputs
Versatile Outputs - 2 sets of stereo main outputs, 2 groups of auxiliary outputs, and a separate headphone output on the front panel
DSP Effects - Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects, including gate reverb, delay, vocal echo, phaser, chorus, symphonic, distortion, pitch change, and more, or use the prefader option
Bluetooth - Media player with display screen features Bluetooth audio streaming, MP3, USB with sound card function, and USB computer recording
Channel Control - Each channel offers 3-band EQ, individual gain control, pre-fader monitor send, a peak indicator light, volume fader adjustment, and pan control, allowing users to direct the signal using a stereo setup

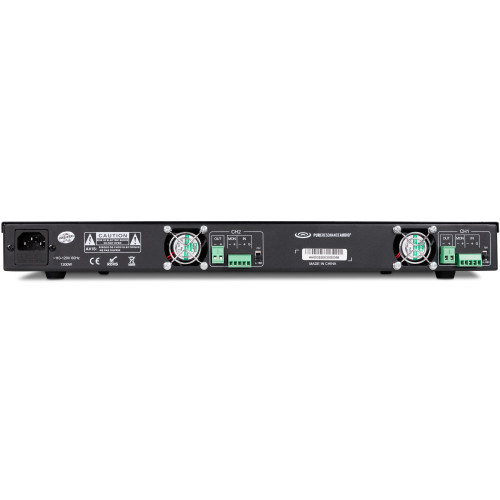

Pure Resonance Audio DA2500 Dual-Impedance 500W Rack Mount Power Amplifier

Highly Efficient - High-performance switching power supply and Class-D type power amplifier provides 85% efficiency with low power loss and heat output
Dual-Impedance - Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
Powerful - Two 500-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
Compact Size - Compact, lightweight, yet durable 1 rack unit 19-inch industrial chassis with a clean, intuitive design
Works Long Hours - Automatic cooling fans effectively dissipate heat, ensuring safe and reliable operation even in harsh conditions over extended periods of time
Safeguard Protected - High temperature, overload, and short circuit protection with signal, peak clipping, protection, and power supply indicator lights

System Includes
