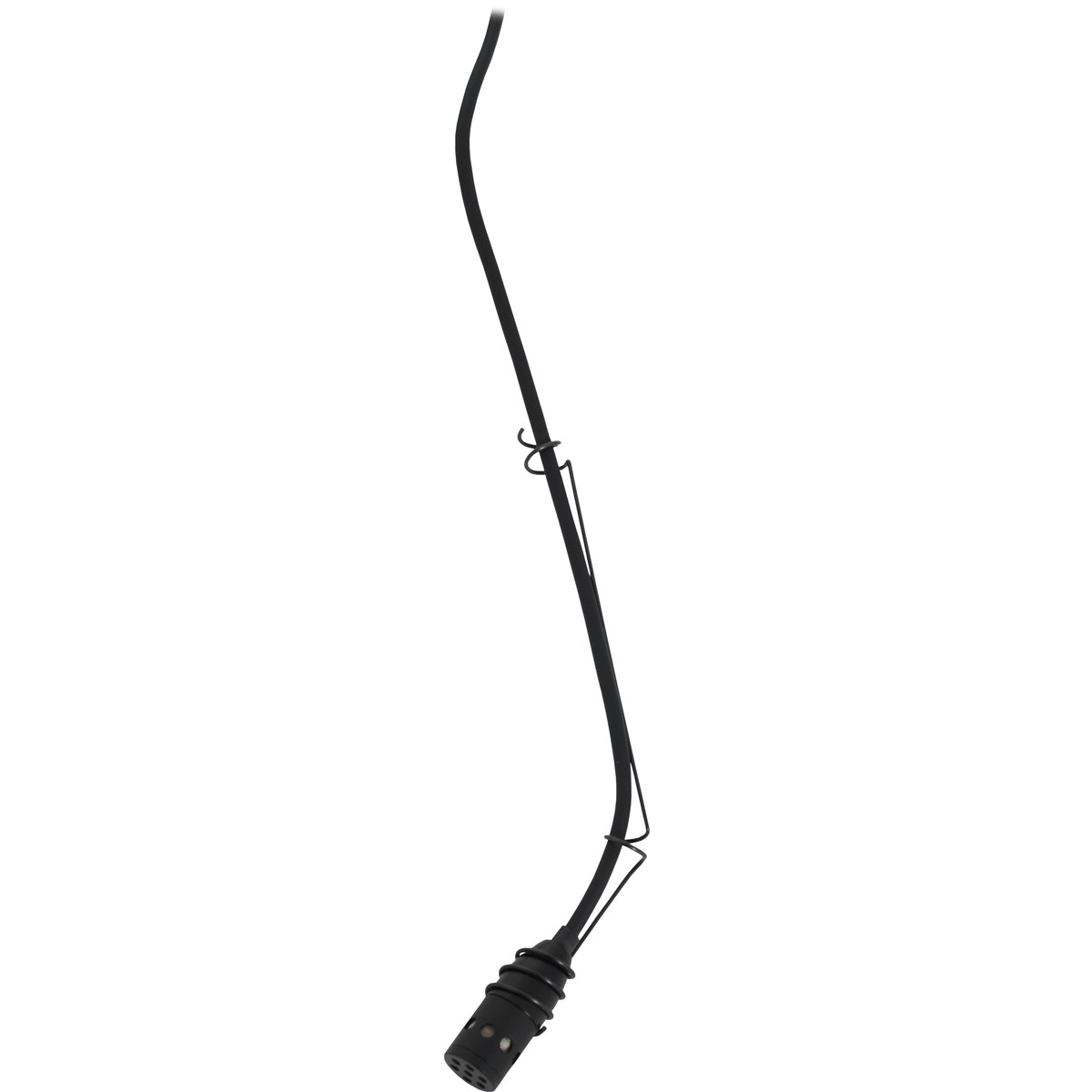

Galaxy Audio CH-CC215 Hanging Cardioid Condenser Choir Microphone
The Galaxy Audio CH-CC215 is a wide-range miniature condenser microphone with a cardioid polar pattern. It has been designed for use in high-quality sound reinforcement, professional recording, television, and other demanding audio applications. The microphone is furnished with a steel hanger that allows it to be positioned inconspicuously over a choir, orchestra, stage, etc.
The combination of small size and excellent response makes the CH-CC215 ideal for choirs, instrumental groups, and theater stages. A uniform 120° pickup angle provides well-balanced audio.
It can be powered from an external 9V to 52V DC phantom power supply. Output is low impedance balanced. The balanced signal appears across pins 2 and 3 of the professional 3-pin XLR output connector, while the shield/ground connection is pin 1.
A specially designed plastic mounting disc is provided for easy installation. The microphone cable may be run above or below the ceiling.
| Frequency Response | 20 - 20kHz |
|---|---|
| Sensitivity | -65dB |
| Operating Voltage | Phantom Power 9-52V DC |
| Element | Back Electret Condenser |
| Polar Pattern | Cardioid |
| Impedance | 250 ohms |
| Maximum Input SPL | 145dB SPL, 1KHz at 1% T.H.D |
| Dynamic Range | 118dB, 1 KHz at Max. SPL |
| Signal to Noise Ratio | 67dB, 1 KHz at 1 Pa |
| Phantom Power Requirements | 9V -52V DC, 2.0mA typical |
| Output Connector | Integral 3-pin XLR (male) |
| Color | Black |
| Accessories | Plastic Mounting Disc, Steel Hanger |
| Cable Length | 30' (9.14 m) |
| Dimensions | 0.5 (12.7 mm) x 1.1" (27.94 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
