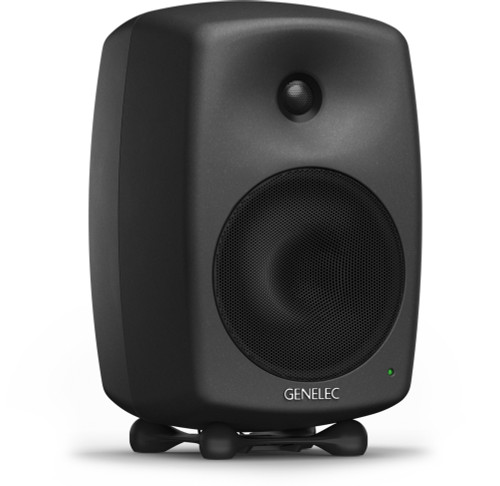

Genelec 8240A Studio Monitor (Discontinued)

By Genelec

Genelec 8240A Studio Monitor (Discontinued)

Name: Genelec 8240A Studio Monitor (Discontinued)
Brand: Genelec
SKU: GENELEC-8240A

Write a Review

Part #:

8240A

Model #:

8240A

Current Stock:

Availability: This model has been replaced.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The 8240A features Genelec MDE™ and DCW™ technologies, a flow optimized reflex port, high SPL, low coloration and broad bandwidth in a modest enclosure. This SAM system features Genelec AutoCal™ and Genelec Loudspeaker Manager (GLM™) control network technologies.

Description

The Genelec 8240A has been replaced with the Genelec 8340A.

The 8240A features Genelec MDE™ and DCW™ technologies, a flow optimized reflex port, high SPL, low coloration and broad bandwidth in a modest enclosure. This SAM system features Genelec AutoCal™ and Genelec Loudspeaker Manager (GLM™) control network technologies which allow adjustments of all aspects of monitor settings and full system control. GLM allows to automatically align every monitor on the network in terms of level, timing, and equalization of room response anomalies.

The 8240A is the most advanced monitoring tool for recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting.

Features

Bass 6.5 in, Treble 3/4 in metal dome, DCW
Designed for precise monitoring of 24 bit/192 kHz AES/EBU digital audio signal or line level analog audio signal
Ideal in applications where a wide frequency response is needed but space is limited
An ingenious, flow optimized, reflex port that provides solid
Magnetic shielding, overload protection circuitry and versatile room response controls as standard
Analog and AES digital inputs in combination with a digital thru connection

Specifications

Maximum Sound Pressure Level	105 dB
Frequency Response	48 Hz - 20 kHz (± 1 dB) 45 Hz - 21 kHz (-3 dB)
Crossover Frequency	3.0 kHz
Driver Dimension	Bass 6.5 in + Treble 3/4 inmetal dome + DCW™
Amplifier Power	Bass 90W + Treble 90W
Connectors	1 x XLR digital in 1 x XLR analog in 1 x XLR digital thru
Dimensions (H x W x D)	365 x 237 x 223 mm with Iso-Pod™
Weight	20.8 lbs (9.4 kg)
