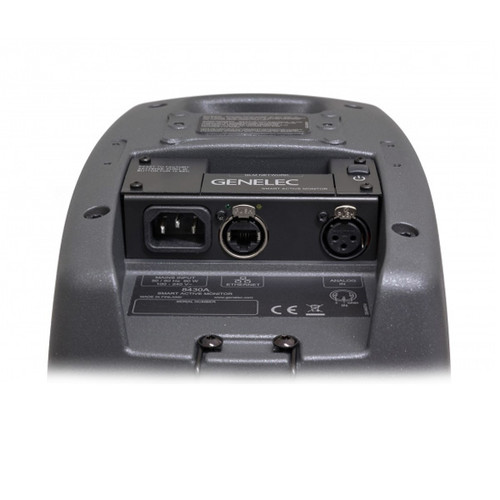

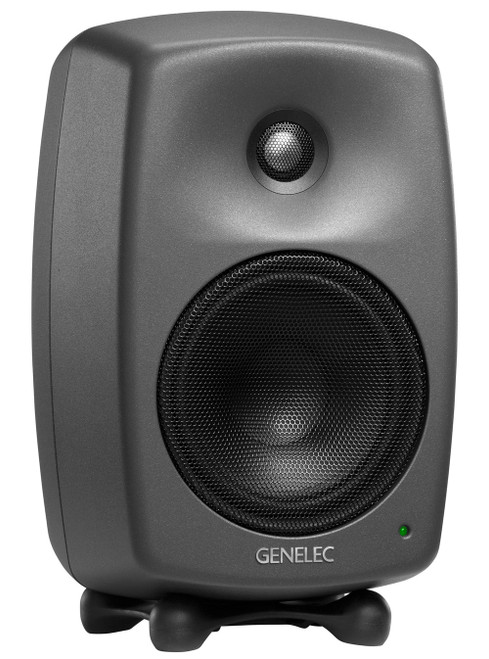

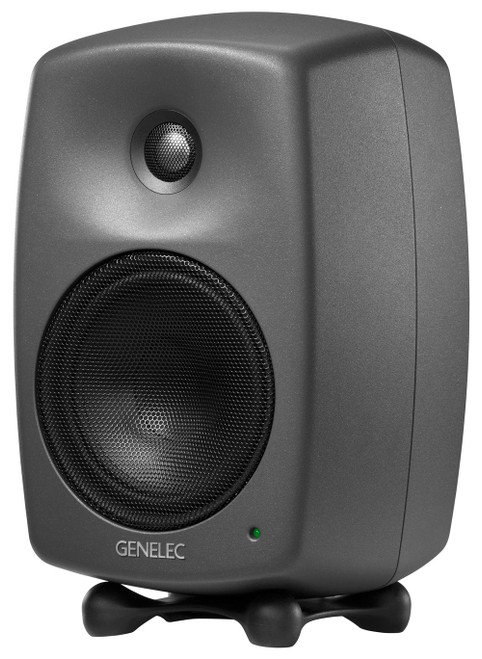

Genelec 8430A IP SAM Studio Monitor (Discontinued)

The 8430A features Genelec MDE™ and DCW™ technologies, a flow optimized reflex port, high SPL, low noise and wide uncoloured response in a very compact enclosure. The Genelec Loudspeaker Manager (GLM™ 2.0) control network and software allows adjustments of all aspects of monitor settings and full system control. Genelec AutoCal™ allows to automatically align every monitor on the network for level, timing, and equalisation of room response anomalies.

The 8430A Ethernet audio streaming capability is compliant with AES67 and Ravenna industry standards and supports all the typical standard audio sample rates. With its Genelec Class D amplifier technology, universal mains voltage and very high reliability, the 8430 fulfills all the stringent quality requirements of modern IP streaming applications.

• Each transducer is driven by its own optimized amplifier
• Active crossover operating at low signal levels
• Networked Smart Active Monitor (SAM™) Systems feature automatic calibration to the environment
• Directivity Control Waveguide (DCW™) for flat on- and off-axis response
• Sophisticated drive unit protection circuitry for safe operation
• Minimum Diffraction Enclosure (MDE™) for uncoloured sound reproduction
• Advanced reflex port design for extended low frequency response
• Vibration decoupling Iso-Pod™ stand improves sound image definition
• Intelligent Signal Sensing (ISS™) for power consumption reduction in stand-by mode

Operating Manual
