Gymnasium Sound System with 4 Electro-Voice TX1152 Loudspeakers and Crown XLS DriveCore 2 Series Power Amplifier

Inside the Design

This Electro-Voice gymnasium sound system is engineered to meet the demanding acoustic challenges of indoor sports environments. Designed for clear play-by-play announcements, pep rallies, assemblies, and high-energy music playback, the system delivers strong vocal intelligibility and consistent coverage across large gym spaces. With professional-grade loudspeakers, reliable mixing control, and high-powered amplification, this package provides a complete and dependable audio solution for schools and athletic facilities.

Sound System Features:

• High-output loudspeaker system designed for gymnasium coverage
• Clear, intelligible speech reproduction for announcements and events
• Professional rack-mount mixer with priority paging capability
• High-power Crown amplification with advanced protection circuitry
• Durable wired microphone for dependable vocal performance
• Includes professional audio cabling and 500’ of speaker wire for installation flexibility
• Ideal for schools, athletic facilities, and multipurpose gym spaces

About the System Components

Electro-Voice TX1152 15" 2-Way Loudspeakers

The Electro-Voice TX1152 is a high-power, high-sensitivity 2-way loudspeaker designed for professional sound reinforcement applications. Featuring a 15" woofer and a DH3 1.25" titanium compression driver coupled to a Constant Directivity 60° x 40° horn, the TX1152 delivers smooth frequency response and excellent pattern control. Its ability to project clear, powerful audio makes it ideal for gymnasiums where wide coverage and high output are essential for both speech and music playback.

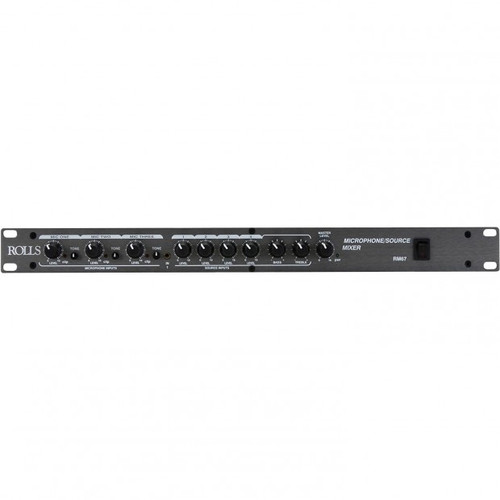

Rolls RM67 Professional Rack Mixer

The Rolls RM67 is a single-rack-space mixer built for installed sound applications. It mixes three balanced microphone inputs with four stereo source inputs to mono or stereo balanced outputs. Features include Mic/Line level switching, individually switchable +12V phantom power, priority talkover with adjustable ducking, tone controls, and master output level adjustment. With its flexible input options and simple operation, the RM67 is well-suited for gymnasium paging, music playback, and event support.

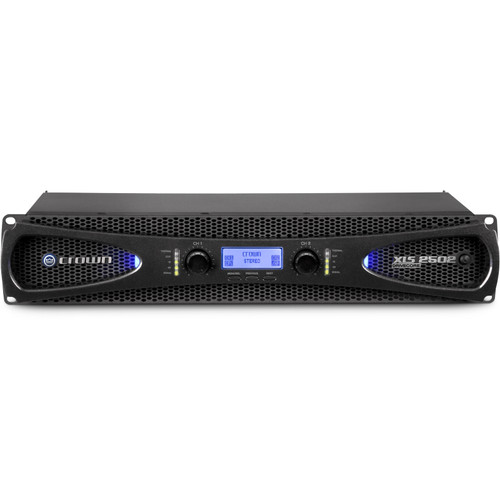

Crown XLS 2502 DriveCore 2 Series 2-Channel Power Amplifier

The Crown XLS 2502 DriveCore 2 amplifier delivers powerful, efficient amplification in a lightweight design. Utilizing Crown’s DriveCore technology, this two-channel amplifier provides high output with improved efficiency and reduced weight. It features onboard DSP with adjustable crossovers, EQ, limiting, and selectable input sensitivity for optimized system performance. Its reliable power and advanced protection circuitry make it an excellent choice for driving gymnasium loudspeaker systems with confidence and clarity.

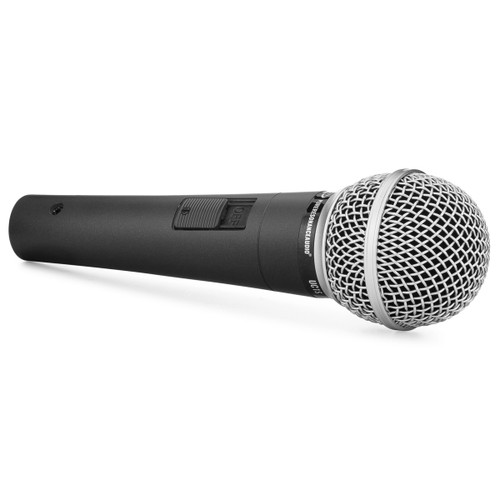

Pure Resonance Audio UC1S Ultra-Clear Vocal Microphone

The Pure Resonance Audio UC1S is a rugged dynamic vocal microphone designed for clear, natural voice reproduction. Featuring a cardioid pickup pattern to reduce background noise and feedback, this microphone is well-suited for live performances and public speaking. Its durable metal housing, steel mesh grille, built-in pop filter, and convenient on/off switch make it a reliable choice for performers on the go.

System & Component Videos

Electro-Voice TX1152 15" 2-Way Loudspeakers

• High-output, high-quality sound reinforcement for gymnasium environments
• SMX2151 15" low-distortion woofer with fully symmetric drive design
• 1.25" DH3/2010A titanium high-frequency compression driver
• Rotatable constant-directivity 60° x 40° horn for precise coverage control
• Advanced 4th-order crossover network with HF protection
• 100 dB sensitivity with up to 133 dB maximum SPL
• Power handling: 500W continuous, 2000W peak
• Lightweight trapezoidal plywood/MDF enclosure with durable EVCoat™ finish
• Pole mount compatible for use with subwoofers or speaker stands
• Six 3/8" threaded suspension points for flexible installation

Rolls RM67 Rack-Mount Mixer

• Three XLR microphone inputs with switchable phantom power and input padding
• Clip LEDs for each microphone input
• Priority ducking/talk-over for paging and announcements
• Four stereo RCA line-level inputs for music playback sources
• Mic insert jacks for external signal processing
• Master Bass and Treble controls for source inputs
• Master output level control with stereo record out
• Remote Volume jack for external level control
• Contact closure mute jack for main output muting

Crown XLS 2502 DriveCore 2 Series 2-Channel Power Amplifier

• High-power 2-channel amplifier with Crown DriveCore technology
• Lightweight and efficient design for easy rack installation
• Onboard DSP with adjustable crossover, EQ, and Peakx limiters
• Selectable input sensitivity for optimized system matching
• Integrated PureBand crossover system for precise frequency control
• Backlit LCD screen for easy configuration and monitoring
• XLR, 1/4" TRS, and RCA inputs for flexible connectivity
• Speakon and binding post outputs for professional speaker connections
• Advanced protection circuitry for reliable long-term performance

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone

• Super heavy-duty housing for rugged performance use
• Built-in wind and breath pop noise filter
• Ultra-dependable quiet on/off switch
• Steel mesh grille for durability and protection
• SwitchCraft connector for secure connection
• Frequency response tailored specifically for vocals
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Includes break-resistant stand adapter
• Frequency response: 50 Hz to 16,000 Hz
• Suitable for indoor and outdoor events

• (4) Electro-Voice TX1152 15" Loudspeakers
• (1) Rolls RM67 Mic/Source Mixer
• (1) Crown XLS 2502 DriveCore 2 Series 2-Channel Power Amplifier
• (1) Pure Resonance Audio UC1S Ultra-Clear Vocal Microphone
• (1) AtlasIED DS7 Desktop Microphone Stand

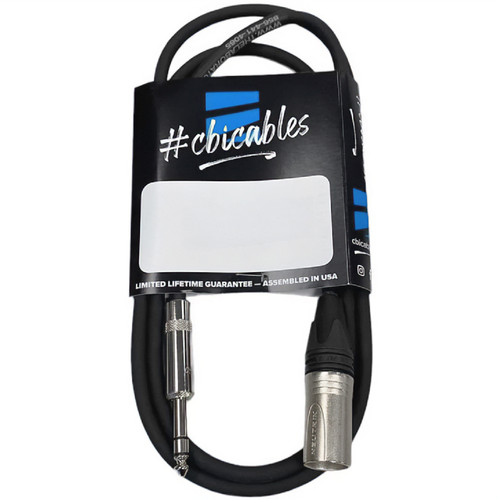

• (2) CBI BLC-3 Balanced 22G 1/4" Male TRS to Male XLR Cables - 3ft
• (500’) West Penn 226 14/2 Non-Plenum Audio Speaker Wire - Gray
