Outdoor Surround Sound System with 5 JBL Speakers a Subwoofer and Crown DCi 8|300 Power Amplifier (Discontinued Components)

By JBL Professional

Outdoor Surround Sound System with 5 JBL Speakers a Subwoofer and Crown DCi 8|300 Power Amplifier (Discontinued Components)

Write a Review

Part #:

ODSS-4AWC82AWC129SB2210

Model #:

ODSS-4AWC82AWC129SB2210

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Ideal for large outdoor entertainment complexes, this high-powered surround sound outdoor speaker system is perfect for entertainment areas, hotel and resort pools, hotel grounds, and even movies in the park where full-range cinema sound and a multi-channel format system is needed. 9 JBL cinema surround speakers, an outdoor compact subwoofer (bracket included), an 8-channel power amplifier, and a professional AV receiver make the perfect outdoor surround sound experience. Speaker wire included.

Description

High Powered Outdoor Surround Sound System with Subwoofer

Ideal for large outdoor areas, this high-powered surround sound outdoor speaker system is perfect for pools, waterparks, hotel grounds, movies in the park, or any outdoor space where full-range cinema sound and a multi-channel format system is needed. It features four JBL AWC82 8" all-weather loudspeakers, a JBL AWC129 all-weather 12" loudspeaker and a Control SB2210 compact subwoofer to provide low frequency reinforcement. This high output and outdoor capable design also includes a Crown DCi 8-channel power amplifier providing advanced features and flexibility with high-energy efficiency as well as a Yamaha CX-A5200 AVENTAGE 11.2-channel AV preamplifier with MusicCast delivering the best in performance and technology. This system includes 1000 ft of West Penn speaker wire and a JBL MTC-210UB subwoofer mounting bracket.

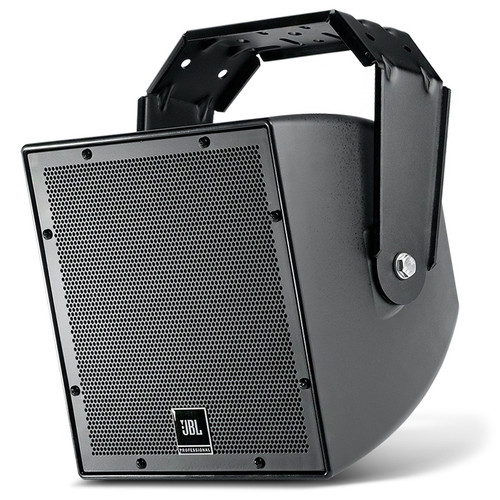

JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker for Speech and Music Public Address Systems

The JBL AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL AWC129 All-Weather Loudspeaker with High SPL

The JBL AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL Control SB2210 Dual 10" Indoor/Outdoor Compact Subwoofer

The Control SB2210 provides low frequency reinforcement, high output and outdoor capable design making it one of the most versatile subwoofers in the installation market. The internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size. It produces warm, punchy low-end sound. The 10" (250 mm) diameter low-frequency drivers feature a long-excursion design and extended low-frequency performance. The driver's woven fiberglass cone delivers robust performance and the highly damped butyl rubber surround and linear suspension spider design provide clean sound quality with lower distortion.

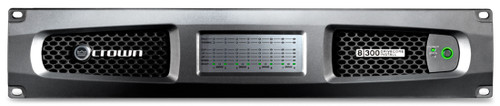

Crown DCi 8|300 8-Channel Power Amplifier

The new DriveCore™ Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore™ technology. DCi Series amplifiers are designed, engineered and manufactured to the industry's highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Yamaha CX-A5200 AVENTAGE 11.2-Channel AV Preamplifier with MusicCast

Supreme Performance. Built from the ground up, this preamplifier processor delivers the best in performance and technology. Harness the latest technologies in audio and video in your theater and pair it with the MX-A5200 Amplifier for the ultimate experience. AVENTAGE Separates represent the ultimate in home entertainment and Yamaha establishes a new benchmark in performance and innovation with the CX-A5200 pre-amplifier and MX-A5200 power amplifier.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

JBL AWC82 8" All-Weather Compact 2-Way Coaxial Loudspeakers:

Highly weather-resistant IP56 rating
Consistent 120° x 120° broadband pattern control
200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
Extraordinary clarity for speech, with extended frequency response for music
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
High-power passive crossover network
Overload protection
80 Hz – 20 kHz frequency response
200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance

JBL AWC129 12" All-Weather Compact 2-Way 90° x 90° Coaxial Loudspeaker :

Highly weather-resistant IP56 rating
Consistent 90° x 90° broadband pattern control 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
Extraordinary clarity for speech, with extended frequency response for music
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
400W power handling (average continuous pink noise) with high sensitivity provides high SPL capability
High-power passive crossover network
Overload protection
55 Hz - 20 kHz frequency response
200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance

JBL Control SB2210 Dual 10" Indoor/Outdoor Compact Subwoofer:

2 x 10 "(250 mm) Woven Fiberglass Cone LF Drivers
500W Power handling
Frequency Response Down to 38 Hz
13 x M6 Insert Points Including Inserts for Optional U-Bracket
Compact, Low Profile Design

Crown DCi 8|300 8-Channel Power Amplifier:

True Rack Density – All in a 2 Rack Unit form factor – More channels in one box allow smaller infrastructure rooms that can reduce operational costs while giving you the utmost in installation flexibility
Direct Drive Constant Voltage – Save money by using smaller gauge wiring to drive the speakers using either 70Vrms or 100Vrms – With no need for a step-up transformer at the output, the DCi produces higher audio quality much more efficiently
Channel Independent Hi-Z/Low-Z Selection –Drive either one or two speakers in low-Z mode, or literally hundreds of speakers in high-Z mode (70Vrms or 100Vrms) – This means better design flexibility since DCi powers all loads on a channel-by-channel basis
Bridgeable Channel Pairs – Unlike amps from other manufacturers, the DCi Series channels are bridgeable – even in 100Vrms mode – which means even more adaptability for higher power applications such as subwoofers
Remote On/Off Interface – Save power by integrating the amplifier into a control system so you can easily turn it on and off
Efficient Cooling Design – Highly efficient internal cooling fans provide airflow to the most heat-generating parts. Incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise
Advanced Power Factor Correction (PFC) Universal Power Supply – The most advanced power supply in an installation amplifier delivers power more efficiently in almost any condition than anyone else, resulting in less power dissipated and less heat in your racks

Yamaha CX-A5200 AVENTAGE 11.2-Channel AV Preamplifier with MusicCast:

11.2-ch with balanced XLR outputs
Dolby Atmos® and DTS:X™ up to 7.2.4-channel processing
Dual ESS SABRE PRO ES9026PRO Ultra DAC
Wi-Fi®, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room
Pandora®, Spotify, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more
HDMI with HDCP 2.3 (7 in/3 out)
4K Ultra HD, HDR10, Dolby Vision™, Hybrid Log-Gamma, and BT.2020
Voice control with Alexa and Google Assistant devices or Siri via AirPlay 2
Surround: AI™ technology automatically optimizes the sound in real-time
YPAO R.S.C. with 3D, 64-bit precision EQ calculation and angle measurement
Phono input

System Includes

(4) JBL AWC82 8" All-Weather Compact 2-Way Coaxial Loudspeakers
(1) JBL AWC129 12" All-Weather Compact 2-Way 90° x 90° Coaxial Loudspeaker
(1) JBL Control SB2210 Dual 10" Indoor/Outdoor Compact Subwoofer
(1) Crown DCi 8|300 8-Channel Power Amplifier
(1) Yamaha CX-A5200 AVENTAGE 11.2-Channel AV Preamplifier with MusicCast
(1) JBL MTC-210UB U-Bracket for Control SB210
(6) CBI MLN-3-PREP-F Female XLR to Prep Wire Patch Cables
(1000 ft) West Penn AQ227 12/2 Aquaseal Fire-Alarm Wire
