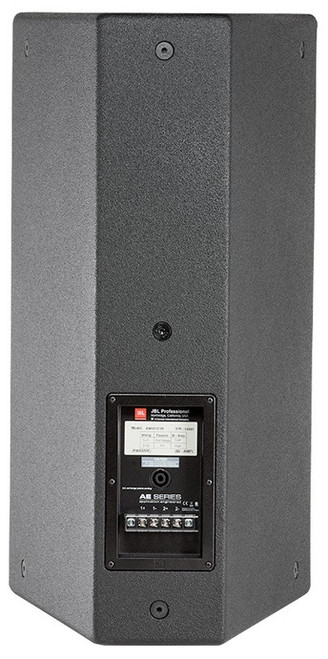

JBL AM5212/00 12 Inch Loudspeaker with 100° x 100° Coverage
JBL AM5212/00 12 Inch Loudspeaker with 100° x 100° Coverage
JBL AM5212/00 12 Inch Loudspeaker with 100° x 100° Coverage
By JBL Professional

JBL AM5212/00 12 Inch Loudspeaker with 100° x 100° Coverage

Write a Review
Part #:
AM5212/00
Model #:
AM5212/00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The JBL AM5212/00 is a medium power, lightweight, 2-way, full-range loudspeaker intended for a wide variety of applications.

Description
The AM5212/00 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 highfrequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver.

The large format Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

The enclosure is constructed of multiply birch coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The AM5212/00 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features
  • 100° x 100° Coverage
  •  262H-1 Differential Drive® Low-Frequency Driver
  •  2408H-1 High-Frequency Compression Driver
  •  Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  •  Rotatable waveguide for vertical or horizontal orientation
  •  Bi-Amp/Passive Switchable
  •  Available in Black, White and WRC/WRX weather resistant finishes

Specifications
Frequency Range (-10 dB) 37 Hz – 20 kHz
Frequency Response (±3 dB) 43 Hz – 20 kHz
Coverage Pattern 100° x 100°
Directivity Factor (Q) 8.3
Directivity Index (DI) 9.2 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.6 kHz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs
300 W (1200 W peak), 100 hrs
HF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (Bi-amp mode) LF: 122 dB-SPL cont avg (128 dB peak)
HF: 127 dB-SPL cont avg (133 dB peak)
Maximum SPL (Passive mode) 121 dB-SPL cont avg (127 dB peak)
System Sensitivity (1W @ 1m) Passive mode: 96 dB SPL
Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voicecoil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 97 dB SPL
High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m) 111 dB SPL
Waveguide PT-H1010HF-1
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Dimensions (H x W x D) 28" (711 mm) x 14.5" (369 mm) x 18" (458 mm)
Net Weight 45 lbs (20.2 kg)
