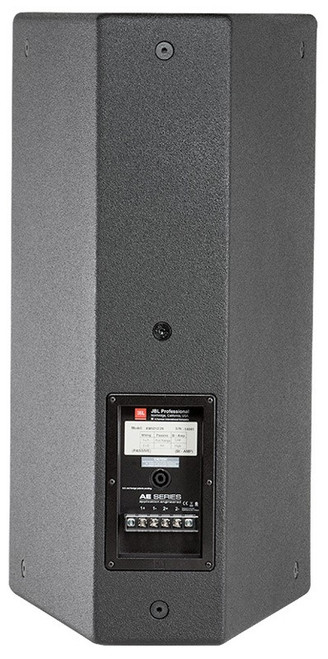

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 highfrequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver.
The large format Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
The enclosure is constructed of multiply birch coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The AM5212/64 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40°, rotatable waveguide |
| Directivity Factor (Q) | 16.8 |
| Directivity Index (DI) | 12.3 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.6 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs |
| Long-Term System Power Rating (IEC) | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (Bi-amp mode) | LF: 122 dB-SPL cont avg (128 dB peak) HF: 131 dB-SPL cont avg (137 dB peak) |
| Maximum SPL (Passive mode) | 121 dB-SPL cont avg (127 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| Low Frequency Driver | 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m, within operational band) | 97 dB SPL |
| High Frequency Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 115 dB SPL |
| Waveguide | PT-H64HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing |
| Dimensions (H x W x D) | 28" (711 mm) x 14.5" (369 mm) x 18" (458 mm) |
| Net Weight | 45 lbs (20.2 kg) |
