High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications
The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

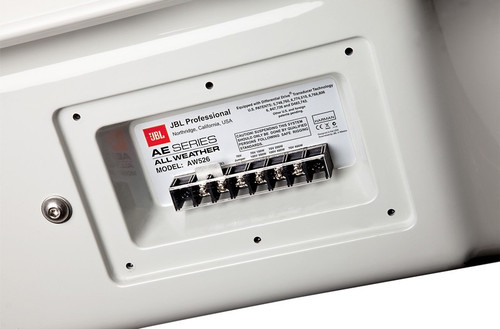

| Frequency Range (-10 dB) | 42 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 89 Hz – 18 kHz |
| Coverage Pattern | 60° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| Long-Term System Power Rating (IEC) | 400W (1600W peak), 100 hrs |
| Maximum SPL | 127 dB-SPL cont avg (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| 70V/100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| LFD Nominal Impedance | 8 ohms |
| LFD Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HFD Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety |
| Environmental Specifications | IP55C per IEC 529 |
| Dimensions (H x W x D) | 19.1" (485 mm) x 31.9" (810 mm) x 18.8" (478 mm) |
| Net Weight | 62.5 lbs (28.3 kg) |
