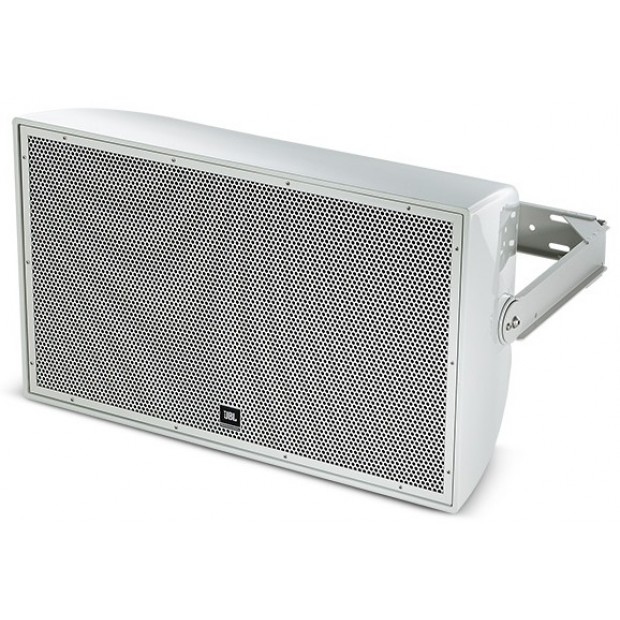

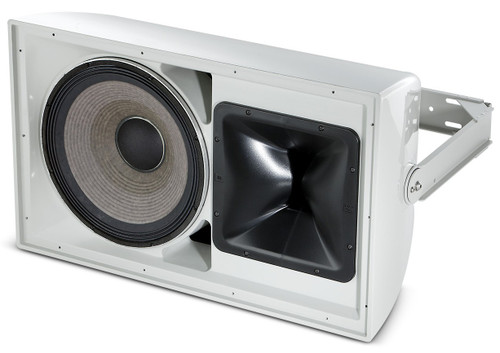

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400W 70/100V transformer.
Applications:
| Frequency Range (-10 dB) | 41 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 88 Hz – 19 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Horizontal (500 Hz) | 136° |
| Vertical (500 Hz) | 106° |
| Horizontal (1000 Hz) | 127° |
| Vertical (1000 Hz) | 87° |
| Horizontal (2000 Hz) | 96° |
| Vertical (2000 Hz) | 64° |
| Horizontal (4000 Hz) | 99° |
| Vertical (4000 Hz) | 40° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| Long-Term System Power Rating (IEC) | 400 W (1600 W peak), 100 hrs |
| Maximum SPL | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4m) | 113.34 dB |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Sensitivity (1W @ 4m) | 88.43 dB SPL |
| 70V Transformer Taps | 400 W, 200 W, 100W |
| 100V Transformer Taps | 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H95HF -1 |

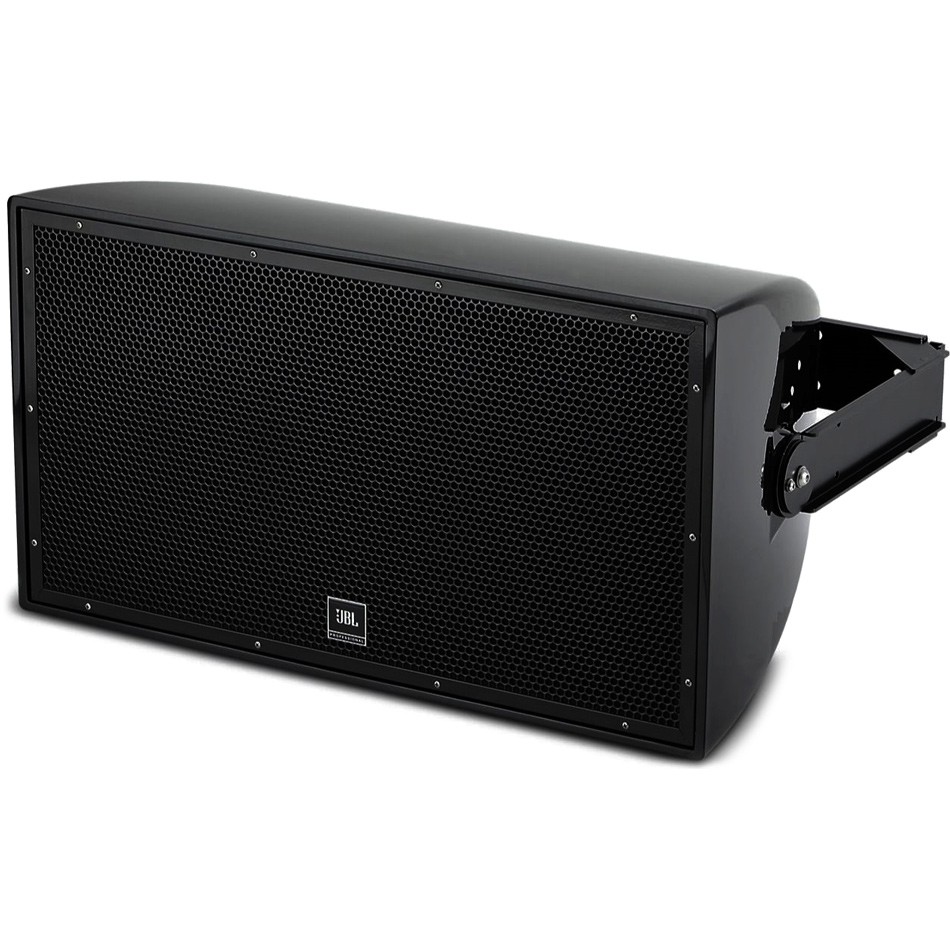

| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), availablein black (-BK) |

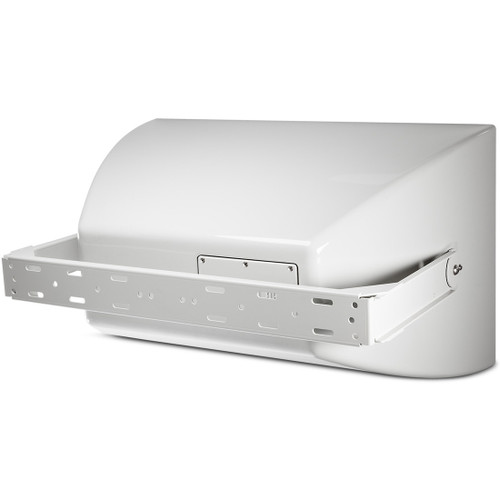

| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh |

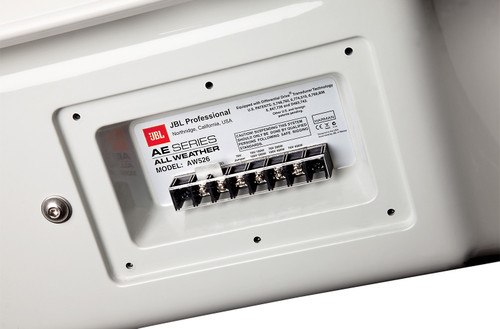

| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | IP55C per IEC 529 |
| Dimensions (H x W x D) | 19.1" (485 mm) x 31.9" (810 mm) x 18.8" (478 mm) |
| Net Weight | 62.5 lbs (28.3 kg) |
