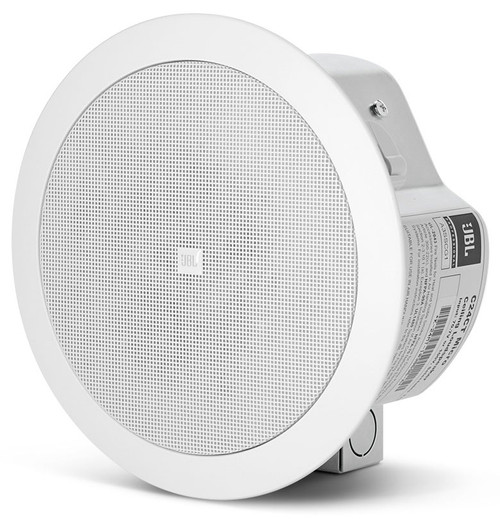

The JBL Control 24C 4" two-way ceiling speaker provides premium performance in background, foreground and music-plus paging sound systems.

Description

The Control 24C is a 4" compact two-way ceiling speaker that provides premium performance in background, foreground and music-plus paging sound systems. The Control 24C is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers.

The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The Control 24C’s 16 ohm impedance allows use of multiple speakers in parallel without having to use a more expensive constant voltage distributed system. JBL’s exclusive SonicGuard overload protection is a non-invasive loudspeaker protection system that is inaudible to the listener, ensuring reliability while providing full fidelity sound. The computer-optimized ported enclosure delivers warm, smooth bass response.

Low frequency output can be further augmented with the addition of one of the Control Contractor subwoofer models. The 4" woofer features a polypropylene-coated cone and pure butyl rubber surround for long life, even in high humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling. The coaxially mounted 0.75" titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listening area. The extremely broad 130° coverage pattern allows for fewer speakers to be used, making for a simpler and less expensive installation.

Features

  • Coaxially mounted 4" woofer with butyl rubber surround and 0.75" titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • JBL’s exclusive SonicGuard overload protection allows higher operational levels and improved system reliability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Steel back-can with removable locking connector

Specifications

Frequency Range (-10 dB) 80 Hz - 20 kHz
Power Capacity 80 Watts Continuous Program Power; 80 Watts Continuous Program Power
Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft)
Nominal Coverage Angle 130° conical coverage
Directivity Factor (Q) 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 averaged 500 Hz to 4 kHz
Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
Nominal Impedance 16 ohms (Min Z 16.1 Ω @ 320 Hz)
Low-Frequency 4" Polypropylene-coated, 1" coil on aluminum former
High-Frequency 0.75" Titanium coated polyester
Enclosure Backcan: Formed steel, Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network andtransducers
Termination Removable locking connector with screw-downterminals
Cutout Size 6.6" (168 mm)
Dimensions (H x Dia) 7.9" (200 mm) x 7.7" (195 mm)
7.2" from front of ceiling tile to the back of the backcan
Net Weight (ea) 6 lbs (2.7 kg)
Shipping Weight (pair) 15 lbs (6.4 kg)
