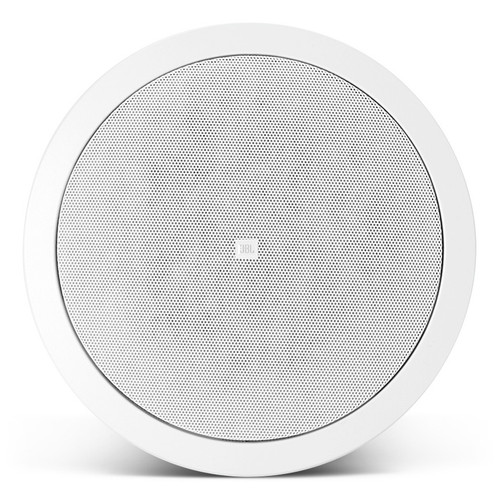

The Control 26C is a compact ceiling speaker providing premium performance in background, foreground music sound systems. The Control 26C is perfectly suited for a wide variety of applications from casinos and hotels to upscale restaurants and themed locations. High power handling, wide frequency response and low distortion make the Control 26C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The optional Control 26CT version includes a multitap transformer for 70V/100V systems.
JBL’s exclusive SonicGuard overload protection is a non-invasive loudspeaker protection system that is inaudible to the listener, ensuring reliability while providing full fidelity sound. The computer-optimized ported enclosure delivers warm, smooth bass response. Low frequency output can be further augmented with the addition of one of the Control Contractor subwoofer models.
The 165 mm (6.5 in) woofer features a polyurethane-coated cone and pure butylrubber surround for long life, even in high humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling.
The coaxially mounted 19 mm (¾ in) titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listening area. The extremely broad 110° coverage pattern allows for fewer speakers to be used, making for a simpler and less expensive installation.- Features
Features
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
- Specification
Frequency Range 75 Hz - 20 kHz Power Capacity 150 Watts Continuous Program Power
75 Watts Continuous Pink NoiseTransformer Taps 70V: 60W, 30W, 15W, & 7.5W
100V: 60W, 30W, & 15WNominal Coverage Angle 110° Directivity Index (DI) 4.6 dB Rated Maximum SPL 106 dB SPL @ 1m (3.3 ft) Low Frequency 6.5" (165 mm) High Frequency 0.75" (19 mm) titanium Terminations Screw locking barrier strip Dimensions (H x Dia) 8.3" (210 mm) x 9.9" (252 mm) Net Weight 10 lbs (4.2 kg) Shipping Weight (Pair) 21 lbs (9.7 kg) - Documents
