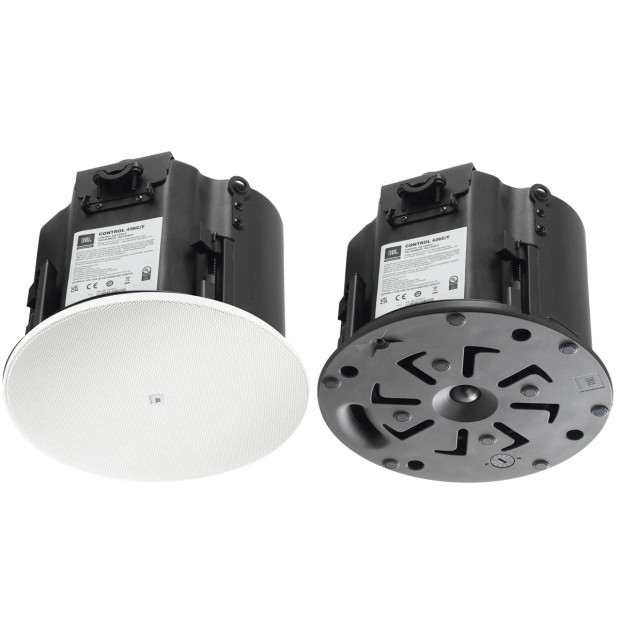

JBL Control 426C/T 6.5" 2-Way Coaxial Ceiling Loudspeaker
The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.
Refined, Modern Aesthetics
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.
Superior Sonic Performance
The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.
Efficient, Flexible Installation
Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.
- Features
Features
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 110° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
- Specification
Frequency Range (-10 dB) 72 Hz – 19 kHz Power Capacity (at low-Z) 220W Continuous Program (2 hrs) 110W (440W Peak), Continuous Pink Noise (2 hrs)
75W (300W Peak) Continuous Pink Noise Power (100 hrs)Transformer Taps 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W Frequency Response (±3 dB) 88 Hz to 17 kHz ±3 dB Nominal Sensitivity 85 dB Nominal Coverage Angle 110° Conical Coverage Directivity Factor (Q) 3.3 Directivity Index (DI) 5.2 dB Rated Maximum SPL 109 dB continuous pink noise (115 dB peak) Nominal Impedance 12 ohms Dimensions (Dia x D) 9.9" (253 mm) x 7.4" (190 mm) Net Weight (ea) 9.3 lbs (4.2 kg) Shipping Weight (Pair) 29.3 lbs (13.35 kg) - Documents
Documents
- In The Box
In The Box
- (2) JBL Control 426C/T 6.5" Passive 2-Way Coaxial Ceiling-Mounted Loudspeakers
- (2) White Round Grilles
- (4) Rubber Boots
- (2) Cable Strain Reliefs
- (2) 2-Pin Block Connectors
- (1) Cutout Template
- (2) C-Rings
- (2) Tile Rails
