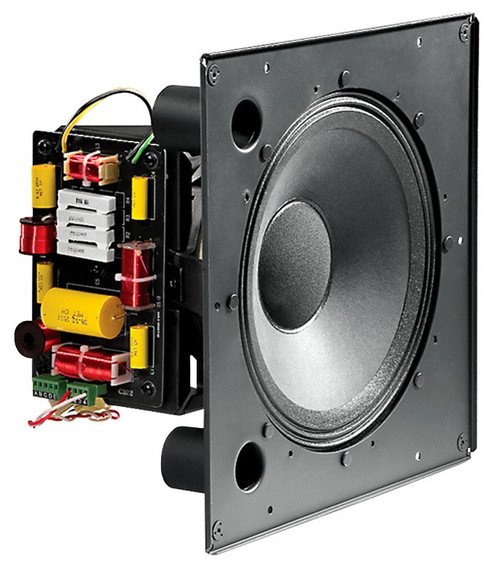

The Control 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker with pre-attached 60-Watt, 70V/100V Multi-Tap Transformer. The low-frequency cone performs as a true 12-inch (300 mm) diameter waveguide for the high frequencies. A unique metal throat transitions seemlessly to the horn to eliminate high-frequency beaming, which is common among this category of speakers. The result is a coaxial speaker with extremely consistent 90° coverage on a broadband basis. The Control 322CT is easy to install with an innovative EZRail™ feature built into the metal baffle that temporarily holds one side of the speaker baffle in place until the installer can affix the baffle to the backcan with screws. The removable multi-pin locking connector, with secure screw-down terminals, allows for pre-wiring the input wires for easy clip-on convenience during installation.
| Frequency Range (-10 dB) | 32 Hz-20 kHz |
|---|---|
| Frequency Response (±3 dB) | 48 Hz-19 kHz |
| Coverage Pattern | 90° conical, broadband (Avg 1k - 16kHz) |
| Directivity Factor (Q) | 9 (1k - 16kHz) |
| Directivity Index (DI) | 9.5dB (1k - 16kHz) |
| Long-Term System Power Rating | 400 W (1600 W peak), 2 hrs and 250 W (1000 W peak), 100 hrs |
| Maximum SPL | 121 dB cont ave (124 dB peak) |
| Transformer Taps | 70V: 100W, 50W, 25W, & 12.5W and 100V: 100W, 50W & 25W |
| Tap Connection | A: Common; B: 12.5W @ 70V, 25W @ 100V; C: 25W @ 70V, 50W @ 100V; D: 50W @ 70V, 100W @ 100V; E: 100W @ 70V, n/c @ 100V |
| Dimensions (H x W x D) | 14.4" (366 mm) x 14.4" (366 mm) square baffle x 8.8" (223 mm) depth from back of baffle |
| Net Weight | 22 lbs (10 kg) |
| Shipping Weight | 25.8 lbs (11.7 kg) |
