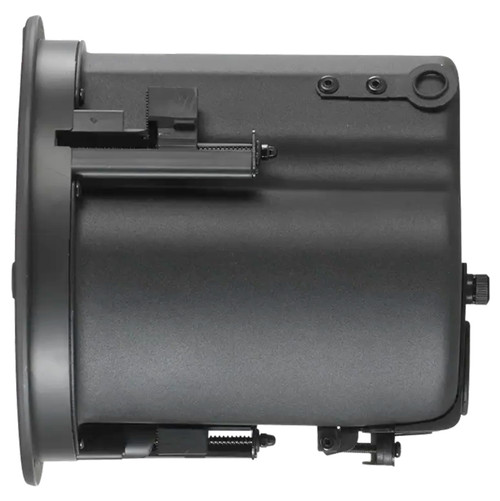

JBL Control 424C/T 4" 2-Way Coaxial Ceiling Loudspeakers - Pair

Description

Details

JBL Control 424C/T 4" Two-Way Coaxial Ceiling Loudspeaker

The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Superior Sonic Performance

The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

Efficient, Flexible Installation

Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Features

Features

Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
CRBI™ technology for consistent 130° coverage across the listening area
Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
Full-face, easily paintable magnetic grilles
Top and side exit cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated

Specification

Frequency Range (-10 dB)	75 Hz – 18 kHz
Power Capacity (at low-Z)	120W Continuous Program (2 hrs) 60W (240W Peak) Continuous Pink Noise (2 hrs) 40W (160W Peak) Continuous Pink Noise Power (100 hrs)
Transformer Taps	70 V: 30W, 15W, 7.5W & 3.7W 100 V: 30W, 15W, 7.5W
Frequency Response (±3 dB)	88 Hz to 17 kHz ±3 dB
Nominal Sensitivity	84 dB
Nominal Coverage Angle	130° Conical Coverage
Directivity Factor (Q)	3.3
Directivity Index (DI)	5.2 dB
Rated Maximum SPL	103 dB continuous pink noise (109 dB peak)
Nominal Impedance	16 ohms
Dimensions (Dia x D)	7.7" (196 mm) x 7.2" (182 mm)
Net Weight (ea)	6.2 lbs (2.8 kg)
Shipping Weight (Pair)	23.1 lbs (10.5 kg)
