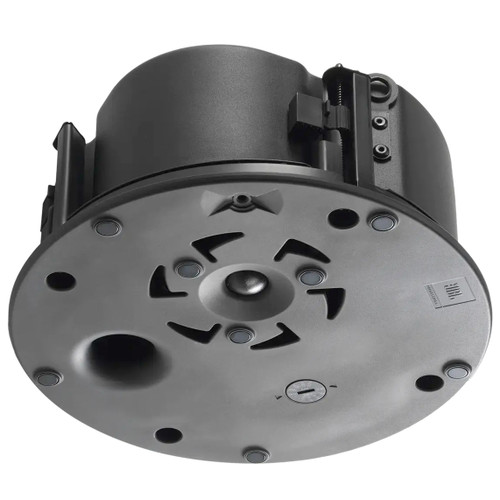

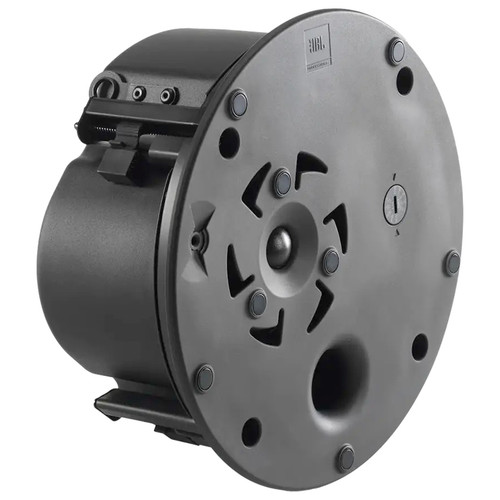

JBL Control 424LP 4" 2-Way Coaxial Ceiling Loudspeakers with Low-Profile Enclosure - Pair

JBL Control 424LP 4" 2-Way Coaxial Ceiling Loudspeaker

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Superior Sonic Performance

The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

Efficient, Flexible Installation

Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

• Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
• Low-profile enclosure (<100 mm deep) for installing where ceiling plenum space is restricted
• CRBI™ technology for consistent 130° coverage across the listening area
• Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side exit cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Spec Sheet

Owner's Manual

• (2) JBL Control 424LP 4" Passive 2-Way Coaxial Ceiling-Mounted Loudspeakers
• (2) White Round Grilles
• (4) Rubber Boots
• (2) Cable Strain Reliefs
• (2) 2-Pin Block Connectors
• (1) Cutout Template
• (2) C-Rings
• (2) Tile Rails
