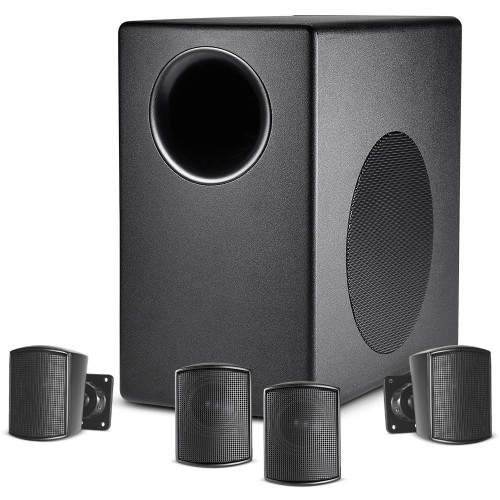

JBL C50PACK Surface Mount Subwoofer-Satellite Loudspeaker System
The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surface mount system.

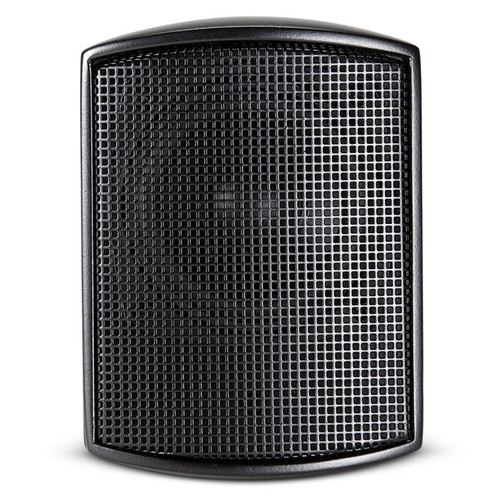

Control 52 Satellite Speakers
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

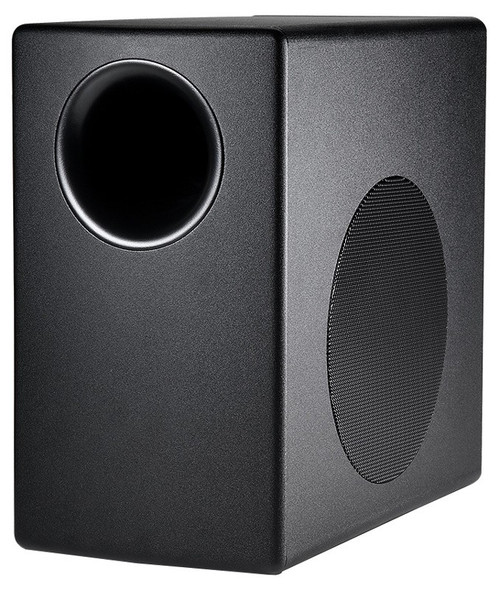

Control 50S/T Subwoofer
The 150-watt (600-watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.
- Features
Features
JBL Control 52 Satellite Speakers:
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
JBL Control 50S/T Subwoofer:
- Full bandwidth 32 Hz – 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Available in black or white
- Specification
Control 52 Satellite Speakers Frequency Range (-10 dB) 140 Hz – 20 kHz Frequency Response (±3 dB) 180 Hz – 17 kHz Power Capacity 50 Watts Continuous Nominal Sensitivity 85 dB (4.0V/1m = 1W) Nominal Coverage Angle 150° x 150° (omnidirectional) Rated Maximum SPL (1m) 94 dB average, 100 dB peak Nominal Impedance 16 ohms Transducer Driver 60 mm (2.5 in) with polypropylene cone Input Connector Removable locking 2-pin connector Material High impact polystyrene Dimensions (H x W x D) 4.5" (114.3 mm) x 3.3" (83.82 mm) x 3.75" (95.25 mm) Weight (ea) 1.5 lbs (0.68 kg) Control 50S/T Subwoofer Frequency Range (-10 dB) 32 Hz – 200 Hz Frequency Response (±3 dB) 50 Hz – 150 Hz Power Capacity 300 Watts Continuous Nominal Sensitivity (2.83V, 1m) 95 dB (near corner) Rated Maximum SPL (1m) 115 dB average Nominal Impedance 8 ohms Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), 8 ohm Transducer Driver 200 mm (8 in) with polypropylene cone Input Connectors Six removable locking 2-pin connectors Material Structural Plywood Wall Brackets 2.3 mm (0.9 in) thick zinc-plated Dimensions (H x W x D) 14" (355.6 mm) x 15.4" (391.16 mm) x 8" (203.2 mm) Weight 20 lbs (9.07 kg) - Documents
