The JBL Commercial® CSPM-2 microphone is a dynamic close-talking microphone for paging systems in bars/pubs, theater lobbies, department stores, and more.

Description

The CSPM-2 contains a momentary PTT button and two latching buttons for selecting zones. It is ideal for use with the JBL Commercial CSM-32. A single cable attached to the CSPM-2 contains three conductors for audio (Positive, Negative, Shield) and three conductors for contact closure (Zone 1, Zone 2, Ground). Selecting a zone and pressing and holding the PTT button will route the microphone audio to that zone.

Features
  • 1 PTT Button
  • 2 Zone Selection Buttons
  • Ideal for Paging to 2 Zones
  • Ideal for Use with CSM-32

Specifications
Push-to-Talk Button 1
Zone Selection Buttons 2
Capsule type Dynamic
Sensitivity Typ. 2.2mV/Pa (-54dBV)
Frequency Response 150 – 15kHz
Equivalent Noise 21 dB-A
Polar Pattern Directional - Cardioid
Max SPL 133 dB(SPL), K=1%
Impedance 530 Ohms
Wind and Pop-protection Internal foam

Related Products

Sold Out

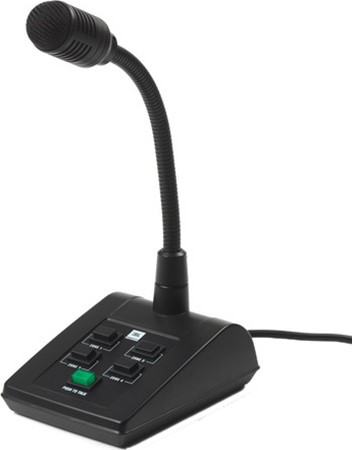

JBL CSPM-4 4-Zone Paging Microphone (Discontinued)
