Small Outdoor Restaurant Paging System with 2 JBL CSS-H15 Paging Horns, Bluetooth Mixer Amplifier and Paging Microphone

Inside the Design

This restaurant paging sound system is designed to deliver clear and intelligible voice announcements with wide sound coverage, ideal for parking lots, patios, or outdoor dining areas. It features two JBL CSS-H15 15W paging horns, providing excellent voice clarity and weather-resistant performance for reliable operation in any environment. The Pure Resonance Audio MA60BT 60W Bluetooth mixer amplifier offers flexible audio control and built-in Bluetooth for easy music streaming or paging. A Pure Resonance Audio UC1S vocal microphone with an on/off switch and an Atlas Sound DS7E adjustable height desktop mic stand ensure convenient and professional communication. Durable cables and speaker wires complete the system for dependable performance and straightforward installation.

Sound System Features

• Two JBL CSS-H15 paging horns for exceptional voice clarity and wide coverage
• Bluetooth-enabled Pure Resonance Audio MA60BT mixer amplifier for effortless streaming and control
• Professional UC1S vocal microphone with an on/off switch for clear communication
• Adjustable desktop mic stand for added convenience and stability
• Durable speaker cables and wires for a secure installation
• Perfect for restaurants, patios, and outdoor seating areas

About the System Components

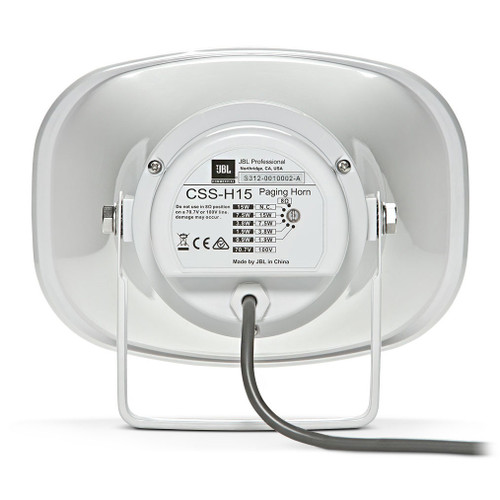

JBL CSS-H15 15W Weather Resistant Paging Horns

The two JBL CSS-H15 paging horns are designed to deliver clear and intelligible voice announcements with a wide coverage area. Their highly weather-resistant construction ensures reliable operation in outdoor environments, making them perfect for restaurant patios, parking lots, and open-air seating areas. These horns are optimized for excellent speech intelligibility, ensuring that your messages are heard clearly even in noisy settings.

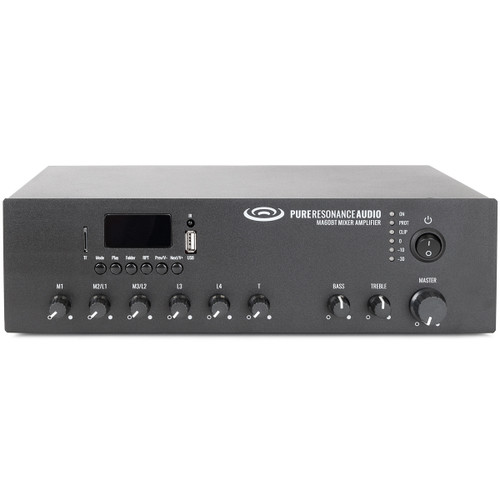

Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier

The MA60BT is a versatile 60W mixer amplifier designed for commercial audio systems. It features Bluetooth connectivity, allowing you to stream music wirelessly from any compatible device. Multiple inputs, including mic and line options, provide flexibility for both music playback and paging. Compact and powerful, this amplifier is perfect for restaurants requiring reliable and efficient audio performance.

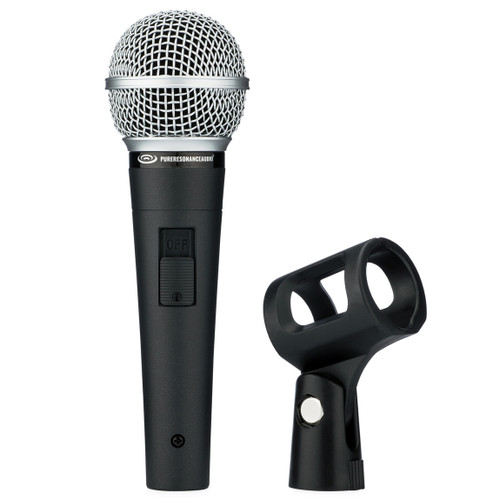

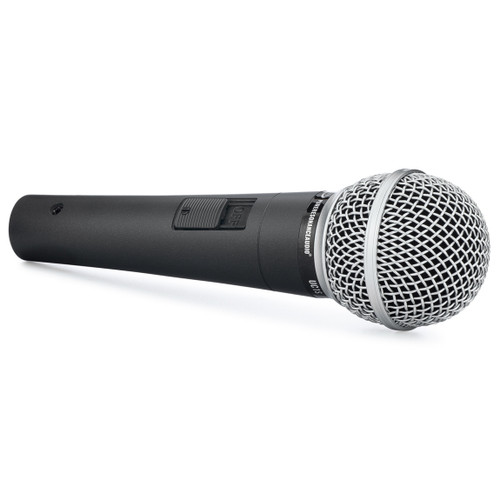

Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch

The UC1S is a high-quality vocal microphone designed for clear and professional speech. Its on/off switch adds convenient control during use, making it ideal for paging or announcements in busy restaurant environments. Durable and reliable, this microphone ensures crisp and clear audio performance for seamless communication.

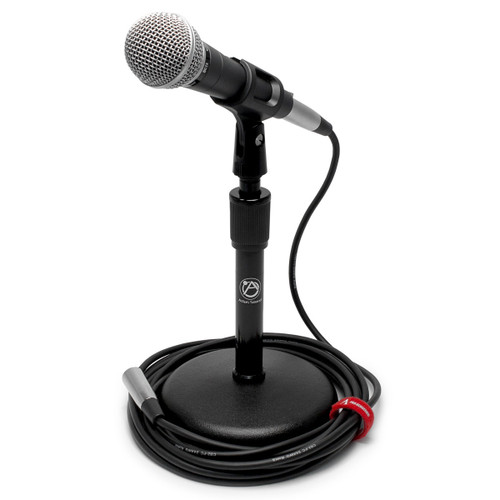

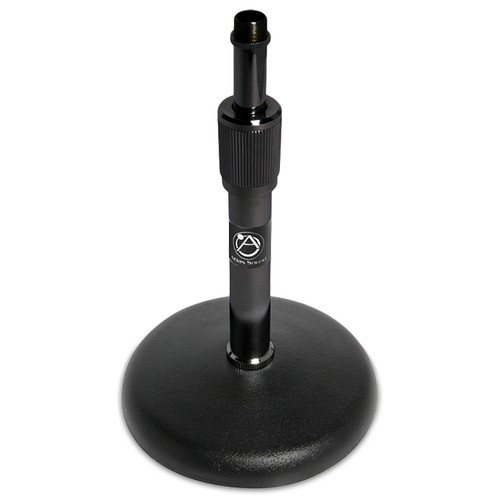

Atlas Sound DS7E Adjustable Height Desktop Mic Stand

The DS7E mic stand offers adjustable height, ensuring a stable and ergonomic setup for the included microphone. Its durable design provides reliable performance and flexibility, making it a practical addition to this restaurant paging system.

System & Component Videos

JBL CSS-H15 15W Weather Resistant Paging Horns

• Excellent voice range clarity for announcement and paging
• High sensitivity delivers high sound levels with minimal power amplification
• Wide 70° horizontal by 90° vertical coverage for medium throw applications
• Phenolic diaphragm driver for outdoor durability and high reliability
• UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass
• Built-in high-pass filter enhances reliability by protecting against low frequency damage
• Highly weather-resistant, with stainless steel bracket and hardware



Pure Resonance Audio MA60BT 7-Channel Mixer Amplifier with Bluetooth

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 60 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system



Pure Resonance Audio UC1S Ultra-Clear Dynamic Microphone

• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Dependable quality, ruggedness and reliability
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz

• (2) JBL CSS-H15 15W Weather Resistant Paging Horns
• (1) Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier
• (1) Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch
• (1) Atlas Sound DS7E Adjustable Height Desktop Mic Stand

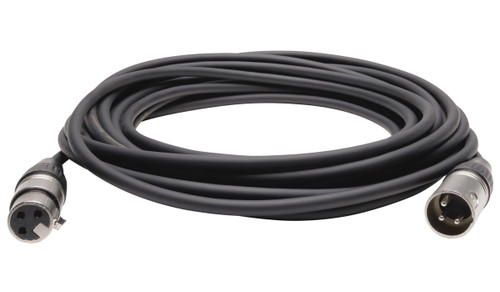

• (1) Pure Resonance Audio XLR-25 Female XLR to Male XLR Cable - 25ft
• (250') West Penn 224 18/2 Unshielded Audio Speaker Wire
