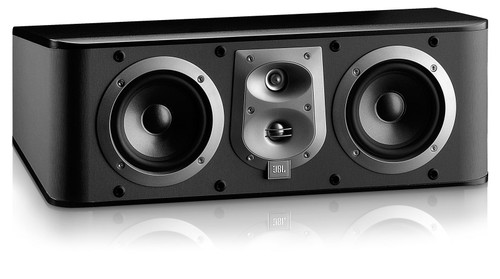

JBL ES25C 5 inch Center-Channel Loudspeaker (Discontinued)

Part #:
ES25CBK
Model #:
ES25CBK
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The video-shielded ES25C center channel speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofers and titanium-laminate tweeter.


Description

The video-shielded ES25C center channel speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofers and titanium-laminate tweeter. The dual 5" woofers provide clean, natural dialogue reproduction, and the ultrahigh-frequency driver extends response out to 40kHz, making the ES25C perfect for today's high-definition recordings and broadcasts. The tweeter is mounted in our proprietary Elliptical Oblate Spheroidal™ (EOS) waveguide for improved high-frequency dispersion anywhere in the listening room.

Cellulose-fiber cones reinforced with a polymer-coating for uniform pistonic motion, no internal resonance and, tighter and more precise bass. Thin yet extremely rigid titanium laminate dome tweeters ensuring accurate, undistorted high-frequency response - ass-reflex port offers tighter bass by extending deep bass response and eliminates unwanted turbulence. Available in a black or cherry finish with a black grille.

Features

  • 3-Way, Dual 5" (130mm) Center Channel Speaker.
  • Elegant cabinet design with slender profile combining wood-like and textured high-quality vinyl.
  • Ultra-High-Frequency (UHF) drivers capable of 40kHz for higher highs.
  • Cellulose-fiber cones reinforced with a polymer-coating for uniform pistonic motion, no internal resonance and, tighter and more precise bass.
  • EOS waveguides evenly disperse high frequencies delivering more precise imaging over a wider listening area.
  • Thin yet extremely rigid titanium laminate dome tweeters ensuring accurate, undistorted high-frequency response - Bass-reflex port offers tighter bass by extending deep bass response and eliminates unwanted turbulence.
  • Available in a black or cherry finish with a black grille.

Specifications

Maximum Recommended Amplifier Power 150W
Power Handling (Continuous/Peak) 75W/300W
Nominal Impedance 8 Ohms
Sensitivity (2.83V/1m) 90dB
Frequency Response (±3dB) 80Hz – 40kHz
Crossover Frequencies 3000Hz – 24dB/Octave12,000Hz – 18dB/OctaveStraight-Line Signal Path™ (SSP)
Ultrahigh-Frequency Driver 3/4" (19mm) Polyester-film ring radiator mounted in JBL EOS waveguide, shielded
High-Frequency Transducer 3/4" (19mm) Titanium-laminate dome in EOS waveguide, shielded
Low-Frequency Transducer Dual 5" (130mm) PolyPlas™, shielded
Magnetically Shielded Yes
Terminals Gold-plated, 5-way binding posts
Finish Black with grille
Weight per Speaker 16.7 lb (7.6kg)
Dimensions (H x W x D) 7" x 18-3/4" x 10" (178mm x 476mm x 254mm)
