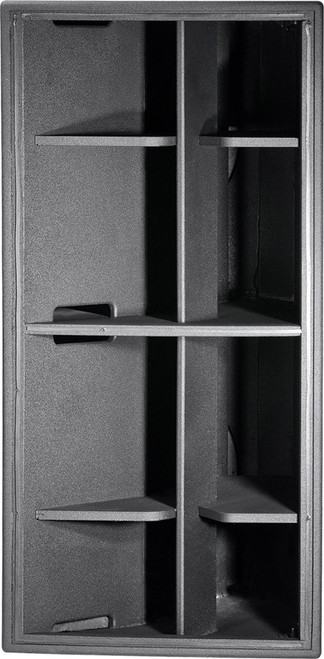

JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)
JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)
JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)
JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)
JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)
By JBL Professional

JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)

Write a Review
Part #:
MD3
Model #:
MD3
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The JBL MD3 Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market.

Description
The MD3 is a dual 15" lowfrequency system utilizing dual 2265H Differential Drive transducers in a horn-loaded enclosure providing high-output frequency response from 300 Hz down to 80 Hz. The MD3 is intended to be used in conjunction with the MD1 super tweeter, MD2 mid-high system, and MD7 ultra high-output subwoofer system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity and breathtaking purity.

Features
  • Dual JBL 2265H 3” dual voice coil dual magnetic gap Differential Drive® woofers
  • 1600 watts continuous pink noise, 6400 watts peak power handling
  • Low Distortion
  • High Fidelity

Specifications
Frequency Range (-10 dB) 70 - 415 Hz
Power Rating 1600 W (6400 W peak), 2 hrs
Frequency Response (± 3 dB) 50 - 310 Hz
Maximum SPL (1m) 136 dB-SPL cont av (142 dB peak)
System Sensitivity 112 dB SPL, 2.83V (2W) @ 1m (3.3 ft)
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Low Frequency Driver 2 x 2265H, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive drivers
Enclosure Cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish
Grille Powder coated 14 gauge perforated steel
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Dimensions (H x W x D) 45" (1143 mm) x 22" (599.8 mm) x 30" (762.5 mm)
Net Weight 161 lbs (73 kg)
