JBL MSC1 Monitor System Controller (Discontinued)

Name: JBL MSC1 Monitor System Controller (Discontinued)
Brand: JBL Professional
SKU: JBL-MSC1
Price: 299 USD
Availability: OutOfStock

Write a Review

Part #:

MSC1

Model #:

MSC1

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

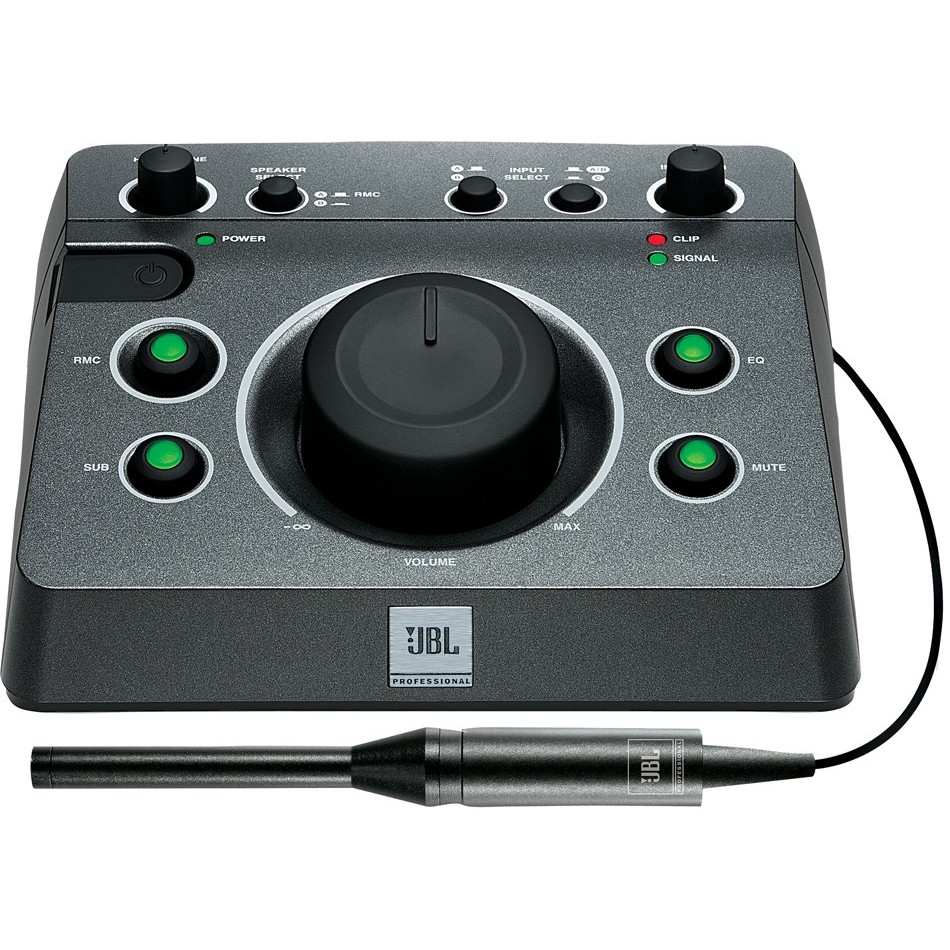

The JBL MSC1 commands all control room monitoring functions right from your mix position and provides essential “monitor strip” features found in large mixing consoles.

Description

Command all control room monitoring functions right from your mix position, with the MSC1 Monitor System Controller. In a convenient desk-top form-factor, the MSC1 provides essential "monitor strip" features found in large mixing consoles. Since the acoustics of your room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing. With RMC you can tune your monitor system for greater clarity at the mix position. With the MSC1, you’re clearly in control. Includes Calibration Microphone and MSC1 Control Center Software.

Features

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and clip indicator
Can be used with any studio monitor system

Specifications

S/N, Dynamic Range	110 dB typical, A-weighted, 20 Hz - 20 kHz
Frequency Response	+0/-0.5dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kH
A/D Converters	24 Bit 64-times Oversampling Delta-Sigma
D/A Converters	24 Bit, 8-times Oversampling Delta-Sigma
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBu, 6.5mm (1/4-inch) TRS Inputs; +12 dBu, PHONO (RCA) Inputs
Maximum Output Before Clipping	+17 dBu, 0.025% THD
Input Impedance	20k ohms 6.5mm (1/4 inch) TRS Inputs; 10k ohms PHONO (RCA) Inputs
Output Impedance	100 ohms
Sub Level	+/-10 dB in 0.25 dB increments
Bass Management Crossover	60 Hz, 80 Hz, 120 Hz
Sub Polarity	0 degrees, 180 degrees
Available Delay	96.5 cm (3 feet 2 inches) in 2.54 cm (1 inch) increments
Dimensions (H x W x D)	3.25" (83 mm) x 7.8" (198 mm) x 6.5" (165 mm)
Shipping Weight (Including Accessories)	4.3 lbs (1.96 kg)
