JBL Outdoor Stadium Speaker System with 3 All-Weather Loudspeakers, Bluetooth Mixer and Microphones

Part #:
STSS-3JBLAWCCDI1000
Model #:
STSS-3JBLAWCCDI1000
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This JBL outdoor stadium speaker system is built to meet the demanding audio needs of high energy athletics with ease and simplicity. Designed to mount on a press box of high school football stadiums, it covers both home and visitor side bleachers.

System Highlights:
- Budget: Under $9,500
Crowd Size: Small Medium Large
- Music Quality: Good Better Best
- Bluetooth Wireless Streaming
- Includes: Wireless Handheld &
  Headset Mic

Description

Inside the Design

This powerful high-performance JBL outdoor stadium speaker system provides high-quality sound reproduction with high-SPL for foreground music and clear intelligible vocals for play-by-plays, announcements and paging. This outdoor football stadium speaker system comes with three JBL AWC stadium speakers with wide, even coverage, a Bluetooth mixer, a wireless handheld and headworn microphone with an operating range of over 300' for the field and a wired handheld microphone for the press box. Gone are the days of incomprehensible audio systems, the spectators and players will truly be impressed with this incredible sounding high-performance JBL stadium speaker system.

Sound System Features:

  • Easy-to-use, durable and long-lasting for years to come
  • True Diversity wireless handheld microphones with 300' operating range
  • Weather resistant JBL loudspeakers with 128 dB SPL for high-output music and voice reproduction
  • Each loudspeaker provides wide 90° x 90° coverage to provide audio throughout the field and bleachers
  • High-quality audio for announcements, play-by-plays, paging and music
  • Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand for the pressbox
  • Bluetooth mixer amplifier to play music from any Bluetooth enabled device

About the System Components

JBL AWC129 12" 90° x 90° All-Weather Loudspeaker

The JBL Pro AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL AWC159 15" 90° x 90° All-Weather Loudspeaker

The JBL AWC159 is a compact, highly weather-resistant full-range loudspeaker ideal for speech and music in a variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Crown CDi 1000 2-Channel Power Amplifier

The Crown CDi 1000 features on-board digital signal processing (DSP) includes crossovers, EQ filters, delay, and output limiting, up to 20 user-defined DSP presets are available and much more. The CDi Series amplifiers feature an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.

Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer

The Alesis MultiMix 10 Wireless rackmount mixer is redefining the rackmount mixer category. Compact and complete, the MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for smaller clubs and venues, houses of worship, as well as mobile/traveling systems.

Features

JBL AWC129 12" All Weather Compact 2-Way Coaxial Loudspeakers

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broadband pattern control
  • 300 mm (12") woofer with Kevlar-reinforced cone and 75 mm (3") voice coil
  • 25 mm (1") exit compression driver with unique patented design and high temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 400W power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 55 Hz – 20 kHz frequency response
  • 200W 70V/100V multi-tap (built-in transformer) direct 8Ω low-impedance

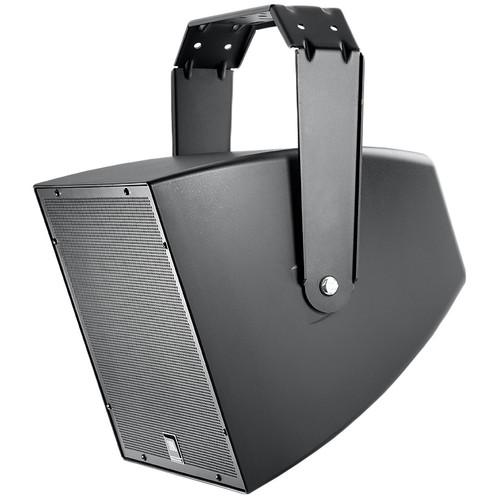

JBL AWC159 15" All Weather Compact 2-Way Coaxial Loudspeaker

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broadband pattern control
  • 380 mm (15") woofer with Kevlar-reinforced cone and 75 mm (3") voice coil
  • 38 mm (1.5") diaphragm compression driver with patented design and high temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • 52 Hz – 20 kHz frequency response
  • 300W 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance

Crown CDi 1000 500W 2-Channel Power Amplifier

  • Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs
  • Switch-mode universal power supply
  • Intuitive front-panel LCD screen for quick, easy configuration
  • Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting
  • Up to 20 user defined DSP presets are available

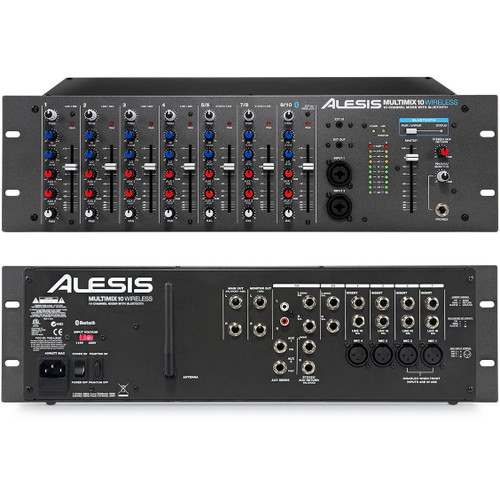

Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer

  • Convenient front panel jacks add versatility
  • Space-saving 3U rackmount design is perfect for venues and mobile rigs
  • Bluetooth streaming with simple single-button pairing
  • Articulating Bluetooth antenna for optimum reception
  • 4 high-gain mic/line preamps with inserts
  • 2-band high and low shelving EQ on every channel
  • Pre-fader and post-fader aux sends; stereo aux return

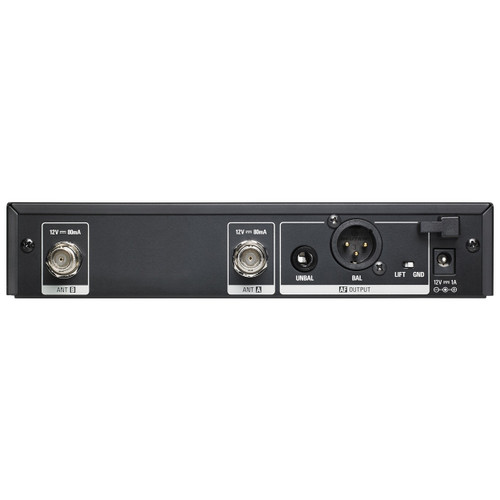

Audio-Technica ATW-3212/C510 True Diversity UHF Handheld Wireless Systems

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Audio-Technica ATW-3211/892x Wireless Microphone System with BP892xcH Headworn Mic

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

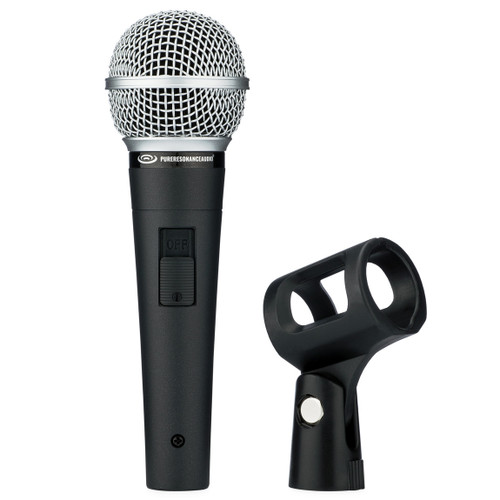

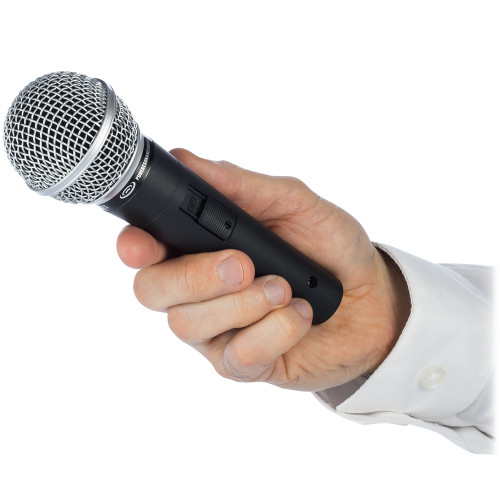

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

  • Super heavy-duty housing
  • Built-in wind and breath "pop" noise filter
  • Ultra dependable quiet switch
  • Steel mesh grille
  • SwitchCraft connector
  • Frequency response tailored for vocals
  • Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Supplied with break-resistant stand adapter
  • Frequency response: 50 to 16,000 Hz
  • For outdoor and indoor events

System Includes

  • (2) JBL AWC129-BK All-Weather Compact 2-Way 90° x 90° Coaxial Loudspeaker with 12" LF (Peak 128 dB)
  • (1) JBL AWC159-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF (Peak 131 dB)
  • (1) Crown CDi 1000 2-Channel 500W Power Amplifier
  • (1) Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer
  • (1) Audio-Technica ATW-3212/C510 True Diversity UHF Handheld Wireless System
  • (1) Audio-Technica ATW-3211/892x 3000 Series Fourth Generation Wireless Microphone System with BP892xcH Headworn Mic
  • (1) Pure Resonance Audio UC1S Vocal Microphone
  • (1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit

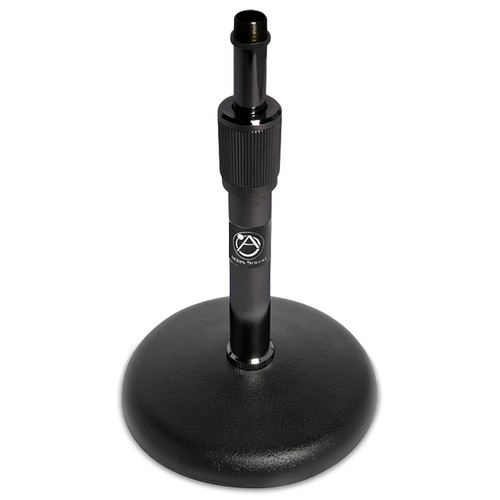

  • (1) Atlas Sound DS7E Desktop Mic Stand
  • (1) SKB 1SKB-R10U 10U Roto Rack

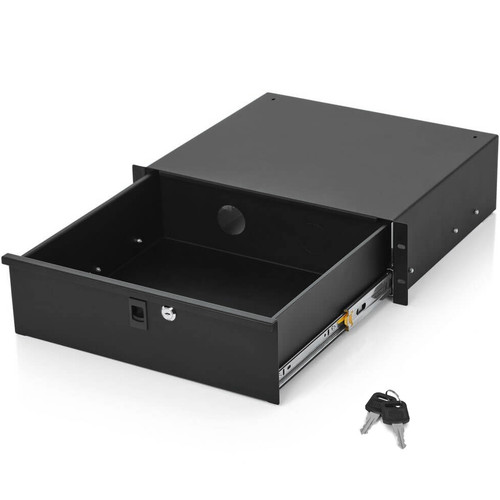

  • (1) Gator GRW-DRW3 3U Lockable Rack Drawer
  • (1) Audio-Technica AT8631 Joining Plate for Two Half-Rack Wireless Receivers
  • (1) XLR to XLR Microphone Cable - 25ft
  • (2) XLR to XLR Patch Cables - 3ft

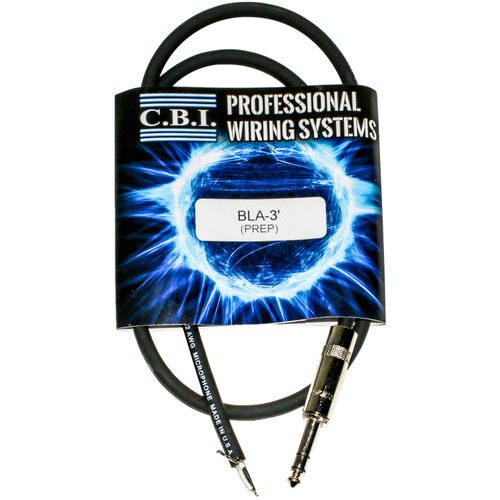

  • (2) CBI BLA-3-PREP 1/4" TRS to Prepped Wire Patch Cables - 3ft

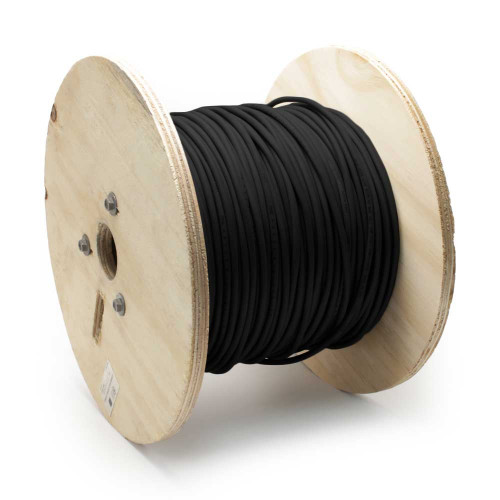

  • (500') West Penn AQ226 14/2 Aquaseal Fire-Alarm Speaker Wire
