Inside the Design
This complete Community stadium sound system is designed to deliver powerful, clear audio for outdoor athletic facilities, stadiums, arenas, and large gathering areas where reliable sound coverage and speech intelligibility are essential. Featuring two Community R.5-94TZ weather-resistant loudspeakers and one Community R2-52Z long-throw horn-loaded loudspeaker, the system combines wide-area sound reinforcement with focused, long-distance audio projection. The R.5-94TZ speakers feature controlled 90° x 40° coverage patterns, allowing sound to be directed toward bleachers, spectator seating, and designated listening areas, while the R2-52Z provides a narrower 50° x 20° coverage pattern for projecting clear announcements and music toward more distant areas. Built for demanding outdoor environments, these high-performance loudspeakers provide dependable sound reinforcement for football stadiums, baseball fields, soccer complexes, racetracks, and other large outdoor venues.
At the center of the system, the Alesis MultiMix 10 Wireless 10-channel rackmount mixer provides flexible control over microphones, music, and other audio sources. Operators can connect wired and wireless microphones, media players, laptops, and compatible auxiliary equipment, with individual channel controls for adjusting and balancing sound throughout an event. Built-in Bluetooth allows convenient wireless music streaming from compatible devices, while the Tascam CD-400U CD and media player adds CD, USB, SD card, Bluetooth, and AM/FM playback options. This versatility makes it easy to provide pre-game entertainment, team introductions, walk-up songs, halftime music, sponsor messages, and prerecorded announcements. The Crown CDi 4000 2-channel power amplifier delivers reliable, high-power amplification with built-in DSP processing for speaker optimization, equalization, crossover filtering, and output protection.
For live announcements and presentations, the system includes the Shure SLXD124+/85M digital wireless combo system with an SM58 handheld microphone and WL185m lavalier microphone, providing flexible microphone options for different event activities. The handheld microphone is ideal for on-field announcements, award ceremonies, halftime presentations, and special guest introductions, while the lavalier microphone offers convenient hands-free operation for presenters and announcers. Both microphones share a single-channel wireless receiver and can be used individually as needed. Two Shure PA805SWB directional antennas, a UA221 passive antenna splitter/combiner kit, and two 25ft UA825 antenna extension cables provide flexible options for positioning wireless reception equipment to accommodate the venue's layout. For dependable wired operation, the included Pure Resonance Audio UC1S dynamic vocal microphone pairs with an adjustable Atlas Sound desktop stand, making it an excellent solution for play-by-play commentary and announcements from a stadium press box or control area.
Designed for organized operation and equipment protection, the SKB 1SKB-R10U 10U roto-molded rack case houses the system's professional audio components in one convenient setup. The rack accommodates the Alesis mixer, Crown power amplifier, Tascam media player, Shure wireless receiver, and Juice Goose JG 8LED power distribution center, while two Gator 1U steel flat panels provide a clean, professional appearance by covering unused rack spaces. The Juice Goose power distribution center supplies convenient AC power connections and includes adjustable LED rack lighting for improved visibility when operating equipment in dimly lit environments. Complete with professional audio cables and 500 feet of West Penn 12/2 Aquaseal speaker wire, this versatile stadium sound system provides a practical solution for music playback, announcements, play-by-play commentary, and public address applications across outdoor sports facilities and entertainment venues.
Sound System Features:
- Two Community R.5-94TZ weather-resistant loudspeakers deliver powerful, high-quality sound with excellent speech intelligibility and controlled 90° x 40° coverage for outdoor stadium applications
- The Community R2-52Z long-throw loudspeaker provides focused 50° x 20° coverage for projecting clear announcements and music toward distant seating areas and other designated listening locations
- Durable, weather-resistant loudspeaker enclosures and components support dependable performance in demanding outdoor environments
- The combination of wide-coverage and long-throw loudspeakers allows flexible speaker placement to accommodate different stadium layouts, seating arrangements, and listening areas
- The Crown CDi 4000 2-channel power amplifier delivers 1200 watts per channel at 4 ohms and supports 70V distributed audio applications with built-in DSP processing for speaker optimization and protection
- The Alesis MultiMix 10 Wireless rackmount mixer provides 10-channel audio mixing with multiple microphone and line inputs, individual channel controls, and built-in Bluetooth streaming
- Multiple audio inputs allow operators to manage announcements, play-by-play commentary, music, and other compatible audio sources from one centralized mixing console
- The Tascam CD-400U provides CD, USB, SD card, Bluetooth, and AM/FM playback for pre-game entertainment, walk-up songs, team introductions, halftime music, and prerecorded announcements
- The Shure SLXD124+/85M digital wireless combo system includes an SM58 handheld microphone and WL185m lavalier microphone for flexible wireless vocal applications using one microphone at a time
- Shure SLX-D+ digital wireless technology provides clear 24-bit audio, automatic setup, and reliable RF performance for professional announcements and presentations

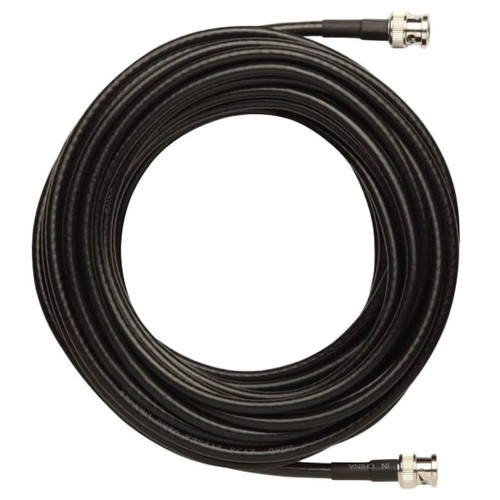

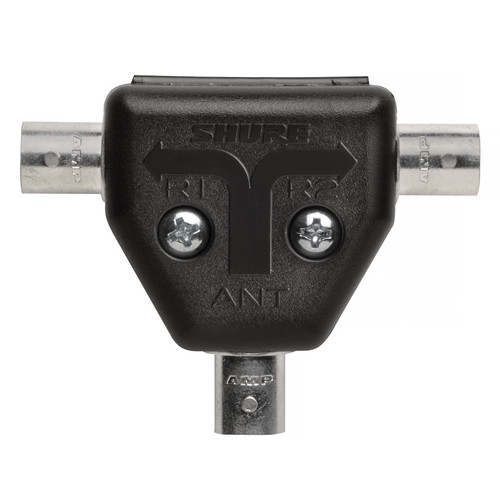

- Two Shure directional antennas, a passive antenna splitter/combiner kit, and 25ft antenna extension cables provide flexible options for remote antenna positioning and wireless system integration
- The Pure Resonance Audio UC1S dynamic vocal microphone features an on/off switch and pairs with the adjustable Atlas Sound desktop stand for convenient play-by-play commentary and public address applications
- The Juice Goose JG 8LED provides eight rear AC outlets, basic surge protection, and adjustable LED rack lighting for convenient equipment operation
- The SKB 10U roto-molded rack case provides durable protection and organized storage for the system's professional audio equipment
- Two Gator 1U steel flat panels cover unused rack spaces for a clean, professional equipment layout

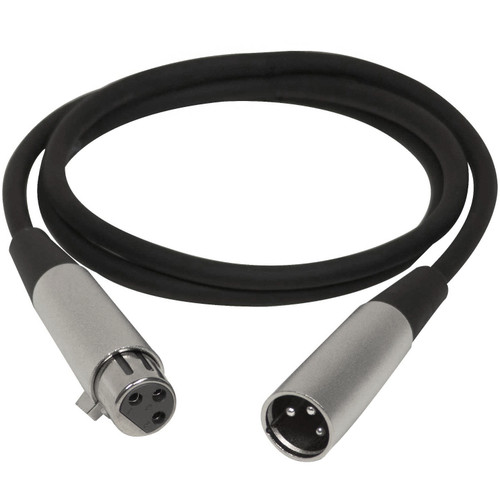

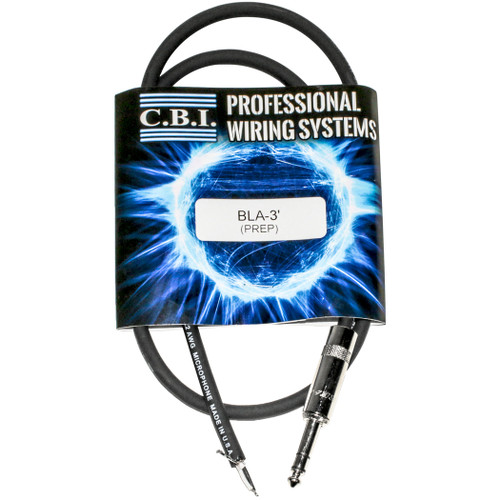

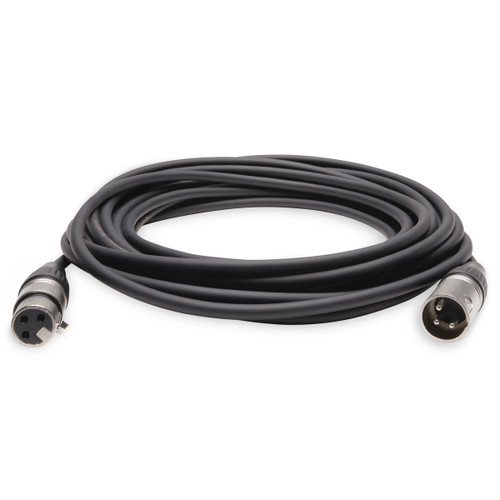

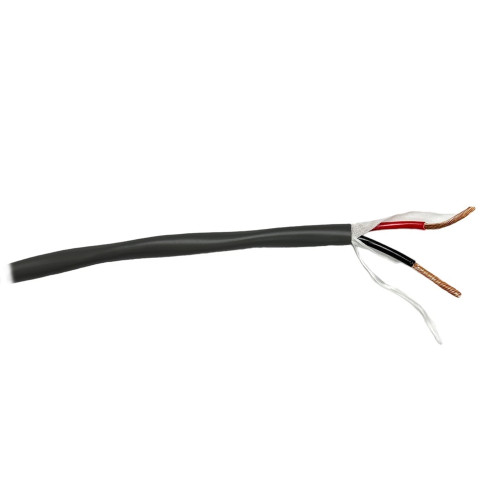

- Included professional audio cables and 500 feet of West Penn 12/2 Aquaseal speaker wire support reliable system connections and outdoor loudspeaker installations
About the System Components

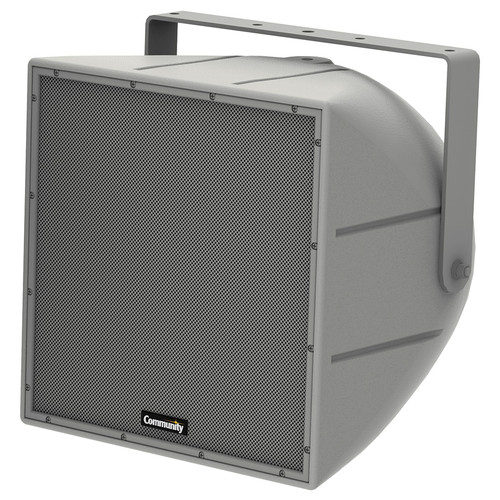

Community R.5-94TZ 12" 2-Way 90° x 40° Horn-Loaded Weather-Resistant Loudspeakers
The Community R.5-94TZ is a high-performance, 2-way horn-loaded loudspeaker designed to deliver powerful, intelligible sound for stadiums, athletic fields, and outdoor venues. Featuring a 12" low-frequency driver, high-frequency compression driver, and controlled 90° x 40° coverage pattern, it provides focused sound projection and clear reproduction of speech and music. Its weather-resistant, UV-stable rotomolded enclosure, weather-treated components, and corrosion-resistant grille provide durability in demanding outdoor environments. A built-in 70V/100V autoformer with selectable wattage taps supports flexible distributed audio installations, while the included mounting yoke allows secure positioning and aiming for optimized coverage.

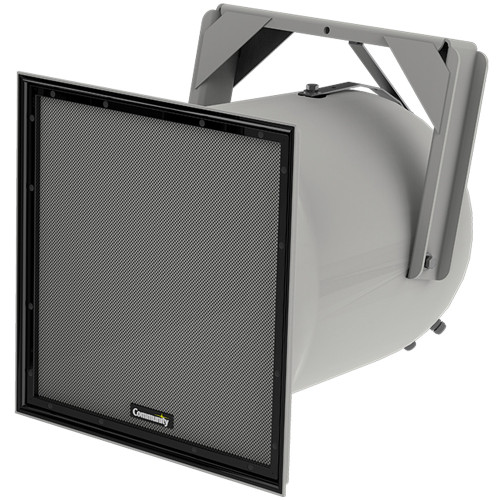

Community R2-52Z Horn-Loaded Loudspeaker
The Community R2-52Z is a high-output, 3-way horn-loaded loudspeaker designed for long-distance sound projection in large indoor and outdoor environments. Featuring dual 12" low-frequency drivers, high-efficiency midrange and high-frequency compression drivers, and a controlled 50° x 20° coverage pattern, it delivers powerful sound with exceptional vocal clarity and low distortion. Its weather-resistant fiberglass enclosure and protective grille provide durability for demanding installations, while the high-efficiency horn-loaded design helps maintain sound intelligibility over longer distances. The R2-52Z is an excellent choice for projecting announcements and music toward distant bleachers, spectator seating, and other targeted listening areas.

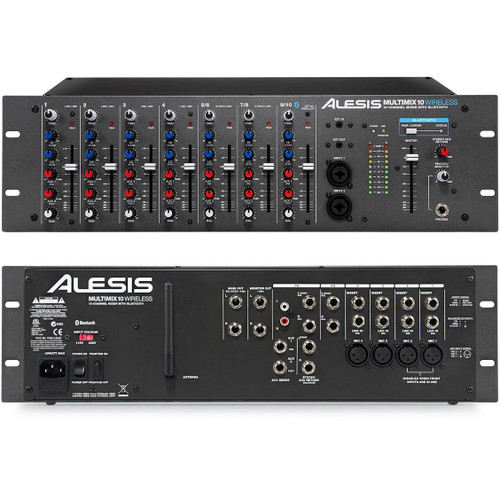

Alesis MultiMix 10 Wireless Rackmount Mixer with Bluetooth
The Alesis MultiMix 10 Wireless is a versatile 10-channel analog mixer designed to provide professional audio control in a compact 3U rackmount design. Featuring four microphone/line preamps with phantom power, multiple stereo inputs, and individual channel EQ controls, the MultiMix 10 allows operators to connect microphones, media players, laptops, and other compatible audio sources. Built-in Bluetooth provides convenient wireless music streaming from smartphones, tablets, and computers, while balanced main outputs and auxiliary sends offer flexible audio routing options. Its easily accessible front-panel connections, intuitive controls, and durable construction make it an excellent choice for stadium announcements, music playback, and professional public address applications.

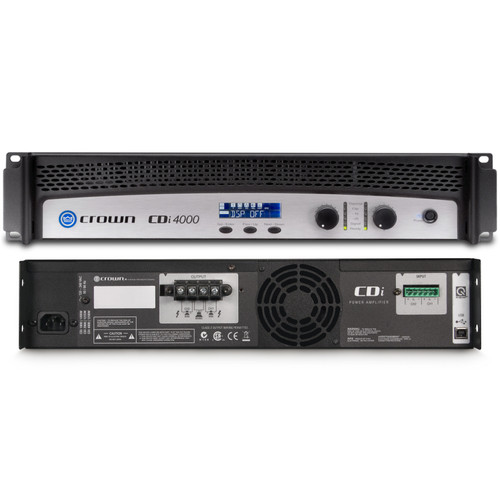

Crown CDi 4000 Power Amplifier
The Crown CDi 4000 is a professional 2-channel power amplifier designed to deliver powerful, reliable performance for installed sound systems and large-scale audio applications. Providing 1200 watts per channel at 4 ohms and supporting 70V and 140V output configurations, the CDi 4000 offers flexible amplification options for professional loudspeaker systems. Built-in DSP processing includes crossover filters, equalization, delay, and output limiting for precise speaker optimization and protection. Its intuitive front-panel LCD display, user-definable presets, integrated protection circuitry, and durable 2U rackmount design make it a dependable solution for stadiums, athletic facilities, arenas, and commercial sound reinforcement applications.

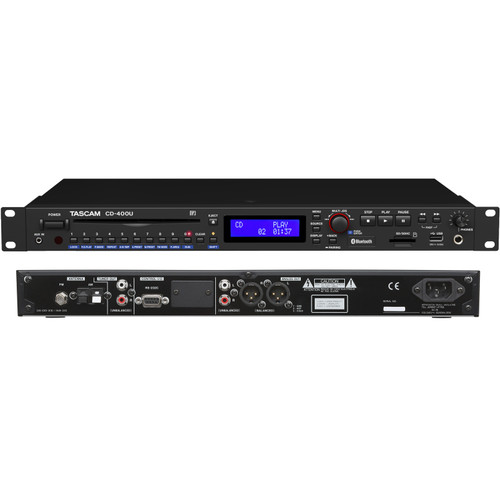

Tascam CD-400U CD and Media Player with AM/FM and Bluetooth
The Tascam CD-400U is a professional media player offering CD, USB, SD card, Bluetooth, and AM/FM playback options for stadium entertainment and public address applications. Operators can play pre-game music, team introductions, walk-up songs, sponsor messages, and prerecorded announcements from multiple sources, while Bluetooth provides convenient wireless streaming from compatible smartphones and tablets. Balanced XLR and unbalanced RCA outputs allow flexible integration with professional audio mixers, while Power-on Play, Panel Lock, and the included remote control simplify operation. Its compact 1U rackmount design provides convenient installation alongside the system's other audio equipment.

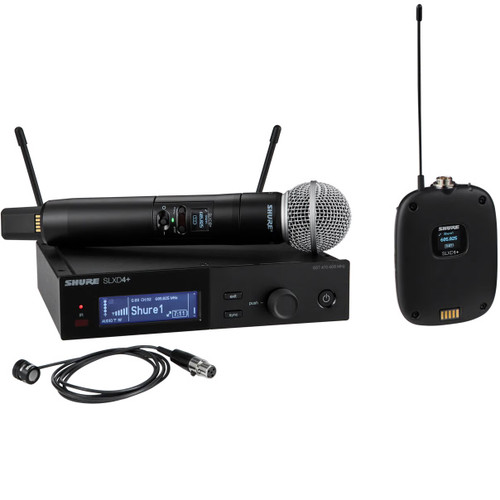

Shure SLXD124+/85M Digital Wireless Combo System with SM58 Handheld and WL185m Lavalier Microphones
The Shure SLXD124+/85M digital wireless combo system provides flexible, professional-quality wireless audio for announcements, presentations, and live events. Featuring an SLXD2+ handheld transmitter with the legendary SM58 cardioid dynamic microphone capsule, an SLXD1+ bodypack transmitter, and a WL185m low-profile cardioid lavalier microphone, the system allows users to select the microphone style that best suits their application. Shure SLX-D+ technology delivers transparent 24-bit digital audio, automatic setup, and reliable RF performance, while the single-channel SLXD4+ receiver provides convenient system control and monitoring. The handheld microphone is ideal for on-field announcements and presentations, while the lavalier provides hands-free operation for speakers and presenters. The included receiver supports one microphone transmitter at a time.

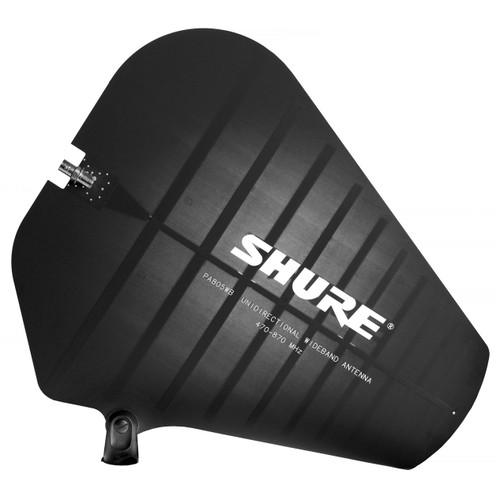

Shure PA805SWB Directional Antennas for PSM Systems
The Shure PA805SWB is a directional wideband antenna designed to provide focused RF reception or transmission for compatible professional wireless systems. Operating across a wide UHF frequency range, the antenna allows flexible positioning to help improve signal reception and reduce interference from unwanted directions. Its directional design is useful for stadiums, athletic facilities, and other large venues where wireless equipment may need to operate at a distance from the receiver. Paired with compatible antenna extension cables and properly configured RF equipment, the PA805SWB supports flexible antenna placement for professional wireless microphone applications.

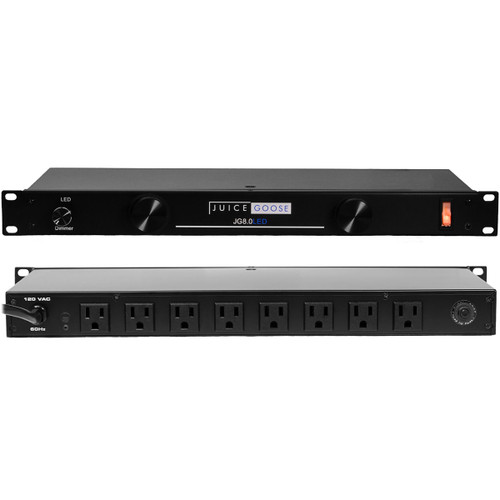

Juice Goose JG 8LED Power Distribution Center with LED Lights
The Juice Goose JG 8LED provides convenient power distribution and rack lighting for professional audio systems. Featuring eight rear-panel AC outlets and a 15-amp capacity, the JG 8LED allows multiple audio components to receive power from a centralized location. Built-in basic surge and noise protection helps safeguard connected equipment from common electrical disturbances, while two retractable, dimmable LED lights provide adjustable illumination for rack-mounted equipment. Its compact 1U rackmount design and illuminated master power switch make it a practical addition to stadium press boxes, equipment rooms, and other professional audio installations.

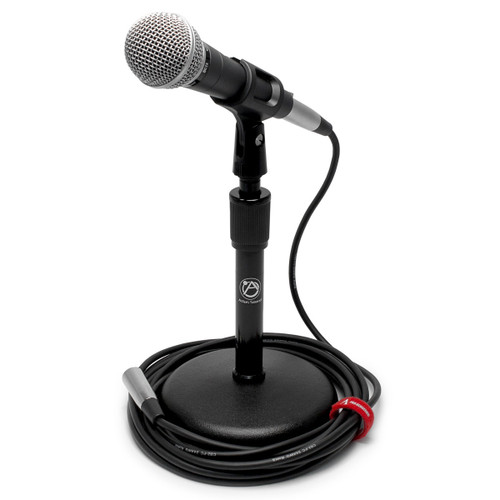

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
The Pure Resonance Audio UC1S dynamic vocal microphone provides clear, natural speech reproduction for stadium announcements, play-by-play commentary, and public address applications. Its cardioid pickup pattern helps isolate the primary sound source while minimizing unwanted background noise and feedback. A built-in on/off switch provides convenient microphone control, while the rugged housing, steel mesh grille, and integrated wind and breath noise filter support dependable operation. Paired with the Atlas Sound desktop microphone stand, the UC1S provides a practical hands-free solution for press box announcers and public address personnel.
Atlas Sound DS7E 8" - 13" Adjustable Height Desktop Mic Stand - Ebony
The Atlas Sound DS7E is a durable, adjustable desktop microphone stand designed to provide stable microphone positioning for stadium announcers, presenters, and public address operators. Its 8" to 13" adjustable height allows comfortable microphone placement at a desk, podium, or press box workstation, while the weighted cast iron base provides dependable stability. Featuring a professional ebony finish and compact design, the DS7E pairs with the included Pure Resonance Audio UC1S microphone to provide convenient hands-free operation during play-by-play commentary and announcements.

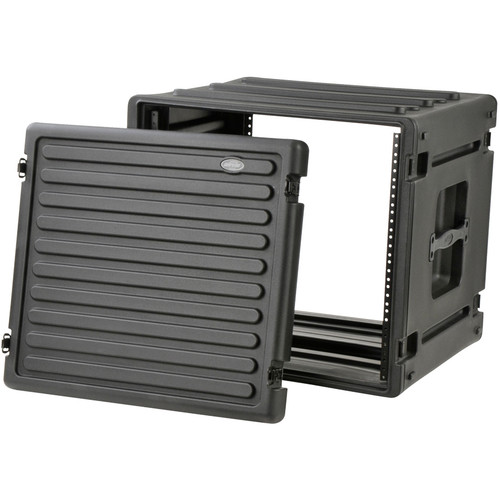

SKB 1SKB-R10U 10U Roto Rack
The SKB 1SKB-R10U is a durable 10U roto-molded equipment rack designed to protect professional audio components during transportation, storage, and operation. Its rugged polyethylene construction provides dependable resistance to impact and demanding handling conditions, while removable front and rear lids allow convenient access to equipment and connections. The rack features standard 19" mounting rails for securely installing the system's mixer, amplifier, wireless receiver, media player, and power distribution equipment. Its portable design makes it well-suited for stadium press boxes, audio control rooms, mobile sound applications, and other professional installations requiring organized equipment protection.
