This JBL auditorium sound system combines four PRX412M 12" two-way stage monitors and loudspeakers with two PRX418S 18" subwoofers to provide full-range sound reinforcement for auditoriums, theaters, houses of worship, schools, live performance venues, and other large spaces. The PRX412M features a 12" woofer and 1" polymer diaphragm compression driver with a 90° x 50° coverage pattern, while the PRX418S extends the system's low-frequency output with an 18" JBL Selenium driver and an 800W continuous power rating. Three Crown XLS 2502 DriveCore 2 Series two-channel power amplifiers provide dedicated amplification, with up to 440W per channel at 8Ω.
The Yamaha MG16XU 16-channel mixing console provides flexible input and routing capability with up to 10 microphone and 16 line inputs, four GROUP buses, a stereo bus, four AUX sends, D-PRE microphone preamps, 1-knob compressors, and SPX effects. The Samson Concert 288 All-In-One dual-channel UHF wireless system adds two wireless microphone channels with dual balanced XLR outputs and a mixed 1/4" output. CBI XLR and TRS-to-XLR cables provide the necessary signal connections, while 500 feet of West Penn 227 12/2 speaker wire provides speaker-level cabling for the system.
Designed as a complete passive PA system, this package combines full-range loudspeakers, dedicated subwoofers, professional amplification, mixing, wireless microphones, and signal and speaker cabling. The combination of PRX412M speakers and PRX418S subwoofers provides a two-way main or monitoring solution with additional low-frequency reinforcement, while the Yamaha mixer and Crown amplifiers provide the signal management and amplification needed for live sound and presentation applications.

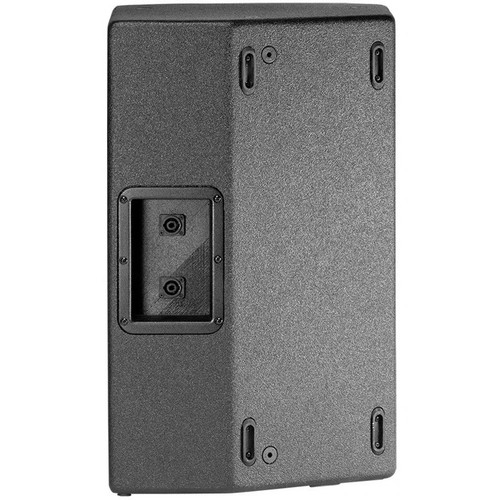

The JBL PRX412M is a portable 12" two-way speaker system designed for main sound reinforcement or monitoring applications. It combines a 12" woofer with a 1" polymer diaphragm compression driver and provides a 90° x 50° coverage pattern. The PRX412M has a 50 Hz - 20 kHz frequency range, 62 Hz - 19 kHz frequency response, 95 dB sensitivity, 8Ω nominal impedance, and 300W continuous power handling with 1,200W peak power handling. Its dual-angle pole-mount socket, M10 suspension points, SonicGuard, DuraFlex enclosure finish, and protective steel grille support a range of stage and sound reinforcement applications.
The JBL PRX418S is an 18" passive subwoofer designed to complement JBL PRX two-way speaker systems. It features an 18" JBL Selenium driver, large vent area, DuraFlex™ enclosure finish, heavy-duty 16-gauge grille, and ergonomically engineered handles. The PRX418S provides a 35 Hz - 250 Hz frequency range, 52 Hz - 120 Hz frequency response, 95 dB sensitivity, 8Ω nominal impedance, 800W continuous power handling, and 3,200W peak power handling.

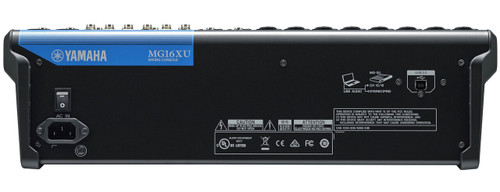

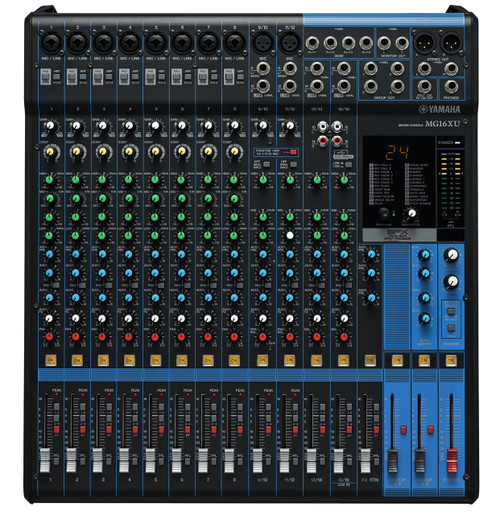

The Yamaha MG16XU is a 16-channel mixing console designed for live sound, installation, and production applications. It provides up to 10 microphone and 16 line inputs through eight mono and four stereo channels, along with four GROUP buses, one stereo bus, and four AUX sends, including FX. The console features D-PRE microphone preamps with an inverted Darlington circuit, 1-knob compressors, built-in SPX effects with 24 programs, and USB Audio Class 2.0 connectivity with support for up to 192 kHz, 24-bit audio.
The Crown XLS 2502 is a two-channel DriveCore 2 Series power amplifier designed for portable and professional PA applications. It delivers 440W per channel at 8Ω, 775W per channel at 4Ω, and up to 1,200W per channel at 2Ω. The amplifier features Crown DriveCore technology, expanded DSP functionality with filters per channel, Peakx limiters, selectable 1.4Vrms or 0.775Vrms input sensitivity, XLR, 1/4", and RCA inputs, an integrated PureBand crossover system, and forced-air cooling.
The Samson Concert 288 All-In-One is a dual-channel, frequency-agile UHF wireless system designed for vocal performances, presentations, Q&A sessions, houses of worship, education, and theater or production applications. It provides up to a 300-foot line-of-sight operating range and includes dual balanced XLR outputs for routing the two wireless signals to separate mixer channels, plus a 1/4" unbalanced mix output. The system includes a Q6 dynamic handheld transmitter, a beltpack transmitter with lavalier and headset microphone options, and a rack-mountable receiver.
