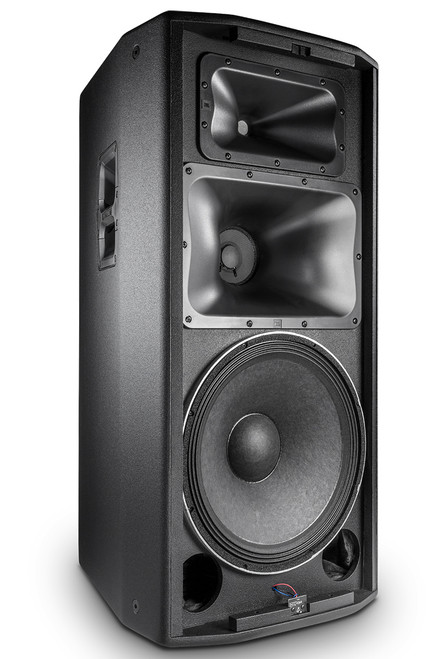

The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15" woofer, 6.5" midrange transducer, and 1.5" compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.
| Maximum SPL Output | 138 dB Peak |
|---|---|
| Frequency Range (-10 dB) | Normal: 41 Hz – 20 kHz Boost: 41 Hz – 20 kHz |
| Frequency Response (±3 dB) | Normal: 50 Hz – 18.25k Boost: 48 Hz - 20k |
| Input Connectors | 2 x Balanced XLR / 1/4 inch Input, 2 x Unbalanced RCA Input |
| Input Impedance | 20K Ohms (Balanced), 10K Ohms (Unbalanced) |
| Signal Indicators | Limit: Yellow LED Indicates Peak Output Has Been Reached and DSP Limiter is Acting Signal: Green LED Indicates Signal Present Power: Blue Indicates System Has Power and Ready To Pass Audio |
| EQ | User Selectable Presets For Normal or Boost, Advanced EQ Settings Available Using Wi-Fi and PRX Connect Application. |
| Dynamic Control (Input) | DBX Type IV Limiter Circuit |
| Crossover Frequency | 580 Hz, 2.1 kHz |
| Design | Highly Efficient Class-D Amplifier |
| Power Rating | 1500W (750W x 2) |
| AC Power Input | 100V - 240V ~ 50/60 Hz |
| LF Driver | 1 x JBL 275G 380 mm (15 in) Woofer |
| MF Driver | 1 x JBL 196H 165 mm (6.5 in) Horn-Loaded Midrange Transducer |
| HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5”) Annular Polymer Diaphragm, Neodymium Compression Driver |
| Coverage Pattern | 90° x 50° Nominal |
| Directivity Index (DI) | 10.5 dB |
| Directivity Factor (Q) | 11.2 |
| Enclosure | Trapezoidal, 18 mm, Plywood |
| Suspension / Mounting | 12 x M10 Suspension Points |
| Transport | 2 x Integrated Handles with Injection Molded Backing Cup |
| Finish | Obsidian DuraFlex Finish |
| Grille | Powder Coated, Obsidian, 16 Gauge Perforated Steel with Acoustical Transparent Black Cloth Backing |
| Dimensions (H x W x D) | 36.9" (938 mm) x 17.5" (446 mm) x 21.2" (539 mm) |
| Net Weight | 77 lbs (34.9 kg) |
| Gross Weight | 85 lbs (38.6 kg) |
Usually arrives in 5-9 business days.
