- Description
Details

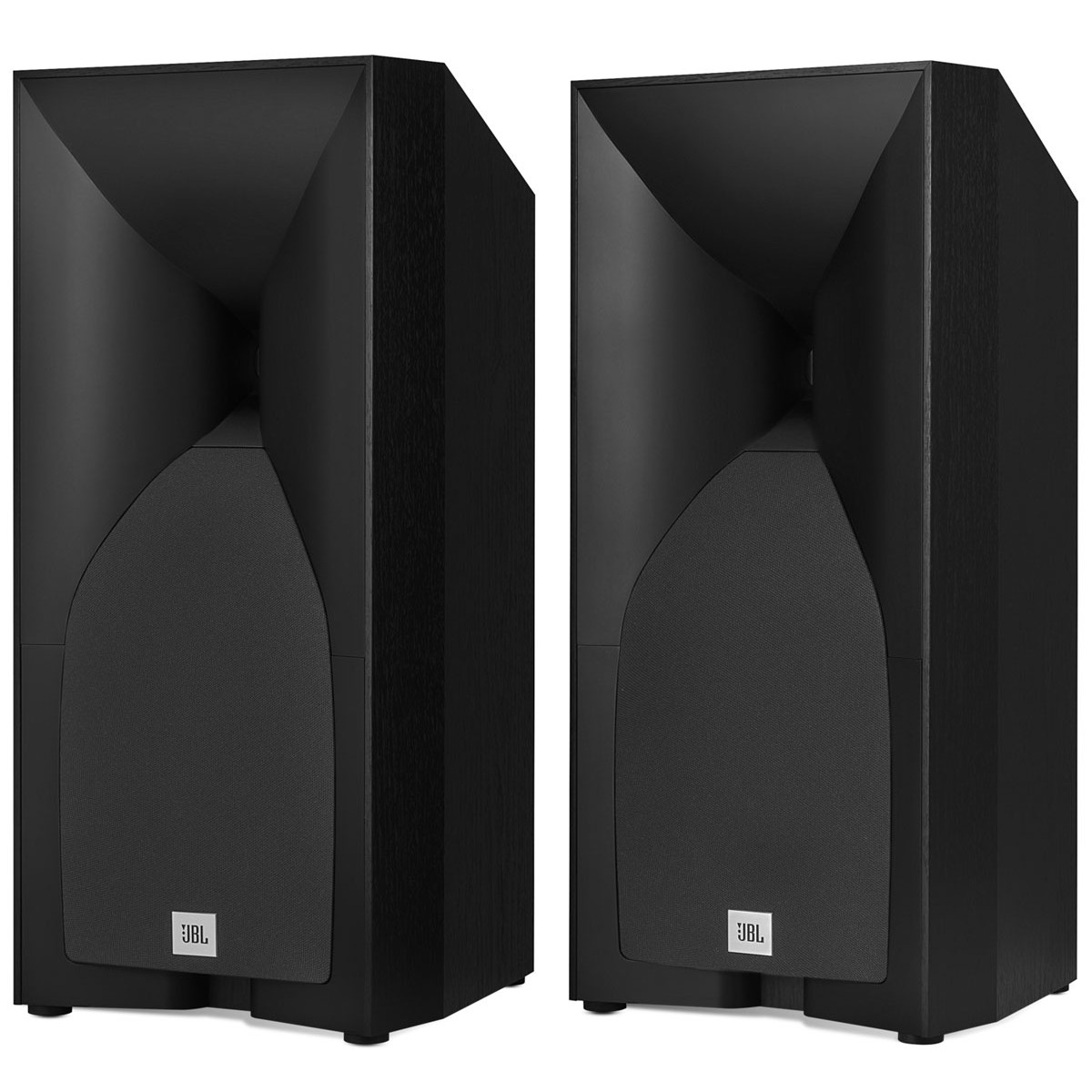

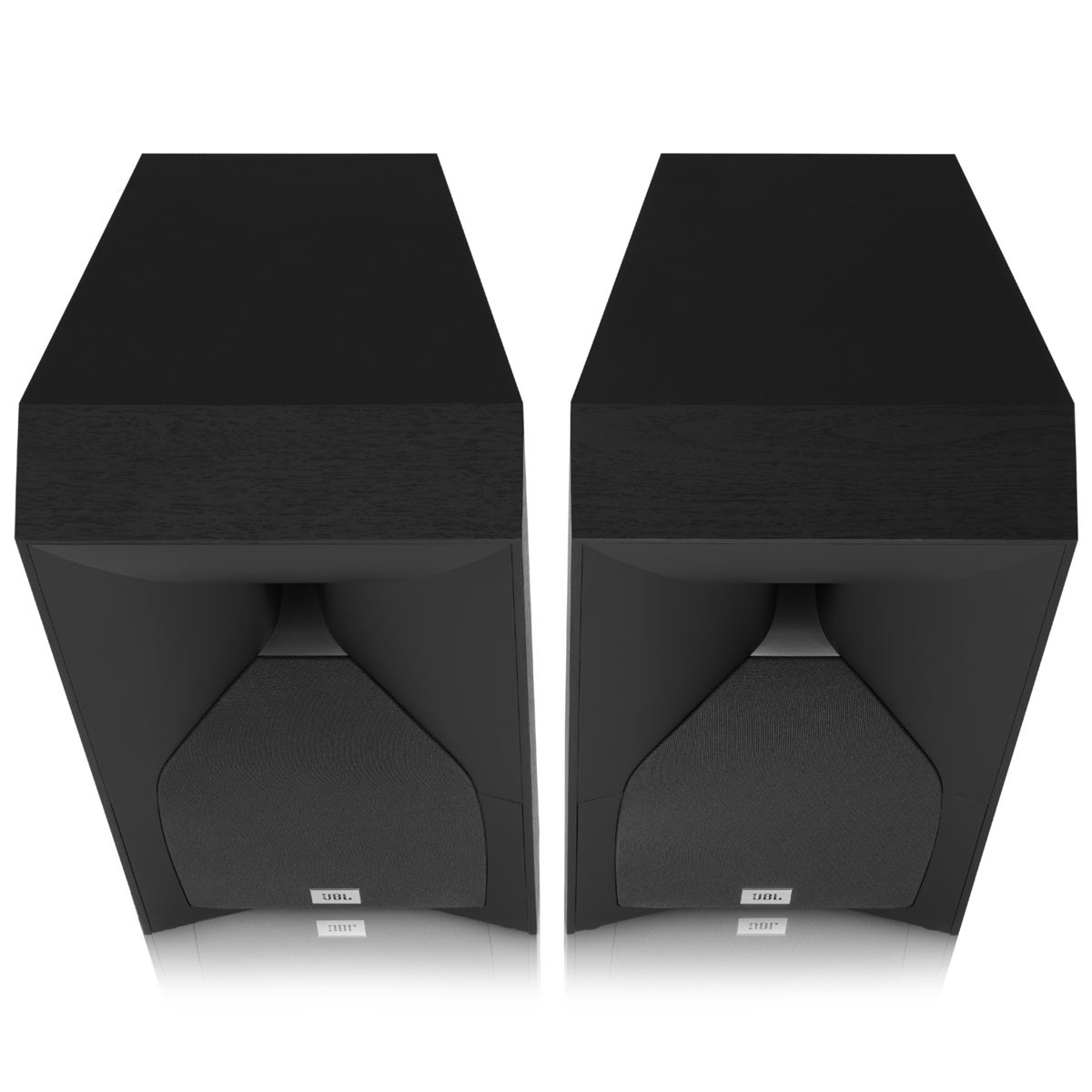

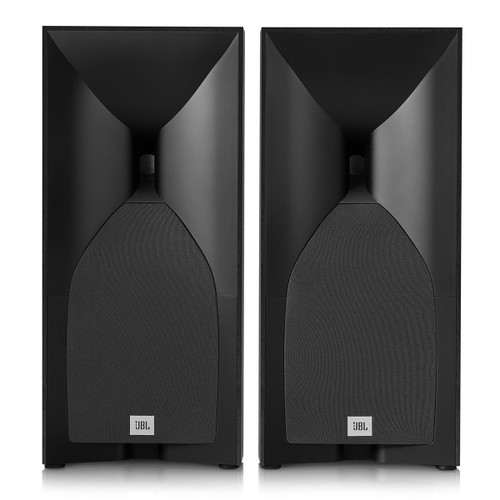

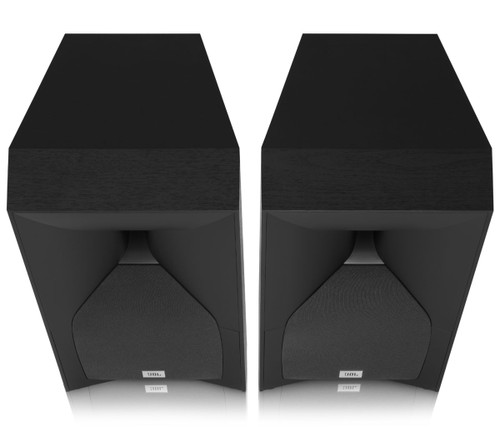

The JBL® Studio 530 bookshelf loudspeaker brings professional-quality sound to the home experience. The Studio 530 takes the technology that JBL engineers developed for pro-audio loudspeakers and uses it to deliver accurate and powerful sound to your living room. And it’s versatile: the Studio 530 can replay a left-channel signal, a right-channel signal or surround-sound channels. The Studio 530 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the technology that JBL concert-sound systems use – to deliver concise, sustained high frequencies. A 5-1/4-inch (130-millimeter) PolyPlas™ cone with a Symmetrical Field Geometry™ (SFG) magnet assembly handles low frequencies.
- Features
Features
- 5-1/4" low-frequency transducer with Symmetrical Field Geometry (SFG) magnet assembly
- 1" high-frequency compression driver
- One-piece Teonex tweeter diaphragm/surround with 1" voice coil and neodymium magnet
- Glass-filled ABS Bi-Radial high-frequency horn
- Ribbed PolyPlas woofer cone
- Rubber woofer surround
- 1-1/2"-diameter woofer voice coil
- Cast aluminum woofer frame
- 3/4" MDF enclosure
- Exclusive JBL design
- Low loss, 2-way crossover network
- Rear-mounted bass port
- Dual gold-plated binding posts
- Bi-wire-capable
- Specification
Low-Frequency Transducer 5.25" (130 mm) PolyPlas Cone with Symmetrical Field Geometry Magnet Structure Cast Frame and Rubber Surround, Magnetically Shielded High-Frequency Transducer 1" (25 mm) Compression Driver with Neodyminium Magnet and One-piece Teonex Diaphragm on a Glass-filled ABS Bi-Radial Horn, Magnetically Shielded Recommended Amplifier Power 125 Watts Frequency Response (-6dB) 45Hz-40kHz Nominal Impedance 6 ohms Sensitivity 86 dB (2.83V @ 1m) Crossover Frequencies 1.5 kHz Connector Type Dual Gold-Plated Binding Posts (Bi-Wire Capable) Finish Black Dimensions (H x W x D) 18.38" (467 mm) x 8.43" (214 mm) x 8.75" (222 mm) Weight 17 lbs (7.7 kg) - Documents
Documents
- In The Box
In The Box
- (2) Studio 530 Bookshelf Loudspeakers
- (2) Horn Covers
- (2) Port Tube Inserts
- (2) Cards with adhesive rubber feet
- (1) Owner’s Manual
