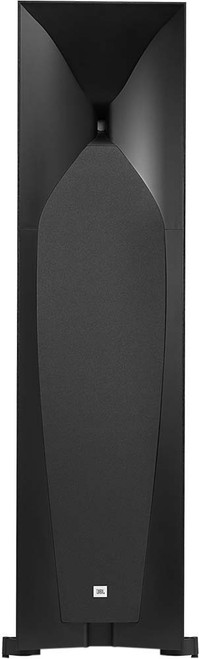

JBL Studio 590 Dual 8" Floorstanding Loudspeaker (Discontinued)

The JBL® Studio 590 floorstanding loudspeaker brings professional-quality sound to the home experience. The Studio 590 uses the technology that JBL engineers developed for pro-audio loudspeakers to deliver accurate, powerful sound to your living room. The Studio 590 floorstanding speaker is a perfect complement to other members of the Studio 5 Series, including the Studio 530 bookshelf and the Studio 520C center-channel loudspeakers. The Studio 590 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the same technology used in JBL concert sound systems – to deliver concise, sustained high frequencies. A pair of 8-inch (200-millimeter) PolyPlas™ cones with Symmetrical Field Geometry™ (SFG) magnet assemblies handle low frequencies.

• Dual 8" (200 mm) low-frequency transducers with Symmetrical Field Geometry (SFG) magnet assembly
• 1" (25 mm) high-frequency compression driver
• One-piece Teonex tweeter diaphragm/ surround with 1" voice coil and neodymium magnet
• Glass-filled ABS Bi-Radial high-frequency horn
• Ribbed PolyPlas woofer cones
• Rubber woofer surrounds
• 1-1/2"-diameter woofer voice coils
• Cast aluminum woofer frames
• 3/4" (19 mm) MDF enclosure
• Exclusive JBL design
• Low loss, 2-1/2-way crossover network
• Rear-mounted bass port
• Dual gold-plated binding posts
• Bi-wire-capable

Data Sheet

Manual

• (1) Studio 590 Floorstanding Loudspeaker
• (1) Horn Cover
• (2) Port Tube Inserts
• (4) Metal Spikes
• (1) Owner’s Manual
