JBL STX835 Dual 15 Inch 3 Way Speaker

Home /

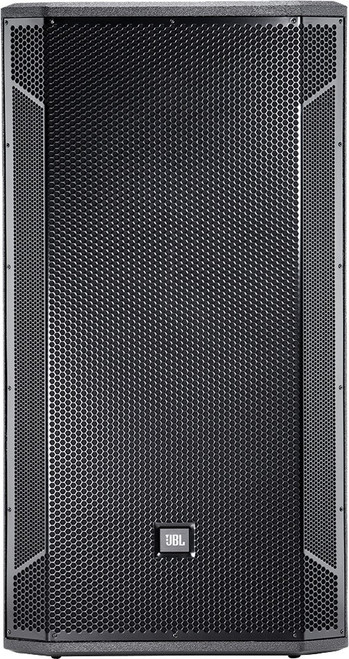

JBL STX835 Dual 15 Inch 3 Way Speaker (Discontinued)

Description

Details

A slot-loaded dual 15" three-way system with horn-loaded mid and high sections, designed for full-range use in stand-alone applications or for use in high performance environments as the premier ground stack passive top box. Designed to be placed over the STX828, this cabinet can be used in multiples in a high density situation; the STX835 can deliver amazing sound clarity at high SPL’s. The STX835’s 60 degree by 40 degree mid- and high-frequency waveguides allows two cabinets to be splayed for wide angle coverage.

Features

Features

18 in" Vented Gap Cooling™ low-frequency driver for extended low-frequency output
CMCD™ Cone Midrange Compression Driver™ provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence
60°x 40° coverage
Bi-amplified or full-range passive operation
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly
14-Gauge steel grille lined with acoustically transparent cloth

Specification

Frequency Range ( –10 dB)	32 Hz-20 kHz
Frequency Response (± 3 dB)	43 Hz-20 kHz
Coverage Pattern	60˚ × 40˚ nominal
Sensitivity (1W/1m)	96 dB
Power Rating	1200W / 2400W / 4800W (Continuous/Program/Peak)
Rated Maximum SPL	133 dB SPL Peak
Nominal Impedance	4Ω
Input Connectors	Two NL4
Operational Modes	Full Range/Bi-Amp with internal passive mid-high crossover network
Dimensions (H x W x D)	42.0" (1066 mm) x 22.4" (568 mm) x 22.6" (573 mm)
Net Weight	126 lbs (75 kg)
