- Description
Details

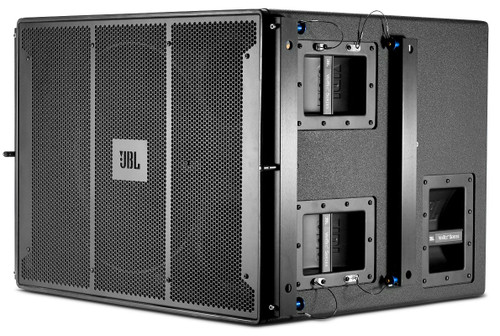

The VT4881A Compact Arrayable 1-18" Subwoofer designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio and theatrical presentations of all types.
The VT4881A is a compact, lightweight vented subwoofer enclosure housing JBL’s exclusive new 2269H Ultra Long Excursion 18" woofer. This woofer features neodymium magnet, dual voice coils, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5") while system weight is only 111 pounds.
Enclosure features: foam-back perforated steel grille; speaker cone treated with weather resistant compound; rigging tubes and hinge bars made from premium-grade alloy aluminum; plated hinge pins; stainless steel quick-release pin restraining lanyards; and inter-locking rubber feet which allow vertical stacking of multiple units, including reverse ground-stacking for cardioid subwoofer array applications if desired. VT4881A rigging hardware (same as in the companion VT4887A compact fullrange system) relies on quickrelease pins and end-mounted metal frames to couple adjacent units together in rigid but flexible arrays.- Features
Features
- Advanced technology component: Differential Drive®, dual voice coil, Direct Cooled™ cone transducer
- Independently accessible voice coils, enabling external parallel or series wiring
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure
- Rugged DuraFlex™ exterior finish; weatherized components Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other VERTEC® system products
- Specification
Frequency Range (-10 dB) 25 – 160 Hz Frequency Response (+/- 3 dB) 34 – 125 Hz Recommended Bandpass 25 – 80 Hz System Input Power Rating 2000W Continuous, 8000W Peak (AES / 2 hour) Maximum Peak Output 136 dB SPL, 1m Recommended Amplification 2000–4000 W into 8 ohms Recommended Signal Processing dbx® 4800, Crown® I-Tech, BSS FDS-366T Low Frequency One 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil, Neodymium Differential Drive, Direct Cooled Nominal Impedance 8 ohms System Sensitivity 91 dB, 1W / 1m (2.83 Vrms at 3.3 ft) Transducer Power Rating 2000W Continuous, 8000W Peak (AES / 2 hour) 1200W Continuous, 4800W Peak (100 hour) Box Construction Rectangular enclosure. PlyMax® engineered wood composite structure, DuraFlex™ finish, 6 handles Suspension System S.A.F.E. hardware, integral hinge bars nest in rigging tubes on box ends Grille Black perforated steel, foam backed Input Connectors Neutrik® Speakon® NL-8 and NL-4 (2x each) Pin 1+/- for VLF Dimensions (H x W x D) 22.4" (569 mm) x 31" (787 mm) x 25.8" (787 mm) Net Weight 111 lbs (50.4 kg) Shipping Weight 132 lbs (59.9 kg) - Reviews
