The LD Systems CURV 500 TS is fully scalable with up to four interlocking aluminum unibody line array elements operating on a SmartLink® plug and play adapter.

Description

LD Systems CURV 500 TS Compact Touring Array System

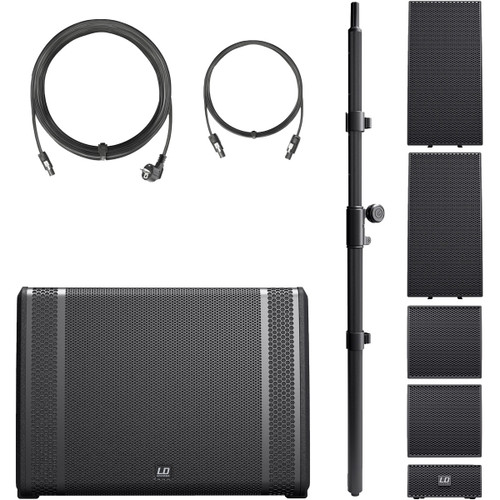

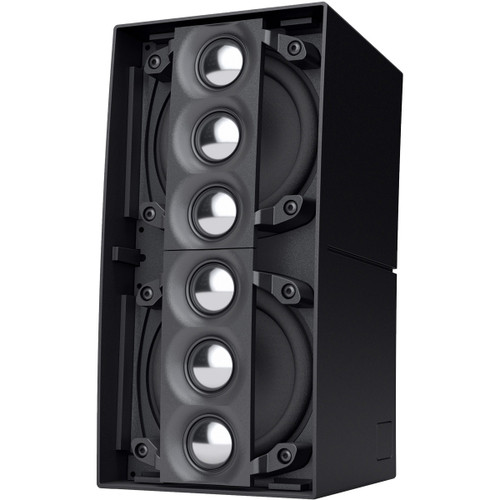

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminum unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high-frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

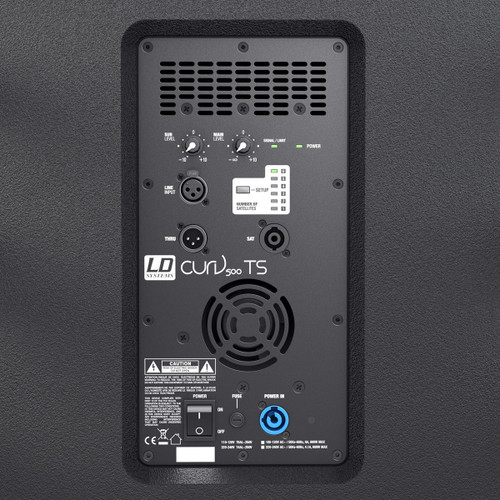

The ported 15" subwoofer base includes the CURV 500® Touring Array System's Class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and a dedicated speaker cable.

Features

  • Portable touring array system for live events, DJs and bands
  • 25 premium transducers and WaveAhead technology for breath-taking high-definition sound
  • 1000W RMS system power and 131 dB max. SPL
  • Fully scalable for far and near field applications
  • SmartLink® plug and play adapter for versatile application
  • Durable aluminum unibody satellite construction
  • 18 mm birch ply subwoofer cabinet with Polyurea finish
  • Ergonomic handles for convenient transport and setup

Specifications

System Output (RMS) 1000W
Color Black
Number of Array Satellites 4
Number of Smartlink Adapters 1
Number of Subwoofers 1
Max. SPL (Continuous) 125 dB
Max. SPL (Peak) 131 dB
Frequency Response 40 - 20000 Hz
Dispersion (H x V) 110° x 34°
RMS Subwoofer: 700W
Array Satellites: 300W
Peak Power Subwoofer: 1400W
Array Satellites: 600W
Amplifier Class D
Protection Circuits DSP-based multiband limiter , overload , short circuit , thermal overload
Weight 106.26 lbs (48.2 kg)
