LD Systems MAUI 5 GO Battery Column Charging Dock (Discontinued)

By LD Systems

LD Systems MAUI 5 GO Battery Column Charging Dock (Discontinued)

Name: LD Systems MAUI 5 GO Battery Column Charging Dock (Discontinued)
Brand: LD Systems
SKU: LDS-MAUI5GOCD
Price: 279.99 USD
Availability: OutOfStock

Write a Review

Part #:

LDS-MAUI5GOCD(US)

Model #:

MAUI 5 GO CHARGING DOCK

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

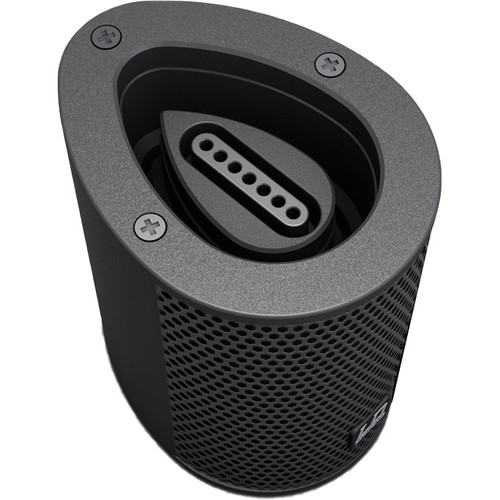

The LD Systems MAUI5GOCD is a charging dock for the MAUI 5 GO battery columns. Featuring LD Systems' Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power.

Description

LD Systems MAUI 5 GO Battery Column Charging Dock

This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage, and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.

Features

Design matches that of the battery column
Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
Multi-voltage power supply included

Specifications

Type	Loading Dock with Power Cable
Connections Loading Dock	Low-voltage socket , multipin
Operating Voltage Loading Dock	20 - 40V DC
Protection Features Loading Dock	Current limiter
Input Connector Power Cable	ICE Connector male
Input Voltage Power Cable	100V AC - 240V AC, 50 - 60 Hz
Rated Output Voltage Power Cable	24V
Output Current Power Cable	Output Current Power Cable
Dock Dimensions (H x W x D)	5" (125 mm) x 3" (81 mm) x 4" (106 mm)
Weight	2 lbs (0.93 kg)
