Yamaha Lecture Hall Sound System
This high-performance Lecture Hall Sound System supplies powerful intelligible audio with simplistic operation and long-term reliability. Ideal for medium to large lecture halls, conference rooms and educational spaces, this system includes two 12-inch IF2112/AS and eight VXS8 8-inch enhanced sound-quality surface mount speakers positioned around the room for uniform sound, a XMV4280 power amplifier with YDIF digital audio format, a XP7000 2-channel power amplifier, a MTX3 multi-zone matrix mixer with a signal processor for versatile processing functions, a CD-C600 RK 5-disc rackmount CD player, and a DCP4V4S wall mount digital volume control panel for streamline day-to-day operation, as well as 400 feet of West Penn 224 speaker wire for installation. With exceptional sound-quality, a straight-forward installation process, and effortless operation, this system is ideal for teachers, professors and instructors.

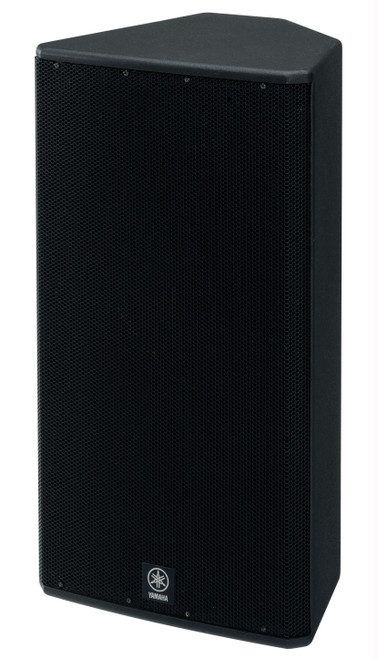

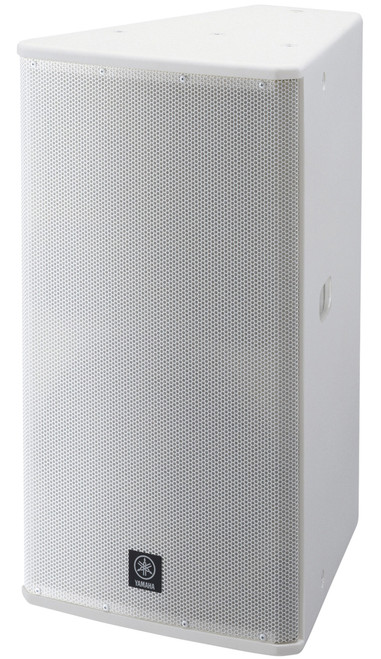

Yamaha IF2112/AS 12" Loudspeakers
The IF2112/AS Speaker features a Uni-Phase design complete with a 12” woofer and 3” high-frequency compression driver to deliver optimum audio performance. It is switchable between single-amp and bi-amp operations and the woof cones are specially treated for water resistance, ensuring durability in a variety of operating environments. The driver features a one-piece titanium dome for superior sound and long term reliability. The speaker includes 2 parallel-wired Neutrik NL4s and 1 barrier strip connector to facilitate wiring in monitor applications. The IF2112/AS also includes a rotatable horn for maximum freedom and flexibility, handles for comfortable moving and pole-mount sockets for flexible rigging.

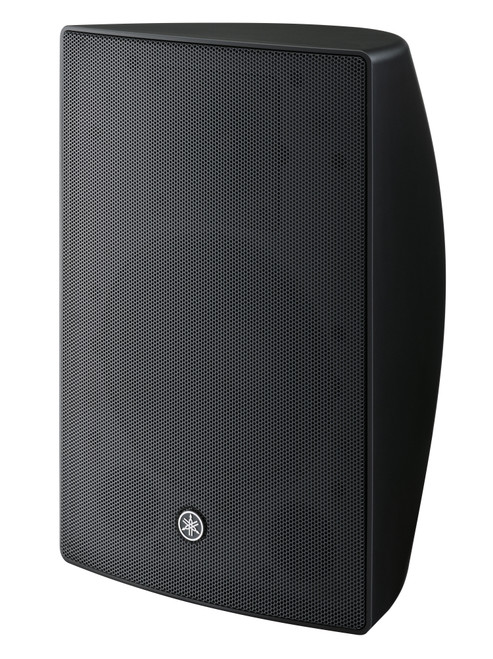

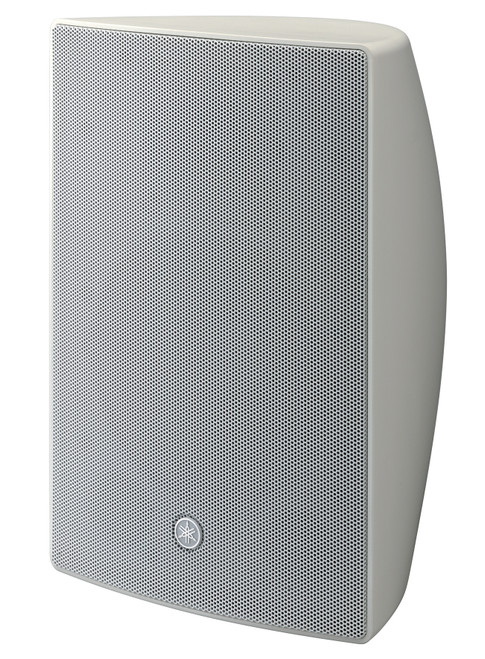

Yamaha VXS8 8" Wall Mount Speakers
VXS8 Speakers feature customized transducers with large, powerful magnetic circuits to increase driving and braking force substantially. It sports an 8” cone woofer and a 1” soft dome tweeter. Both models come with a versatile bracket for trouble-free mounting on both walls and ceilings. An external hexagonal grille design improves sound clarity by raising the aperture ratio, and a smooth curved cabinet enables the speakers to pan and tilt to target service areas. The VXS speakers also comes with paintable bodies, grilles and brackets, not only filling your room with premium sound, but enhancing the interior design.

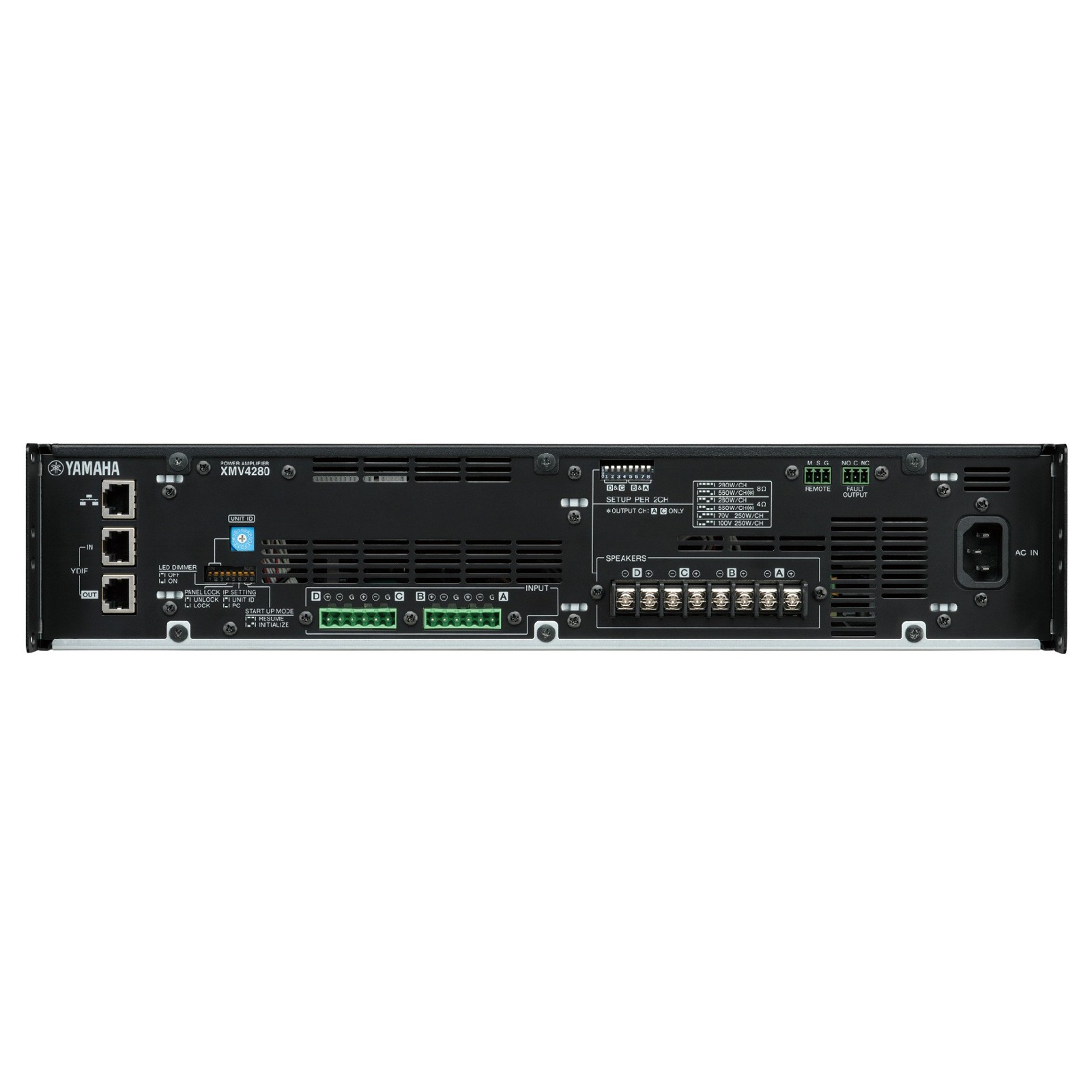

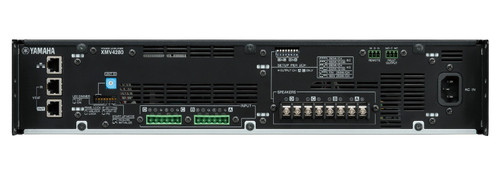

Yamaha XMV4280 Power Amplifier
The XMV4280 Amplifier is equipped with YDIF digital audio format for easy setup, operating in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously, eliminating the need for separate amplifiers. Additionally, the 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels. It features an innovative circuit that increases the output-stage efficiency level to over 90%, and Power Factor Correction, which ensures harmonic control and dramatically decreases current draw while maintaining output power – making circuit breakers less prone to shutting down. Automatic protection functions ensure peak performance and reliable operation.
Yamaha XP7000 2-Channel Power Amplifier
The XP7000 Amplifier delivers top-class sound quality and unmatched clarity at 700 Watts per Channel @ 8 Ohms, 20Hz-20kHz. It features anti-vibration measures to deliver tight and solid lows, extraordinary mid-range, and precisely defined highs, as well as a XLR and Euroblock input terminal with Speakon, and a 5-way binding post output terminal, suitable for any professional sound application. The XP7000 can be used to drive 70V lines for high-impedance multi-speaker systems, and can operate in 3 modes: stereo, parallel (dual mono), and bridge mode. Made with lead-free parts, this high-performance amplifier has unrivaled value.

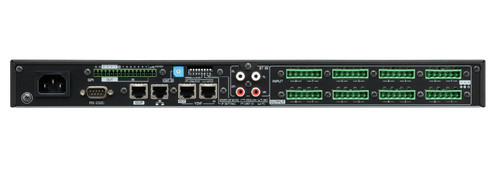

Yamaha MTX3 Multi-Zone Matrix Processor
The MTX3 Matrix Processor is equipped with flexible processing functions that are essential to a wide variety of applications such as classrooms, lecture halls or auditoriums. Responsible for the primary processing functions at the heart of your lecture room system's design, the MTX3 allows you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The MTX3 features an SD card slot for playback, a 16 channel YDIF digital I/O with an 8-channel mic/line input and an 8-channel analog output, and can also be controlled on Wi-Fi by smartphone app, making it a truly hassle-free device.
Yamaha CD-C600 RK 5-Disc CD Player
The CD-C600RK CD Player offers the Pure Direct feature, ensuring the highest quality analog audio output and the lowest possible noise interference. The USB port facilitates high quality sound playback from MP3 or WMA digital music and an iPod can also connect to the USB port via USB cable for instant playback. With PlayXchange, more than one CD can be changed at a time while the current one is playing without interrupting the music. The CD-C600RK is compatible with: CD, CD-R/RW (MP3, WMA), USB, and iPod devices.

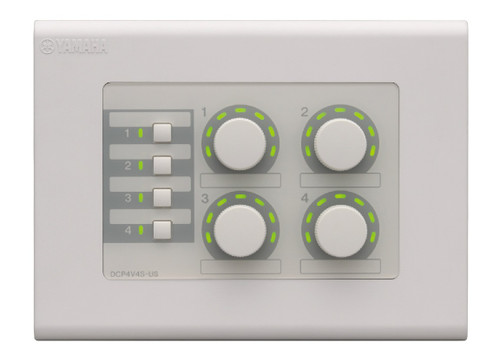

Yamaha DCP4V4S Wall Mount Volume Control
The DCP4V4S Wall Mount Volume Control for MTX Series is a 4 volume 4 switch equipped wall mount, supplying flexible external control of several system functions including easy volume adjustment and preset selection. The four buttons and rotary controls of the DCP4V4S give teaching staff headache-free, comprehensive control over the system for centralized day-to-day function that won’t disrupt the flow of class. By touching a single control, the system can be instantly reconfigured for a range of uses, and utilizes a simple connection by CAT5 carrying RS485 and power. A maximum of 8 DCPs can be connected to 1 MTX Matrix Mixer.
Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
