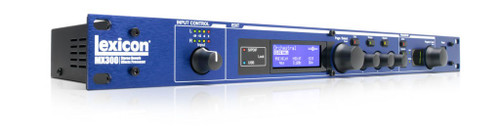

The MX300 lets you switch effect routings easily via front panel controls, so you don’t have to spend time behind your rack changing cables. Dual Mono sends the Left and Right input signals through Effect 1 and Effect 2 respectively. Each signal is then routed to its respective output, completely independent from the other. Cascade (Series) sends Left and Right input signals first through Effect 1, then through Effect 2, and then routed as a stereo signal to their respective outputs. Dual Stereo (Parallel) routes Left and Right input signals through both effects independently. Both Effects’ output signals are then mixed together, and routed to both the outputs as a single stereo signal.
Mono Split sends Left input signal through Effect 1, while the Right input signal is sent through Effect 2. The output signals of both Effects are then mixed together, and routed to both the outputs as a single stereo signal.
Stereo routing provides a single stereo effect path for Left and Right signals. This routing removes one of the effect modules for users requiring a streamlined signal path with only a single effect for their needs — but taking advantage of all of the MX300’s processing horsepower.
