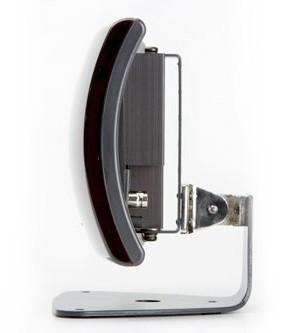

The Listen Tech LA-140 ListenIR Radiator for LT-82 packs high infrared power in a small and attractive design, with your choice of grey or white packaging. Designed for easy installation using standard components, the LA-140 is powered via CAT-5 cabling while the RF modulated carriers are delivered via standard RG-58 coaxial cable. Mounting brackets are included for wall, ceiling, desk, mic stand and tripod mounting. Power can be supplied by the LT-82 transmitter or from a separate power supply (LA-205). Built-in delay compensation prevents signal cancellation (multi-path) problems and eliminates the piled-up cabling that is required with other systems. The LA-140 is used for government compliance (such as ADA), assistive listening, language interpretation, live theatre, houses of worship, courtrooms, secure rooms and for auditory description.
| Frequency Range | 1 MHz - 5 Mhz |
|---|---|
| Input | BNC Connection. -25dbm to -5dbm input nominal |
| Output | BNC Connection. -15 dbm nominal |
| Coverage Area | 10,000 sf (929 sm) when used with Listen Receivers |
| User Controls | Termination Switch, Delay Compensation Switch,Indicator LEDs on/off |
| Indicators | Specifications |
| Red LED | Indicates power is present |
| Yellow LED | Indicates no carrier is present. |
| Green LED | Indicates carrier and power are present and radiator isemitting IR signal |
| Input | RJ-45 connector. 30VDC, powered from transmittervia CAT-5 cable or optional LA-205 power supply |
| Output | RJ-45 connector. 30 VDC, powers up to one additionalradiator |
| Emitter Power | 3 Watts |
| Temperature - Operation | -10 C (14 F) to +40 (104 F) |
| Temperature - Storage | -20 C (-4 F) to +50 (122 F) |
| Humidity | 0 to 95% relative humidity, non-condensing |
| Dimensions (H x W x D) | 5.5" x 8" x 2.6" (140 x 203 x 66 mm) |
| Unit Weight | 2.1 lbs (.95 kg) |
| Unit Weight with Wall/Ceiling MountingHardware | 2.35 lbs (1.05 kg) |
| Shipping Weight | 4 lbs (1.8 kg) |
