Listen Tech LCS-121-01-D Wi-Fi/RF Advanced System (Dante)
The LCS-121-01-D assistive listening system is capable of broadcasting audio over both the 72 MHz frequency and 2.4/5.0 GHz Wi-Fi frequencies, allowing users to receive the audio through a receiving device with ear speaker/headphones or directly to Bluetooth enabled hearing aids. The 72 MHz frequency shall be transmitted to a receiving device as defined below. The 2.4/5.0 GHz frequency shall be transmitted to personal smart devices such as cellular phones and tablets through a free application as defined below. The system shall be capable of connecting to a Dante™ network via an external audio interface adapter.
The stationary RF transmitter shall be capable of broadcasting on 57 channels. The transmitter shall have an SNR of 80 dB or greater. The output power shall be adjustable to quarter, half or full. Channel tuning shall be capable of being locked. The device shall have an audio frequency response of 50 Hz to 15k Hz, ±3 dB at 72 MHz. It shall have two (2) mixing audio inputs and a mixed-signal output. The device shall have the following audio controls: input level, mix level and an adjustable low pass filter (contour). The device shall have an audio processor that is capable of automatic gain control and limiting. The Listen Technologies LT-800-072 is specified.
The stationary audio over Wi-Fi server shall be capable of delivering 1 mono / 2 stereo audio channels in 1 RU space and shall be capable of connecting to and residing on the venues existing local area network (LAN) via a single RJ45 Ethernet connection. Venue content and channel listings shall be administered through a cloud-managed service. The audio over Wi-Fi server shall be compatible with the latest Wi-Fi IEEE 802.11 standards and capable of handling up to 1,000 simultaneous users. The Listen Technologies Audio Everywhere MX5-1 is specified.
The RF receiver shall be capable of receiving on 57 wide and narrowband channels. The receiver shall have a signal-to-noise ratio of 80 dB or greater and shall have an audio frequency response of 50 Hz – 15 kHz (±3 dB). The device shall employ a unique DSP SQTM noise reduction technology. The unit shall have a programmable squelch circuit. The unit shall incorporate a multi-functional display that indicates battery status, inventory number, and channel. The device shall have the option of being lanyard or belt clip worn and the lanyard shall have the option of an integrated neck loop. The device shall have a USB connector used for inventory control, set up, charging and firmware upgrades. The device shall incorporate automatic battery charging circuitry and use a non-proprietary lithium-ion battery. The device shall have additional charging contacts to allow multiple charging options. The Listen LR-4200-072 is specified.
The Wi-Fi receiver shall be personal smart devices such as cellular phones and tablets as provided by the users. The audio over Wi-Fi shall be delivered to the personal smart device via a free application downloaded onto the personal device. When the free application is launched, the personal smart device will automatically connect to the audio over Wi-Fi server. The application will list the available channels and play the audio when selected by the user. The free application shall also be capable of containing user documentation and instructions in addition to ads, promotional banners, and videos. The app shall be customizable, allowing the venue to load in its color pallet and logos. The Listen Technologies Audio Everywhere App is specified.
The Americans with Disabilities Act (ADA) 2010 ADA Standards requires public facilities to provide auditory assistance devices.
- Features
Features
- Extended audio reach
- Dante capabilities
- Free Smartphone app
- Specification
LW-100P-02 Audio Inputs Terminal Block, RCA (Stereo operation requires the use of both inputs)EthernetUSB Power 30W Users 1000 (per server) Max Channels 2 mono (1 stereo) Supported WAP Frequencies 2.4 GHz & 5 GHz Dimensions (H x W x D) 1.77" (45 mm) x 6.69" (170 mm) x 3.94" (100 mm) Weight 1.3 lbs (0.59 kg) LT-800-072-01 Frequency Response 50Hz - 15kHz (±3dB) Signal-to-Noise Ratio SQ enabled 80dB, SQ disabled 60dB Audio Inputs (1) Female XLR or 1/4 combo connector(2) phono connectors Audio Outputs Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohmHeadphone Output: Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm Frequency Range 72.025 - 75.950MHz Number of Channels 17 wide band, 40 narrow band Frequency Accuracy ± .005% stability +32º to +122 ºF (0º to +50 ºC) Transmitter Stability 50 PPM Transmission Range Up to 305 m (1,000 ft.) Output Power 80,000 uV at 3 m Number of Simultaneous Transmitters 6 Power Supply In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)Input: 100 - 240 VAC, 50 - 60Hz, 0.4 A
Output: 12 VDC, 1.3 A, 15.6WConnector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel typeDimensions (H x W x D) 1.75" (44.45 mm) x 8.5" (215.9 mm) x 9.13" (231.9 mm) Weight 2.6 lbs (1.2 kg) LPT-A107-B Connectors Dual RCA (male) to Dual RCA (male) Cable Length 6.6 ft (2 m) Weight 0.11 lbs (0.05 kg) LR-4200-072 System Distortion < 2% total harmonic distortion (THD) at 80% deviation Outputs (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm System Frequency Response 50Hz - 15kHz (±3dB) System Signal to Noise Ratio SQ enabled 80dB, SQ disabled 60dB Frequency Range 72.0250 - 75.9500MHz Number of Channels 17 wide band, 40 narrow band Sensitivity .6uV typical, 1 uV maximum for 12 dB sinad Frequency Accuracy ± .005% stability 32 to 122 ºF (0 to 50 ºC) Power Supply Micro USB connector, 5 V, 500 mA Battery Type Lithium Ion 3.7 Vdc, 1200 mAhLife: 8 Hours of continuous useCharging Time: Fully charged in 2.5 Hours Dimensions (H x W x D) 3.75" (95.25 mm) x 2" (50.8 mm) x 0.64" (16.26 mm) without belt clip3.75" (95.25 mm) x 2" (50.8 mm) x 0.8" (20.32 mm) with belt clip Weight 0.1 lbs (0.045 kg) without batteries0.15 lbs (0.068 kg) 40 LA-401 Frequency Response 20Hz - 20kHz Impedance 32 ohm +/- 15% @ 1kHz Input Sensitivity 115dB +/- 4dB @ 1kHz, 1 mW Rated Power Input 50 mW Max Power Input 100 mW Connector Male 3.5 mm (TRS) Cable Length 13" (330.2 mm)Extension cable: 28" (711.2 mm) Weight 0.02 lbs (0.011 kg) LA-430 Connectors Receiver: Male 3.5 mm (TRRS) to Male 3.5 mm (TRRS)Short Ear Phone: Female 3.5 mm (TRS) Neck Loop Field Strength: 400 mA/m (+/- 3dB)Frequency Response: 100Hz to 5kHz (+/- 3dB ref 1kHz) Cord Length 29" (736.6 mm) Weight 0.09 lbs (0.043 kg) LA-423 Power Supply Input: 100 - 240 V, 50 - 60Hz, 0.5 AOutput: 5.0 VDC, 4.2 A Dimensions (H x W x D) 2.44" (62 mm) x 2.9" (74 mm) x 1.13" (29 mm) Weight 0.49 lbs (0.221 kg) LA-466 Power Type Required Power Over Ethernet Switch or 802.3af Compliant POE Injector Cable Length 11" (0.43 mm) Weight 0.35 lbs (0.16 kg) - Documents
- System Includes
System Includes
- (1) LT-800-072-01 Stationary RF Transmitter (72 MHz)
- (1) LW-100P-02 LE 2 Channel (mono) Wi-Fi Server
- (2) LR-4200-072 Intelligent DSP RF Receiver (72 MHz)
- (2) LA-401 Universal Ear Speaker

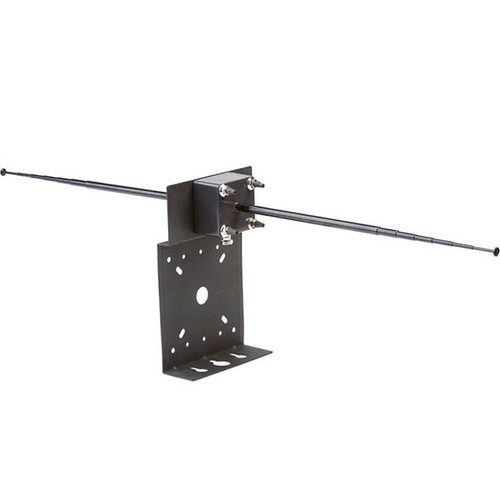

- (1) LA-122 Universal Antenna Kit (72 MHz)

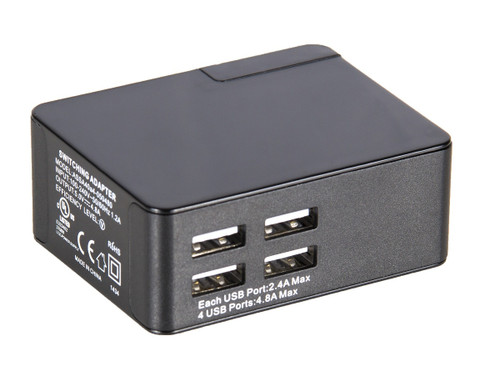

- (1) LA-423 4-Port USB Charger
- (2) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
- (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 FT. (2 M)
- (1) LA-466 Dante 2 Channel Output XLR Adapter
- (1) LA-326 Universal Rack Mount Kit
- (1) LA-304 Assistive Listening Notification Signage Kit
- (1) LW-202 LE Venue Awareness Kit
