Listen Tech LCS-122-01-D Wi-Fi/RF Advanced System (Dante)
The LCS-122-01-D assistive listening system is capable of broadcasting audio over both Infrared (IR) and 2.4/5.0 GHz Wi-Fi frequencies, allowing users to receive the audio through a receiving device with ear speaker/headphones or directly to Bluetooth enabled hearing aids. The (IR) system shall be transmitted to a receiving device as defined in 2.01 B&D. The 2.4/5.0 GHz frequency shall be transmitted to personal smart devices such as cellular phones and tablets through a free application as defined in 2.01C&E. The system shall be capable of connecting to a Dante™ network via an external audio interface adapter (POE required).
The Infrared Transmitter/Radiator Combo shall be capable of broadcasting up to two (2) audio channels with the choice of four (4) mono carrier frequencies; 2.3, 2.8, 3.3, and 3.8 MHz. Channel carrier selections shall be set via a back panel rotary switches. The Transmitter/Radiator coverage area shall be up to 30,000 ft² (2787 m²) with single-channel transmission when using the LR-4200-IR. The device shall have a timer that shuts off the carriers after 15 minutes when no audio is present at the inputs. The device shall have two (2) independent mixing audio inputs, one for each transmission channel. The Transmitter/Radiator shall provide both power and audio signal for up to Four (4) Expansion Radiators over CAT-5e cable. The Listen Technologies LT-84 is specified.
The stationary audio over Wi-Fi server shall be capable of delivering 1 mono / 2 stereo audio channels in 1 RU space and shall be capable of connecting to and residing on the venues existing local area network (LAN) via a single RJ45 Ethernet connection. Venue content and channel listings shall be administered through a cloud-managed service. The audio over Wi-Fi server shall be compatible with the latest Wi-Fi IEEE 802.11 standards and capable of handling up to 1,000 simultaneous users. The Listen Technologies Audio Everywhere MX5-1 is specified.
The IR receiver shall be capable of receiving on one of four (4) wideband channels (carriers), Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz) and Channel 4 (3.8 MHz). The receiver shall have the option of being lanyard or belt clip worn and the lanyard shall incorporate an integrated neck loop for compatibility with T-coil hearing aids. The receiver shall be intelligent and provide customized audio to either earphones or the integrated neck loop based upon which is connected. The receiver shall have two (2) 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two (2) mono or stereo earphones. The receiver shall incorporate a multi-functional display (OLED) that indicates battery status, inventory number, volume level, and a customizable channel name. The receiver shall employ a unique iDSPTM noise reduction technology. The receiver shall be fully programmable via PC software. The receiver shall have a micro USB connector used for programming/setup, inventory control, charging and firmware upgrades. The receiver shall incorporate automatic battery charging circuitry and use a non-proprietary lithium-ion battery. The receiver shall automatically turn on when removed from the charging device and automatically turn off when returned to the charging device. The receiver shall have additional charging contacts to allow for multiple charging options. The receiver shall have a signal-to-noise ratio of 60 dB or greater, THD less than 2% and shall have an audio frequency response of 63 Hz – 15 kHz (±3 dB). The Listen LR-4200-IR is specified.
The Wi-Fi receiver shall be personal smart devices such as cellular phones and tablets as provided by the users. The audio over Wi-Fi shall be delivered to the personal smart device via a free application downloaded onto the personal device. When the free application is launched, the personal smart device will automatically connect to the audio over Wi-Fi server. The application will list the available channels and play the audio when selected by the user. The free application shall also be capable of containing user documentation and instructions in addition to ads, promotional banners, and videos. The app shall be customizable, allowing the venue to load in its color pallet and logos. The Listen Technologies Audio Everywhere App is specified.
The Americans with Disabilities Act (ADA) 2010 ADA Standards requires public facilities to provide auditory assistance devices.
- Features
Features
- Extended audio reach
- Dante capabilities
- Free Smartphone app
- Specification
LW-100P-02 Audio Inputs Terminal Block, RCA (Stereo operation requires the use of both inputs)EthernetUSB Power 30W Users 1000 (per server) Max Channels 2 mono (1 stereo) Supported WAP Frequencies 2.4 GHz & 5 GHz Dimensions (H x W x D) 1.77" (45 mm) x 6.69" (170 mm) x 3.94" (100 mm) Weight 1.3 lbs (0.59 kg) LT-84 Frequency Response 20Hz - 20kHz (+/- 1dB) Line Input 63Hz - 15kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44) Signal-to-Noise Ratio > 70dB (SNR) Line Input> 60 dB (SNR) System Specification (wireless end-to-end with LR-44) Microphone Input (2) 3.5 mm (0.14 in.) Tip/Sleeve connector, -30dBu nominal input, +14dB headroom, impedance 4.4k Ohms, 5 VDC bias supply Total Harmonic Distortion < 0.1% (THD) Line Input< 2% (THD) System Specification (wireless end-to-end with LR-44) Line Input Unbalanced: Stereo/Mono Input. (2) Dual (RCA) Phono connectors, unbalanced, -10dBu nominal input, +14dB headroom, impedance 10k OhmsBalanced: Mono Input. Two (2) Phoenix Type connector, balanced, + 4 dBunominal input, +14dB headroom, impedance 100k Ohms Carrier Frequencies 2.3MHz, 2.8MHz, 3.3MHz, 3.8MHz, selectable Number of Channels 2 channels, selectable carrier frequency Frequency Accuracy +/- .005% stability 0 to 50 °C Transmitter Stability 50 PPM Modulation FM Wideband, ±50kHz deviation max, 50 ?S pre-emphasis Power Save Mode Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life Expansion Link Output (2) RJ-45 connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft. maximum cable length, (2) LA-141s per output connector Coverage Area 2,787 m² (30,000 ft²) single channel with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) single channel with LR-42/LR-44 receivers IR Emitter Power 1.49W Power Supply Input: 100 - 240 VAC, 50 - 60HzOutput: 12 VDC, 4 A, 48W Power Output (2) RJ-45 connectors. providing Power and RF signal for up to (2) LA-141 expansion radiators on each output Mounting Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box. Dimensions (H x W x D) 1.5" (38.1 mm) x 10.7" (271.78 mm) x 4.1" (104.14 mm) Weight 0.8 lbs (0.4 kg) LPT-A117 Adapter Connections DC plug type, .2 in (5.5 mm) OD, center positive and RJ45 Weight 1 lb (0.46 kg) LPT-A107-B Connectors Dual RCA (male) to Dual RCA (male) Cable Length 6.6 ft (2 m) Weight 0.11 lbs (0.05 kg) LR-4200-IR System Distortion < 2% total harmonic distortion (THD) at 80% deviation Audio Output Jacks (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard System Frequency Response 63Hz - 15kHz (±3dB) System Signal to Noise Ratio > 60dB Carrier Frequencies 2.3MHz, 2.8MHz, 3.3MHz, 3.8MHz Number of Channels 4 Frequency Accuracy ± .005% stability 32 to 122 ºF (0 to 50 ºC) Modulation FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis Coverage Area 30,000 ft² (2787 m²) single channel with LT-84/LA-141 or 40,000 ft² (3716 m²) single channel with LT-82/LA-140 Sensitivity Better than (1) nW/cm2 @40dB SNR Power Supply Micro USB connector, 5 V, 500 mA Battery Type Lithium IonLife: 8 hours of typical useCharging Time: Fully charged in 2.5 hours Dimensions (H x W x D) 3.75" (95.25 mm ) x 2" (50.8 mm) x 0.64" (16.26 mm) without belt clip3.75" (95.25 mm) x 2" (50.8 mm) x 0.80" (20.32 mm) with belt clip Weight 0.12 lbs (0.05 kg) without batteries0.18 lbs (0.08 kg) with batteries LA-401 Frequency Response 20Hz - 20kHz Impedance 32 ohm +/- 15% @ 1kHz Input Sensitivity 115dB +/- 4dB @ 1kHz, 1 mW Rated Power Input 50 mW Max Power Input 100 mW Connector Male 3.5 mm (TRS) Cable Length 13" (330.2 mm)Extension cable: 28" (711.2 mm) Weight 0.02 lbs (0.011 kg) LA-430 Connectors Receiver: Male 3.5 mm (TRRS) to Male 3.5 mm (TRRS)Short Ear Phone: Female 3.5 mm (TRS) Neck Loop Field Strength: 400 mA/m (+/- 3dB)Frequency Response: 100Hz to 5kHz (+/- 3dB ref 1kHz) Cord Length 29" (736.6 mm) Weight 0.09 lbs (0.043 kg) LA-423 Power Supply Input: 100 - 240 V, 50 - 60Hz, 0.5 AOutput: 5.0 VDC, 4.2 A Dimensions (H x W x D) 2.44" (62 mm) x 2.9" (74 mm) x 1.13" (29 mm) Weight 0.49 lbs (0.221 kg) LA-466 Power Type Required Power Over Ethernet Switch or 802.3af Compliant POE Injector Cable Length 11" (0.43 mm) Weight 0.35 lbs (0.16 kg) - Documents
- System Includes
System Includes

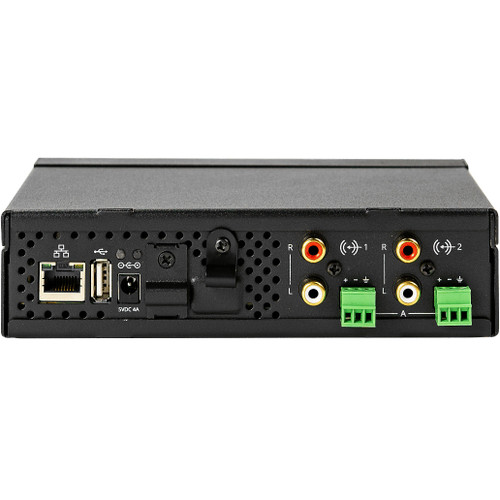

- (1) LW-100P-02 LE 2 Channel (mono) Wi-Fi Server
- (1) LT-84-01 ListenIR 2-Channel Transmitter/Radiator Combo
- (2) LR-4200-IR Intelligent DSP IR Receiver
- (2) LA-401 Universal Ear Speaker
- (2) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
- (1) LA-466 Dante 2 Channel Output XLR Adapter

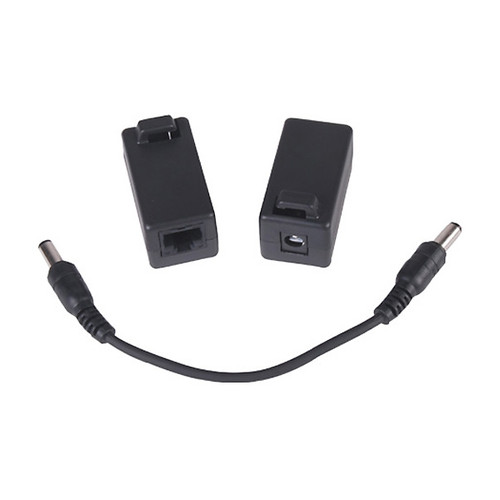

- (1) LPT-A117 Remote Power Supply Kit (For LT-84)
- (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 FT. (2 M)
- (1) LA-423 4-Port USB Charger
- (1) LW-202 LE Venue Awareness Kit
