- Description
Details
The Listen Tech LPT-C6 ListenPoint Advanced Control Unit is the heart of a ListenPoint system offering six audio inputs. The C6 has input/output connections to a computer which enables teachers to conduct Virtual Field Trips via Skype. It's simple and easy for teachers with one, intuitive control for adjusting volume. Active audio sources are automatically selected so teachers can either use the single control on the control unit or on the M1 microphone to change volume - SIMPLE! The Control Unit connects to the Room Module using a single Cat-5e cable. Extensive customization of system through password protected front panel or via USB port. The backlit, tilting LCD is easy to read and displays the status of all microphones on the system including battery level. Designed to blend into any room, the control unit can be wall, desk or rack mounted.
- Features
Features
- Six audio inputs including 4 unbalanced inputs, 2 balanced inputs, 1 balanced output and 1 unbalanced output
- Computer input/output connections allows teachers to conduct Virtual Field Trips via Skype
- One intuitive control for adjusting volume
- Automatic audio selection allows teacher to change volume via the single control on the control unit or on the M1 microphone
- Single point of connection via Cat-5e cabling to the room module makes installation and maintenance simple
- Backlit, tilting LCD Screen shows audio selection, volume, microphone status and battery level
- LCD can be inverted 180° for optimum viewing angle

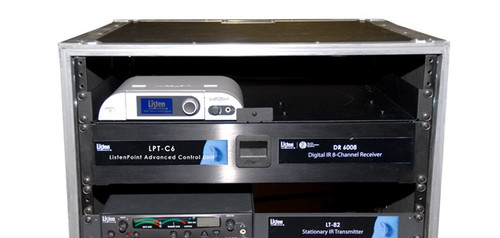

- Designed to blend into any room, can be wall, desk or rack mounted with supplied mounting platform and hardware
- Extensive customization of system through password protected front panel or via USB port
- Specification
Unbalanced Input Four (4) Stereo inputs via phono connectors, unbalanced, -10dBu nominal input level. Unbalanced Output One (1) Dual Unbalanced Output, Phono Connector, -10dBu nominal, +20dBu maximum Balanced Input One (1) Balanced Input, Euro Connectors, 0dBu nominal, adjustable -18/+18 db, +20dBu maximum Balanced Output One (1) Balanced Input, Euro Connectors, 0dBu nominal, +24dBu maximun Teleconferencing Balanced Input One (1) Balanced Input, Euro Connectors, 0dBu nominal, adjustable -18/+18 db, +20dBu maximun Teleconferencing Balanced Output One (1) Balanced Input, Euro Connectors, 0dBu nominal, +24dBu maximun, impedance 600 Ohms Headphone Output One (1) 3.5 mm stereo connector, unbalanced, adjustable output level, +10dBu maximum Control Unit Inputs to Output Frequency Response 20 Hz to 20 kHz, +/- 3 dB, < 0.1% THD, >80 dB SNR Microphones to Output Frequency Response 100 Hz to 10 kHz, +/- 3 dB, < 2.0% THD, >60 dB SNR Front Panel Power Button, LCD, Control Dial, Headphone Level Back Panel RS-232 , CAT-5e Output w/ LED indicator, Power Input, System Reset Power Supply Input 100-240 VAC, 50-60 Hz Power Supply Output 19 VDC, 3.2 A, 60.8 w Power Supply Connector DC Plug type Connector, .2 in (5.5 mm) OD, center positive Power Cord Line cord is determined by each country's AC power standards. Power Cord Length 6.0 ft. (1.8 m) Dimensions (H x W x D) 1.5 (38 mm) x 8.5 (204 mm) x 6.9 (175 mm) Control Unit Weight 1.5 lbs (.68 kg) Shipping Weight 3.0 lbs (1.36 kg) - In The Box
In The Box
- (1) LPT-C6 ListenPoint Advanced Control Unit
- (1) LPT-A102 Mounting Platform
- (4) #6 Long Screws
- (4) #6 Short Screws
- (4) #8 Long Screws
- (4) #8 Wall Anchors
- (2) LPT-A108 5-pin Euro Connectors
- (1) LPT-A112 19 VDC Universal Power Supply
- (1) Line Cord
- (1) Quick Reference Card
- (1) Installation Guide
