The Standard Soundfield System is ideal for classrooms with existing Cat-5e cable and speakers. This system offers two (2) direct inputs and one (1) output on the CU, the RM that delivers 60 W of power and the Microphone/Media Interface Kit (M1). The ListenPoint Standard Soundfield System offers both performance and value.

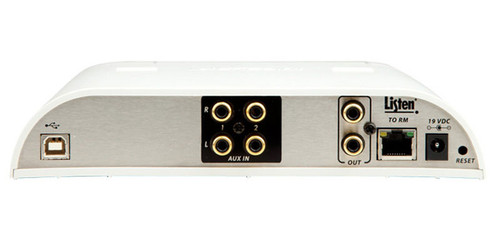

| LPT-C2-01 Standard Control Unit | |
|---|---|
| Power Supply Input | 100-240 VAC, 50-60 Hz |
| Power Supply Output | 19 VDC, 3.2 A, 60.8 w |
| Power Supply Connector | DC Plug type Connector, 0.2" (5.5 mm) OD, center positive |
| Cord | Line cord is determined by each country's AC power standards |
| Power Cord Length | 6.0 ft (1.8 m) |
| Unbalanced Input | (2) Stereo inputs via phono connectors, unbalanced, -10dBu nominal input level |
| Unbalanced Output | (1) Dual Mono Output, Phono Connector, -10dBu, 10 Ohm |
| Headphone Output Power | (1) 3.5 mm stereo connector, unbalanced, adjustable output level, +10 dBu maximum, impedance 10 Ohm. |
| Input to Output Frequency Response | 20 Hz to 20 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Microphone to Output Frequency Response | 200 Hz to 15 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Dimensions (H x W x D) | 1.5" (38.1 mm) x 8.5" (215.9 mm) x 6.9" (175.26 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Shipping Weight | 3.0 lbs (1.36 kg) |
| LPT-R12 Powered Room Module | |
| 6 - 12 VDC Input | One (1) 2-pin Euro Connector, 600 Ohms |
| Speaker Output | Four (4) amplifier channels w/ 2-pin euro connectors, each 4 Ohms @ 15 watts (60 watts total) |
| Relay Output | One (1) 3-pin Euro Connector, Latching or Pulse Relay - Programmed via software |
| Microphone to Output Frequency Response | 200 Hz to 15 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Input to Output Frequency Response | 20 Hz to 20 kHz, +/- 2 dB, < 0.1% THD, >75 dB SNR |
| Speaker EQ | Quickfilter®, 512 points of equalization by speaker model |
| Infrared Emitter | 38 kHz subcarrier |
| Infrared Sensor | 2.3 MHz, 2.8 MHz |
| External Infrared Sensor | Two (2) phono connectors provided |
| Cable Cover Mounting | Mounts to mounting platform |
| Room EQ | Seven (7) band parametric, Two (2) tone controls |
| Dimensions (H x W x D) | 2.5" (64 mm) x 8.5" (216 mm) x 9.8" (249 mm) |
| Weight | 1.75 lbs (0.8 kg) |
| Shipping Weight | 3.0 lbs (1.4 kg) |
| LPT-M1 Microphone/Media Interface Kit | |
| Battery Capacity | 1180 mAh |
| Battery Type | Lithium Ion |
| Power Supply Plugs | Removable plugs (types B, G, I and C included) |
| Power Supply Input | 100-240 VAC, 50-60 Hz, 0.4 A |
| Power Supply Connector | DC Plug |
| Operating Time | 7 hours typically |
| Battery Charging Time | Two (2) hour charge time |
| Power Supply Output | 5 VDC, 2 A, 10 W |
| Power Cord Length | .09" (2.3 mm) OD |
| Mounting | Mounting platform provided for wall mounting |
| Color | Dark Grey (outer edges), Light Grey (inner section, buttons) |
| Dimensions (H x W x D) | 4.3" (109 mm) x 2.0" (52 mm) x 0.75" (18 mm) |
| Weight (with Batteries) | 3.8 oz (108 g) |
| Shipping Weight | 2.0 lbs (0.9 kg) |
